An efficient and reliable lifting solution

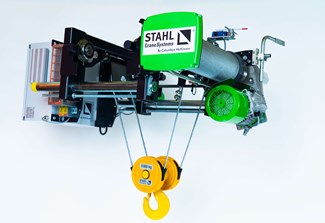

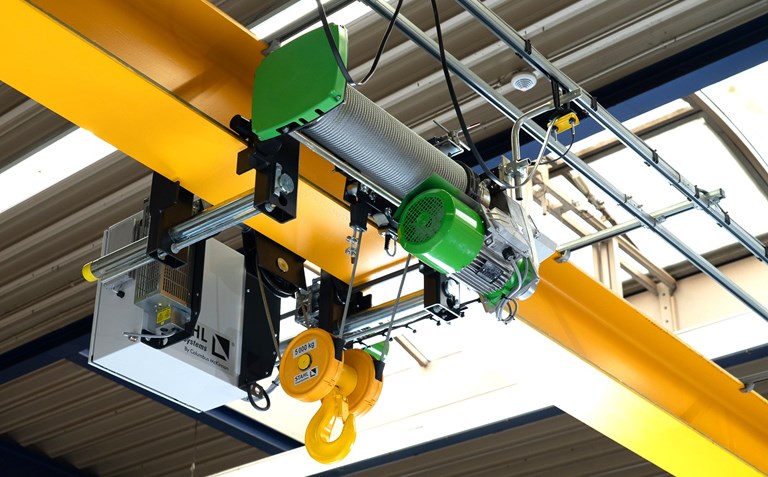

The SXF wire rope hoist is the latest model from STAHL CraneSystems and is specially designed for lifting loads of up to 10,000 kg. It impresses with its clear functionality, simple operation and significantly increased lifting speed.

CONTACT OUR SALESTEAM

SAFE AND RELIABLE

The SXF wire rope hoist from STAHL CraneSystems offers an efficient and reliable lifting solution for standard applications and provides robust technology and precise control. Thanks to its compact design, powerful safety functions and durable components, the SXF wire rope hoist is highly reliable for users, crane manufacturers and plant engineers.
.

FUNCTIONAL AND EFFECTIVE

With a focus on key functions, the SXF wire rope hoist reduces operating costs and maintenance requirements without compromising on tried-and-tested quality. Numerous technical innovations, such as the Dynamic Lift System (DLS) and an optimised frame design, make installation, commissioning and maintenance much easier. The SXF wire rope hoist series is available in all common load capacity ranges, meets industry standards and increases productivity in maintenance work and everyday lifting tasks.

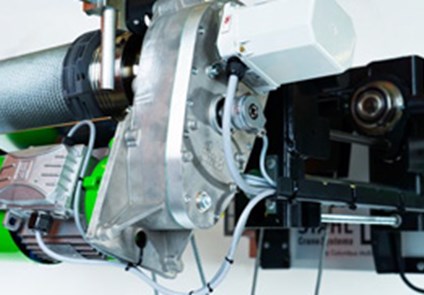

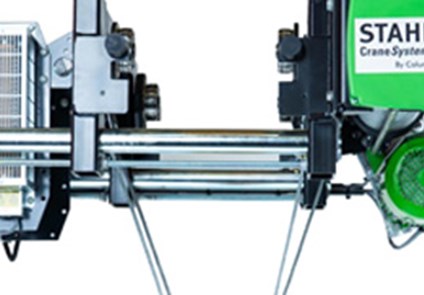

Compact design - optimised drive shaft

The SXF wire rope hoist impresses with its optimised, compact design, which enables quick and easy installation. Thanks to its compact and lightweight construction, the available space is used to its full potential. The optimised drive shaft with adjustable flange area also allows for easy adjustments directly on site. The user-friendly operation reduces training requirements to a minimum and ensures safe operation.

CONTACT OUR SALESTEM

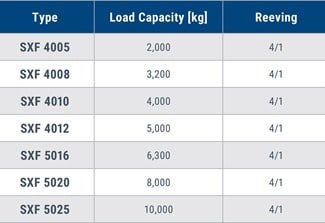

LOAD CAPACITIES AND FACTS

• Load capacity variants from 2,000 to 10,000 kg

• Lifting speeds of up to 9 m/min

• Largely maintenance-free, low wear and long service life

• Very smooth starting and braking characteristics

• Compact design and low application dimensions

• Easy installation and maintenance

• Also available as CraneKit

SAFETY FEATURES

Dynamic Lift System (DLS)

Thanks to the Dynamic Lift System (DLS) with Ultra-Lift, the SXF wire rope hoist offers almost twice the lifting speed at partial load, adapts precisely to the load weight and thus enables accurate, economical load handling with lower mechanical stress.

Safety Brake System

The safety brake system combines continuous speed and load monitoring, adapting continuously and automatically to the conditions. An integrated rotary encoder precisely detects the direction of rotation and speed of the load.

Rope Guide

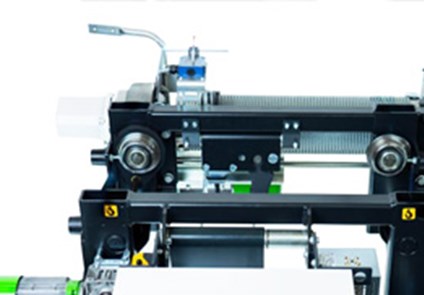

The plastic rope guide reduces friction and protects the rope. The integrated tension spring reliably prevents over-windings and ensures that the rope sits firmly in the drum groove. Simple attachment to the guide rail ensures low maintenance requirements

Finger Protection System

The finger protection system combines maximum safety with optimised rope guidance. The specially developed guide elements reliably ensure that fingers cannot get caught in the hook block or the running rope.

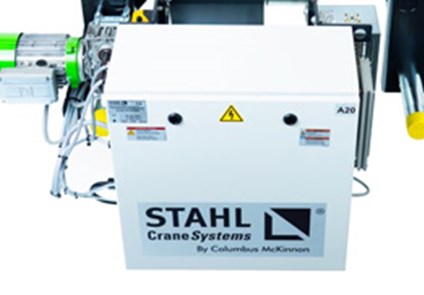

Multicontroller SMC 4

The SMC 4 multicontroller is a safe electronic control and monitoring device for hoists with pole-changing or frequency-controlled drives. In addition, it ensures continuous monitoring of the hoist's status.

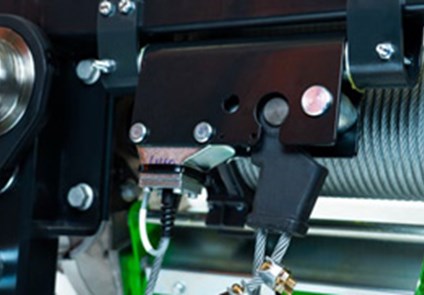

Overload Protection

The integrated overload protection of the SXF wire rope hoist enables permanent electronic monitoring of the attached load. The load is measured precisely at the rope anchorage, ensuring that the permissible load capacity isn't exceeded.

• Simplicity and Reliability

The hoist focuses on providing the essential functions for general load transport in various industries – without complicated settings for numerous functions or options.

• Optimised Design

The hoist is tailor-made for loads up to 10 tonnes and is ideal for standard lifting applications, simple loading and unloading, and manufacturing processes with high speeds but low work cycles.

• Fast Availability

The hoist is equipped with the most common options and can be delivered at short notice thanks to local suppliers, available standard components and widely available raw materials.
