SPA Series - 1,500 lbs
Linear Actuators
VOLTAGE: 115 or 220 VAC (50 or 60 Hz)
SCREW TYPE: Acme Screw
STANDARD STROKE: 3 to 24 in (76 to 610mm)
SPEED: 0.68 to 0.86 in/s (17 to 22 mm/s)
TEMPERATURE RANGE: 25ºF to 120ºF
TUBE RESTRAINING TORQUE: 215 in-lbf
ENVIRONMENTAL RATING: IP66 protection
Features & Benefits
- Versatile Design
Wide range of capacities and voltages for integration into a variety of applications - Durable
Heavy duty design for long life in tough environments - Corrosion resistant housing
- Precise Positioning
Precise and repeatable positioning with internal, adjustable limit switches - Overload Protection
Automatic reset thermal overload motor protection - Resists Back Driving
Mechanical braking system to reduce back driving and stopping distance - Custom Solutions
Available with experienced Application Engineering Team
Specifications
SPA Series Part Numbers and Product Specifications
| Part Number | Voltage | Rated Loads* | Stroke Length | Speed* | Currant Draw | Restraining Toque | Duty Cycle | Screw Type | Capacitor | Limit Switch |
|---|---|---|---|---|---|---|---|---|---|---|
| # | VAC (Hz) | lbs (N) | in (mm) | in/s (mm/s) | A | in-lbs (Nm) | % | Yes/No | Yes/No | |
| SPA 6415* | 115 (60) | 1500 (6672) | 36 (915) | 0.83 (21) | 6.5 | 215 (24.2) | 17 | ACME | Yes | Yes |
| SPA 6420 | 115 (60) | 2000 (8900) | 24 (610) | 0.86 (22) | 5.1 | 180 (20.3) | 17 | BALL | Yes | Yes |
| SPA 7415* | 220 (50) | 1500 (6672) | 36 (915) | 0.68 (17) | 2 | 215 (24.2) | 17 | ACME | Yes | Yes |
| SPA 7420 | 220 (50) | 2000 (8900) | 24 (610) | 0.68 (17) | 2 | 180 (20.3) | 17 | BALL | Yes | Yes |
| SPA 2415* | 230 (60) Three-Phase |
1500 (6672) | 36 (915) | 0.83 (21) | 1.6 | 215 (24.2) | 33 | ACME | Yes | Yes |
| SPA 4415* | 460 (60) Three-Phase |
1500 (6672) | 36 (915) | 0.83 (21) | 0.8 | 215 (24.2) | 33 | ACME | Yes | Yes |
| * At Rated Load | ||||||||||
Models

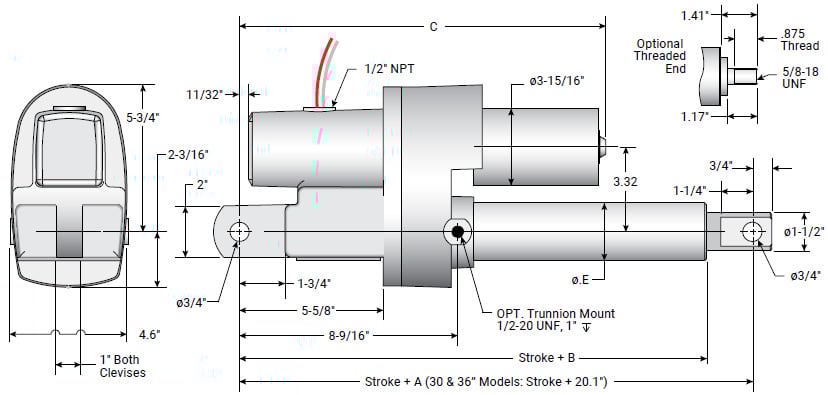

SPA Series 1500 lb. Dimensions
|
|---|

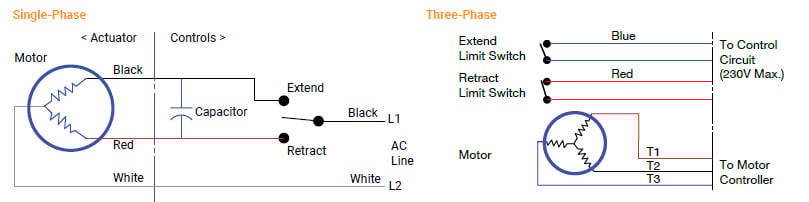

SPA Series 1500 lb. Wiring Diagram |
|---|
