LS Series - 450 to 675 lbs
Linear Actuators
The LS Series 450 to 675 lb. capacity linear actuator with a self-locking ACME screw and internal limit switches is a robust device designed for moderate-to-heavy load applications requiring accurate linear movement and the ability to hold position when unpowered. The self-locking mechanism in ACME screws eliminates the need for external brakes.
Features & Benefits
- Full Capacity
Operate at the full rated capacity in both push and pull applications - Precise Positioning
Adjustable limit Switch for safe and repeatable positioning - Corrosion Resistant
Corrosion resistant housing - No Back Drive
Self-locking ACME screw to prevent back driving - Custom Solutions
Available with our experienced Application Engineering team
Specifications
LS Series 25, 26 & 28 Product Specifications |
||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Part Number | Rated Load | Stroke Length | Retracted Length | Voltage | Current Draw* | Speed | Duty Cycle* | |||
| # | (lbs) N | In | mm | In | mm | Vac | Amp | in/s | mm/s | % |
| LS25-1B5TN-04 | (450) 2000 | 4 | 101 | 11.4 | 290 | 115 |
1.4 |
0.26 | 6.6 | 17% |
| LS25-1B5TN-08 | (450) 2000 | 8 | 203 | 15.4 | 391 | 115 | 1.4 | 0.26 | 6.6 | 17% |
| LS25-1B5TN-12 | (450) 2000 | 12 | 304 | 19.4 | 493 | 115 | 1.4 | 0.26 | 6.6 | 17% |
| LS26-1B5TN-04 | (560) 2491 | 4 | 101 | 11.4 | 290 | 115 | 1.4 | 0.21 | 5.3 | 17% |
| LS26-1B5TN-08 | (560) 2491 | 8 | 203 | 15.4 | 391 | 115 | 1.4 | 0.21 | 5.3 | 17% |
| LS26-1B5TN-12 | (560) 2491 | 12 | 304 | 19.4 | 493 | 115 | 1.4 | 0.21 | 5.3 | 17% |
| LS28-1B5TN-04 | (675) 3002 | 4 | 101 | 11.4 | 290 | 115 | 1.4 | 0.15 | 3.8 | 17% |
| LS28-1B5TN-08 | (675) 3002 | 8 | 203 | 15.4 | 391 | 115 | 1.4 | 0.15 | 3.8 | 17% |
| LS28-1B5TN-12 | (675) 3002 | 12 | 304 | 19.4 | 493 | 115 | 1.4 | 0.15 | 3.8 | 17% |
| * At Rated Load | ||||||||||
LS Series 35 AC Product Specifications |
||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Part Number | Rated Loads | Stroke Length | Retracted Length | Voltage | Current Draw* | Speed | Duty Cycle* | |||
| # | (lbs) N | in | mm | In | mm | VDC | in/s | mm/s | ||
| LS35-3B4TN-12 | (675) 3002 | 12 | 304 | 19.4 | 493 | 12 |
10 |
0.21 | 5.3 | 17% |
| LS35-3B4TN-24 | (675) 3002 | 24 | 609 | 31.4 | 797 | 12 |
10 |
0.21 | 5.3 | 17% |
| LS35-1B4TN-12 | (675) 3002 | 12 | 304 | 19.4 | 493 | 115 | 1.6 | 0.26 | 6.6 | 17% |
| LS35-1B4TN-24 | (675) 3002 | 24 | 609 | 31.4 | 797 | 115 | 1.6 | 0.26 | 6.6 | 17% |
| * At Rated Load | ||||||||||
LS Series 35 DC Product Specifications |
||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Part Number | Rated Loads | Stroke Length | Retracted Length | Voltage | Current Draw* | Speed | Duty Cycle* | |||
| # | lbs | In | mm | In | mm | VDC | Amp | in/s | mm/s | |
| LS35-3B4TN-12 | 675 | 12 | 304 | 19.4 | 493 | 12 VDC |
10 |
0.21 | 5.3 | 17% |
| LS35-3B4TN-24 | 675 | 24 | 609 | 31.4 | 797 | 12 VDC | 10 | 0.21 | 5.3 | 17% |
| LS35-1B4TN-12 | 675 | 12 | 304 | 19.4 | 493 | 115 VAC | 1.6 | 0.26 | 6.6 | 17% |
| LS35-1B4TN-24 | 675 | 24 | 609 | 31.4 | 797 | 115 VAC | 1.6 | 0.26 | 6.6 | 17% |
| * At Rated Load | ||||||||||
LS Series 48 Product Specifications |
||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Part Number | Rated Loads | Stroke Length | Retracted Length | Voltage | Current Draw* | Speed | Duty Cycle* | |||
| # | (lbs) N | in | mm | in | mm | VAC | Amp | in/s | mm/s | % |
| LS48-S001 | (660) 2935 | 24 | 609 | 38.8 | 984 | 115 |
1.4 |
0.15 | 3.8 | 17% |
| * At Rated Load | ||||||||||
Models
LS Series Models

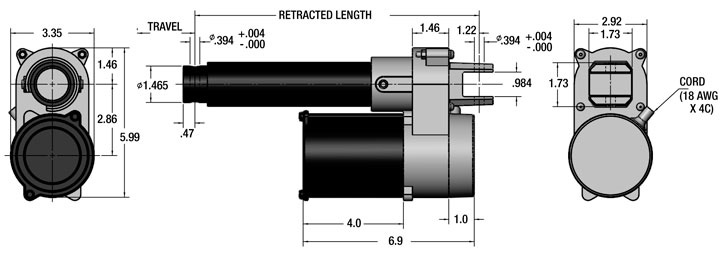

LS Series 25, 26 & 28 Dimensions |
|---|

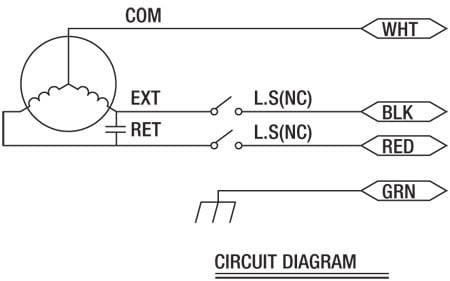

LS Series 25, 26 & 28 Wiring Diagram |
|---|

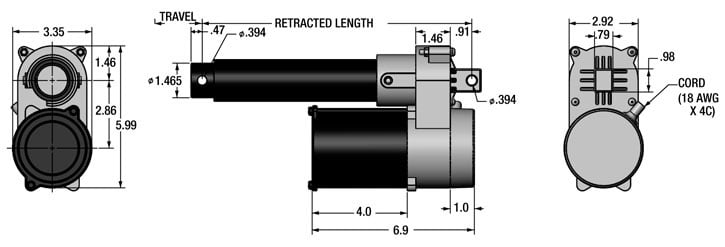

LS Series 35 AC Dimensions |
|---|
LS Series 35 AC Wiring Diagram |
|---|

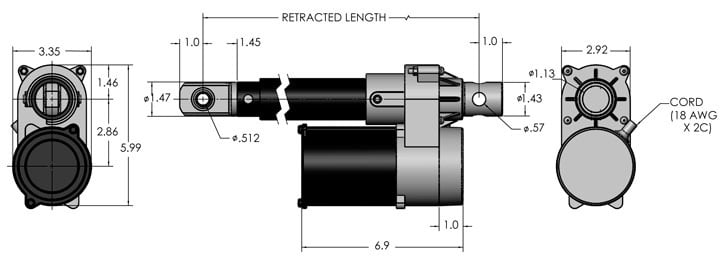

LS Series 35 DC Dimensions |
|---|

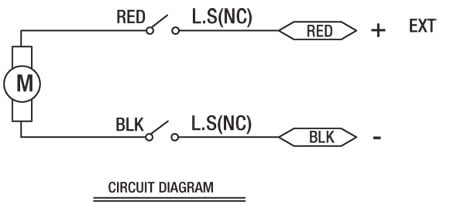

LS Series 35 DC Wiring Diagram |
|---|

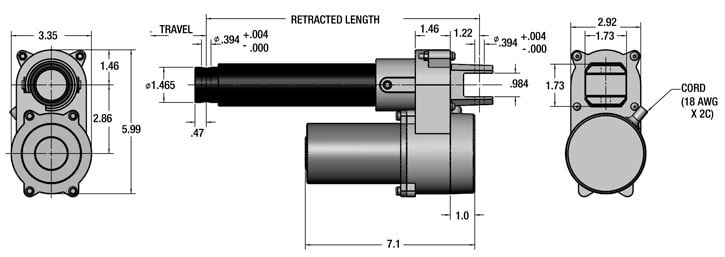

LS Series 48 Dimensions |
|---|

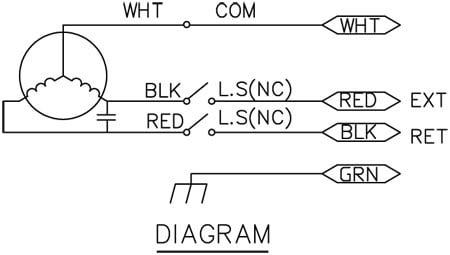

LS Series 48 Wiring Diagram |
|---|
