Elevator | Power & Motion Technology | By Samantha Lotz | Aug 24, 2015
SmartRise Engineering, Inc., a state-of-the-art, non-proprietary elevator control manufacturer, was in need of a suitable drive solution to power the machine room-less (MRL) elevators being modernized in three buildings across the United States. The elevators in each of the three buildings had been modernized with new SmartRise controllers and third party replacement drives. While the SmartRise controllers were operating effectively, the replacement drives and their associated software created elevator performance problems, inconveniencing residents and necessitating repetitive maintenance. SmartRise chose to update the drives with Magnetek’s HPV 900 Axial Flux Permanent Magnet AC Motor Drives at each of the sites, which provided considerable performance, serviceability, and cost improvements.
The Problem Sites

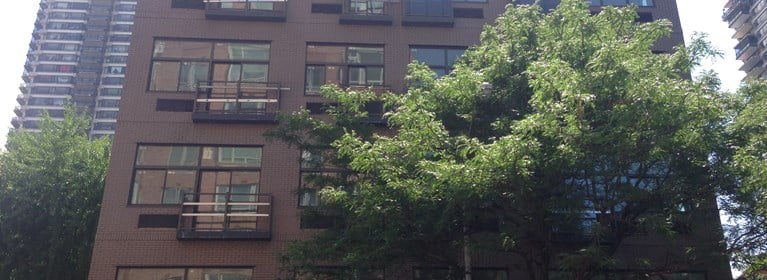

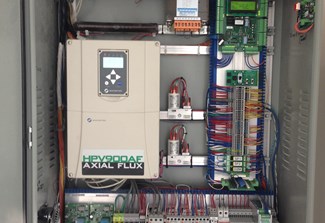

Due to extensive flooding as a result of Hurricane Sandy, a six-story apartment complex in New Jersey required a system upgrade. Original drive equipment was expensive to maintain and routinely experienced problematic faults. Each time a drive fault occurred, the elevators would stop and restart abruptly, causing significant ride discomfort. Additionally, the elevators would remain nonfunctioning, sometimes for several hours, until a service company reset the drive. Magnetek’s HPV 900AF drive, with its integrated digital operator, along with the SmartRise controller, were simple to install and integrate, immediately improving ride quality. Since integration of the HPV 900AF drive, there have been no reported faults.
A second building, which housed residential condos in Florida, experienced similar issues. Existing elevator drives were not designed to properly function with the available type of elevator motor, causing faults similar to the New Jersey building and even passenger entrapments. Installation of the HPV 900AF drive and SmartRise controller reduced costs and maintenance time, eliminating the need for an expensive service contract. It also minimized the elevators’ downtime. Magnetek’s HPV 900AF drive eliminated the numerous resets and service company visits associated with the previous drive installation.
Since installation, performance, and cost improvements had been achieved so easily in the previous two buildings, SmartRise was able to follow an established process to install the HPV 900AF drive in a third building, resulting in similar success. Located in Texas, the building had experienced drive faults that required multiple maintenance visits from a service company. Having gained experience from the prior two modernization sites, SmartRise was able to remove the existing drive and replace it with the Magnetek HPV 900AF drive. The result was a dramatic improvement in performance and reliability. Because of its simple installation, optimal performance, and efficient operation, SmartRise went on to install Magnetek’s HPV 900AF in buildings located in New York and New Mexico, and intends to use the drive in future projects.
New York City, NY
Magnetek Elevator's installation of Quattro AC drives into the 285 Madison Avenue elevator systems has resulted in faster floor-to-floor times, improved responsiveness, and qualification for gold-level LEED certification, along with additional energy-efficiency building credits. Magnetek green elevator drives contribute to more efficient operations, matching the modern, streamlined design of the building. Full structural renovations were completed in early 2015, featuring a convenient direct-to-roof elevator for tenant access to the beautiful rooftop lounge.
Magnetek visited the UK installation site of our HPV 900AF axial flux drive during the final commissioning process of a four-floor elevator control system at Priestley Wharf. Installed in 1997, the original control system suffered various failures and was eventually decommissioned due to high costs for spare parts. Concept Elevators sought to replace the poorly functioning control system and chose to utilize Magnetek HPV 900AF drive as a more cost-effective, quality alternative.
