There are standard contactor controls available for all common control voltages for crane systems with components from STAHL CraneSystems. In their basic version, the components are supplied with plug connections as far as this is technically possible and meets requirements. The standard equipment can be supplemented individually with various control and monitoring components as well as optional frequency inverters for hoists and travel drives to suit your specific application. This equipment will increase safety in material handling and lengthen the service life of the system.

Features and Benefits


Cable power supply:

Supplied complete with galvanized C-rail, mounting accessories, boom arms for tapping, cable trolleys, cables and terminal box

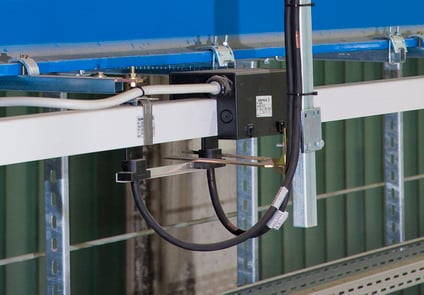

Plastic conductor line:

Supplied completely in straight sections, including mounting and connection accessories, boom arms, pantograph trolleys

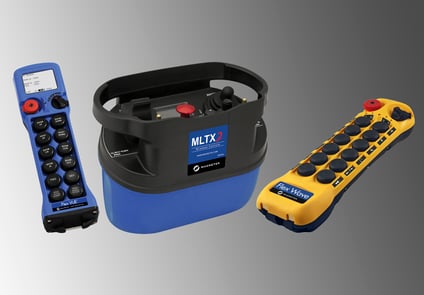

Radio remote control units

Optional battery chargers with standard batteries, robust, fiber-reinforced plastic housings, protection class IP66, frequency ranges 433, 863 or 2,400 kHz.

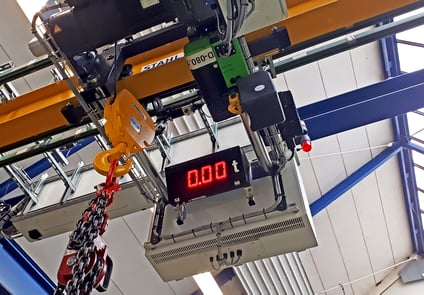

Load indicator

Four-digit 7-segment load indicator SLD, large-format, red luminous, various interfaces (including CAN) available, 100 or 150 mm digit height selectable.


Frequency converters for "lifting" and "driving"

Smooth start-up and braking behaviour, greatly reduced load oscillation, fast, precise positioning of the load, hardly any correction circuits, worldwide approvals of all frequency converters.


Automatic controller

Robust control unit with EMERGENCY STOP push button and control cable, switching elements for lifting, trolley driving and crane driving always two-stage, protection class IP65.


The Crane Technology



Languages: german

Size: 21 x 25 cm

Pages: 32 pages (4 colours)
