Modular -Translating Machine Screw

Modular Actuators

Modular Actuator - Translating Machine Screw Photo
Modular Actuator - Translating Machine Screw Photo

Modular actuators can be easily adapted to different applications by combining or modifying modules. They can be scaled up or down to meet specific force and speed requirements, making them suitable for a wide range of applications. Individual modules can be replaced or repaired without affecting the entire system, reducing downtime.

Modular Actuator Product Sheet Linear Actuator Design Guide

Features and Benefits

FEATURES AND BENEFITS

The outer aluminum tube is corrosion-resistant protecting the translating tube and the lifting screw and nut

Furnished with standard clevis end on translating tube. A threaded end is available as a special order depending on the application. Any type of threaded connection may be substituted

The wiper-scraper seal located in the end of the outer tube keeps dirt out and lubricants in

The translating tube is zinc coated for weather-resistance

A bronze guide bushing inside of the outer tube reduces lateral movement of the translating screw

Single or double lead lifting screw and nut for high efficiency and long wear

A vent located in the outer tube prevents pressure build-up in the actuator

Specifications

Translating Machine Screw Specifications
          Rated Loads
Model Number T Screw Diameter Turns of Worm 1 in. Travel Torque lb./in. at 1000 lb. Loads Motor 1/3 HP Motor 1/2 HP Motor 3/4 HP Motor Lifting Speed inch/minute
#   5:1 Ratio 20:1 Ratio 5:1 Ratio 20:1 Ratio RPM 5:1 Ratio 20:1 Ratio 5:1 Ratio 20:1 Ratio 5:1 Ratio 20:1 Ratio 5:1 Ratio 20:1 Ratio
M-2464 0.875 Dia. Acme
0.25 Pitch
RH Double		 10 40 39 18 1725 300 700 500 1000 700 1500 170 43
M-2464 0.875 Dia. Acme
0.25 Pitch
RH Double		 10 40 39 18 1140 450 1000 700 1500 1100 2000 114 28
M-2465 1.0 Dia. Acme
0.25 Pitch
RH Single		 20 80 29 14 1725 400 900 600 1400 900 2000 86 21
M-2465 1.0 Dia. Acme
0.25 Pitch
RH Single		 20 80 29 14 1140 600 1400 900 2000 1400 2000 57 14

Notes:
1. Model M-2464 is self lowering and a motor brake should be used.
2. Model M-2465 may drift 0.75 in (20:1 ratio) to 2.0 in (5:1 ratio) when motor is shut off. If this is undesirable, a motor brake should be employed.
3. When ordering other than 56C-face actuators contact applications engineering at 800-477-5002.

Models

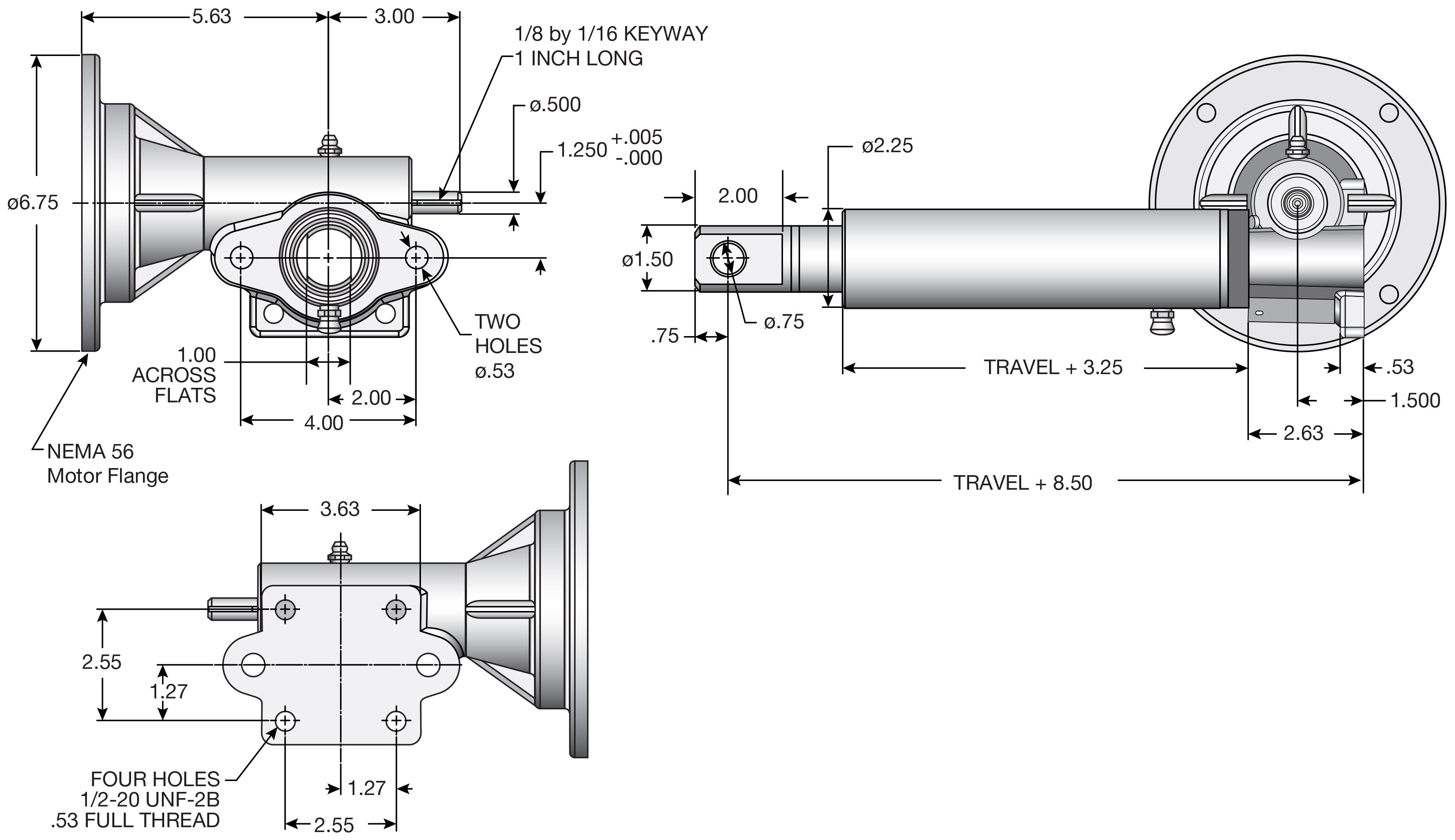

Translating Machine Screw Dimensions
