Discover the Power of IP66 Linear Actuators
Understanding the IP66 Rating
An IP66 rating guarantees exceptional protection for actuators against dust and high-pressure water jets. This certification means the actuator is completely dust-tight and safeguards against severe water intrusion, making it a dependable choice for rigorous industrial applications.
Our Premium IP66 Rated Linear Actuators
Columbus McKinnon proudly presents our elite selection of linear actuators, featuring the MPB, SPB, SPA and XT series. Each is engineered to thrive in demanding conditions, offering IP66 rated protection - a testament to their durability and superior performance.
Addressing Industrial Needs with Precision
In harsh industrial settings, the presence of dust and water can cause equipment failure and costly downtime. Our Duff-Norton brand IP66 linear actuators combat these challenges effectively, offering:
- Long-lasting Reliability: Robust construction ensures enduring performance, even in the toughest conditions.
- Dust-tight Design: Absolute sealing against all forms of solid particles.
- Superior Water Resistance: Comprehensive protection against water ingress, safeguarding against various forms of moisture damage.
 |
Get Exceptional Protection
|
Compare and Contrast: Our IP66 Actuator Lineup
|
Product Line |
Rating |
Voltage |
Stroke Length (mm) |
Speed (in/sec) |
Temperature Rating |
Features |
Ideal Applications |
|

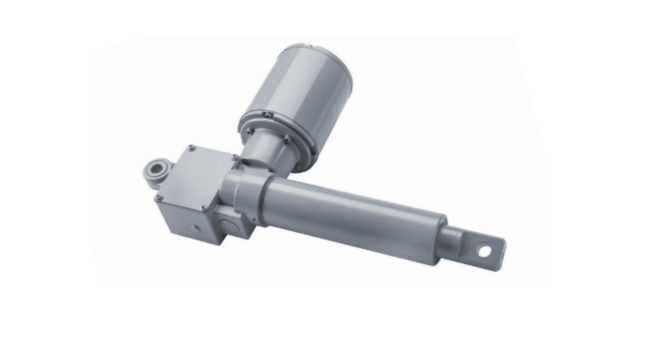

MPB |
IP66 |
115 or 220 VAC (60 Hz) |
76, 152, 304, 457 |
Up to 1.4 (35 mm/s) |
25 to 120 °F (-4 to 50 °C) |
Steel, Zinc Chromate Plated; Potentiometer; Capacitor; Capacitor Enclosure |
Heavy-duty industrial environments requiring AC actuators |
|

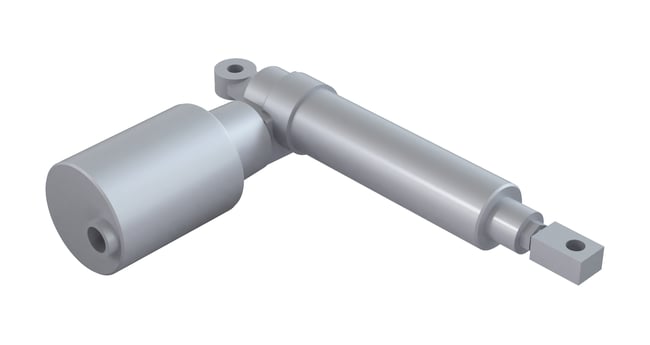

SPB |
IP66 |
115 or 220 VAC (60 Hz) |
76, 152, 304, 457 |
Up to 1.4 (35 mm/s) |
25 to 120 °F (-4 to 50 °C) |
Steel, Zinc Chromate Plated; Capacitor; Capacitor Enclosure |
Applications needing AC actuators with clutch protection |
|

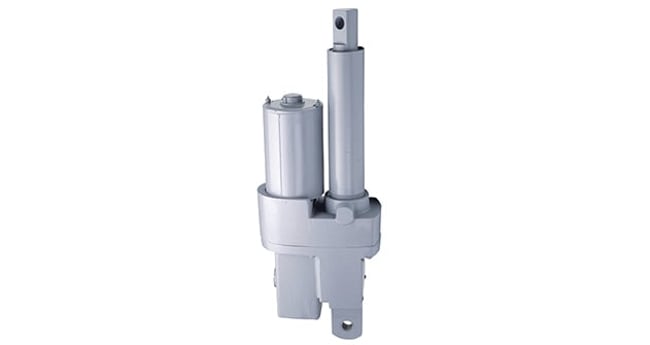

SPA |
IP66 |
115 or 220 VAC (60 Hz) |
Various up to 915 |
Up to 0.83s |
15 to 120 °F (-10 to 50 °C) |
Steel, Zinc Chromate Plated; Potentiometer; Bellows Boot |
Large stroke, high-load industrial uses |
|

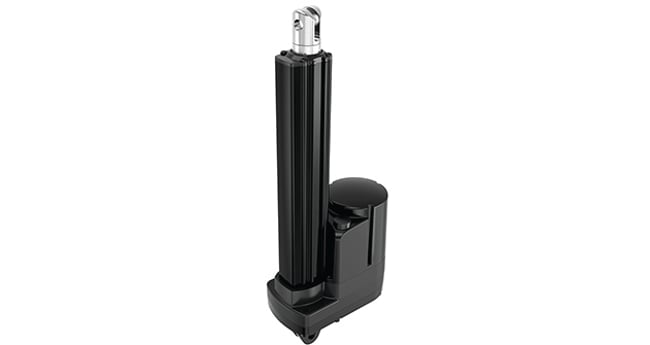

XT |
IP66 |
24 VDC |
150, 300, 450, 600 |
Up to 0.88 |
-13 to 150°C (9 to 302°F) |
Corrosion-Resistant Aluminum, Potentiometer |
Outdoor or harsh environments requiring corrosion resistance |
Select the Ideal Actuator for Your Needs
Discover the perfect IP66 linear actuator for your project:
Ideal for heavy-duty industrial environments requiring AC actuators, with potentiometer feedback for precise control.
Perfect for applications needing AC actuators with clutch protection.
Stands out in corrosive environments, maintaining functionality without compromise.
