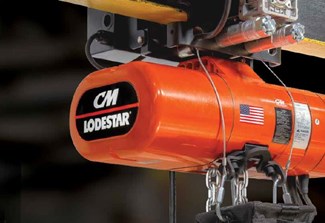

Lodestar XL Electric Chain Hoist

The CM Lodestar XL Electric Chain Hoists features a heavy-duty design with faster speeds, less reeving, and higher capacities than traditional hoists.

Standard Configurations

Lift (ft): 10
Max Lifting Speed (ft/min): 18
Reeving: 1

Consult Factory for Additional Options
View Specifications

Documents

Brochure
Browse All Documents

Need Assistance?

Not sure if this is the right product for your application, or need a custom solution? Contact us today for help from an expert.

Features and Benefits

  • Lifting capacities up to 71⁄2 tons
  • Increased lifting speeds throughout the line
  • Double reeved units with 3-5 ton lifting capacities
  • Maximum lifting speed of 30 feet per minute
  • Heavy-duty, multiple disc braking system
  • Forged ten-pocket oblique-lay liftwheel for smooth chain operation, constant chain speed, and reduced chain wear
  • Gearing operated in oil bath for increased lifting life and quiet operation
  • Rated H-4, heavy-duty
  • Standard overload protector
  • Screw-type limit switches
  • Thermally protected motor
  • Factory tested at 125% of rated capacity
  • Made in U.S.A
  • Lifetime warranty

Setting the Standard in Overhead Lifting

The CM Lodestar has been trusted for generations in the material handling industry. Designed for durability and reliability with safety in mind, the CM Lodestar sets the standard for overhead lifting.

FEATURES AND BENEFITS

Lodestar XL Electric Chain Hoist

Standard Features

Lifting capacities up to 7-1/2 tons. Double reeved units with 3-5 ton lifting capacities. Maximum lifting speed of 30 feet per minute.

Long Life and Smooth Operation

Forged ten-pocket oblique-lay liftwheel for smooth chain operation, constant chain speed, and reduced chain wear. Gearing operated in oil bath for increased lifting life and quiet operation.

Designed with Safety in Mind

Heavy-duty, multiple disc braking system. Rated H-4, heavy-duty. Standard overload protector. Screw-type limit switches. Thermally protected motor. Factory tested at 125% of rated capacity. Made in U.S.A.

Specifications

Model Number Hoist Model Lift (ft) Operating Voltage Rated Lift Capacity Reeving
C5201 10 1
C5202
C5203
C5207
C5208
C5209
C5213
C5214
C5215
C5219
C5220
C5221
C5225
C5226
C5227
C5283
C5285

Documents

Brochures & Catalogs

[Brochure] CM Lodestar XL Brochure [Brochure] Electric Chain Hoist Comparison Chart

Manuals & Supplements

[Technical Manuals] 192106941 Lodestar XL Manual Supplement Rev AA
