Unified Vertical Reaction Lifter

Material Handling Solutions

Vertical Reaction Lifter Photo
Vertical Reaction Lifter Photo
The Unified Vertical Reaction Lifter UT1 Series is a perfect solution for high torque, offset loads and heavy lifting. When paired with a standard mounting carriage, these vertical reaction lifters allow the operator to precisely and effortlessly position your material handling or torquing application.
Unified Vertical Reaction Lifter Brochure Unified Vertical Reaction Lifter Brochure - Spanish

Features and Benefits

CAPACITIES

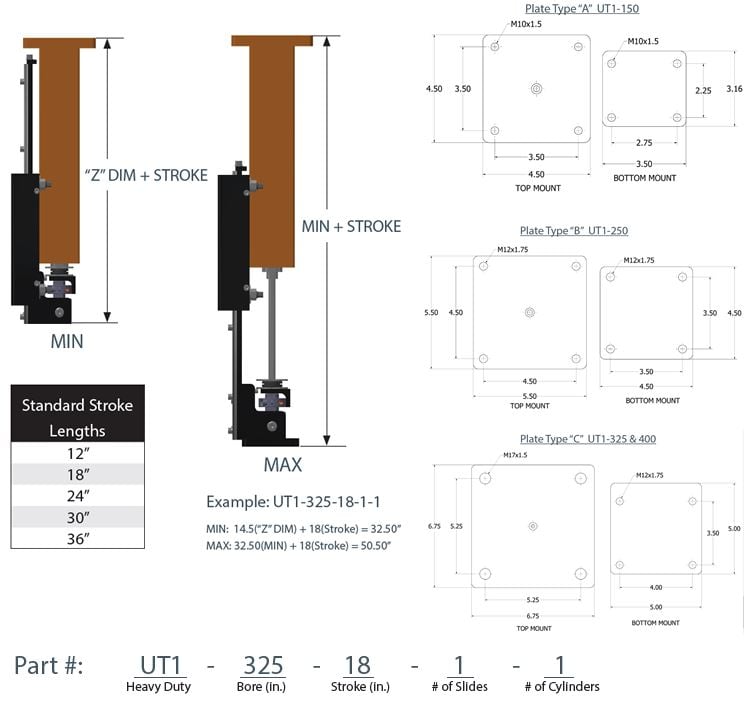

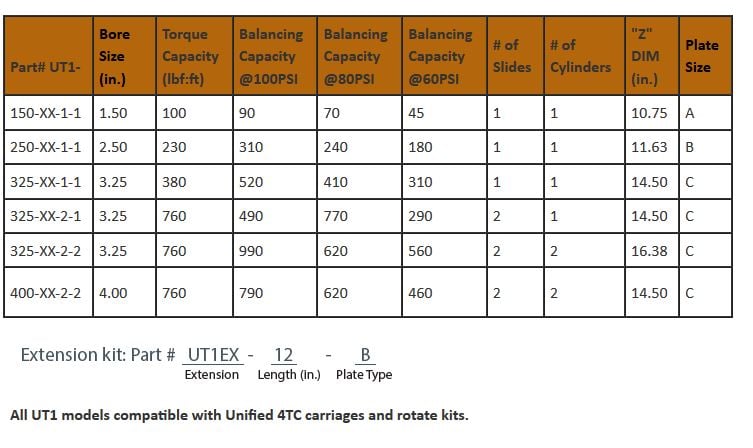

Lifts up to 1,000 lbs (@100 PSI). •Torque up to 760 ft-lbs. •Standard stroke lengths from 12" up to 36" (Other strokes available, consult factory for more details).

SPECIFICATIONS

Durable powder-coat finish. •Welded Steel construction. •Eliminates the need for shifting C.G. • Upgradeable configurations for future changes. •Multiple stroke options. •Internal cylinder to reduce footprint. •Sealed steel rollers. •Hardened steel track for smooth operation. •Rubber shock dampener.
