Unified Pneumatic Cable Balancers

A proven ergonomic lifitng & positioning device

• Robust precision mechanical design & powder coated housing ensures trouble free extended service life.
• Safety overload limit and check valve in case of loss of air supply.
• Capacities up to 485 lbs. single reeve - 1940 lbs. double reeve.
• Energy efficient – only a fraction of a CFM per cycle required when compared to a pneumatic hoist.
• Use of non-lubricated air, assures clean environment.
• Ideal for ergonomic handling applications and suspension of tools, weld guns & fixtures.
• All Non-Reeved balancers come equipped with 9 meter cable.

Select Control Style
UBB = Basic Balancer with no controls
UAB = Balancer with up/down controls
UZB = Balancer with Zero G

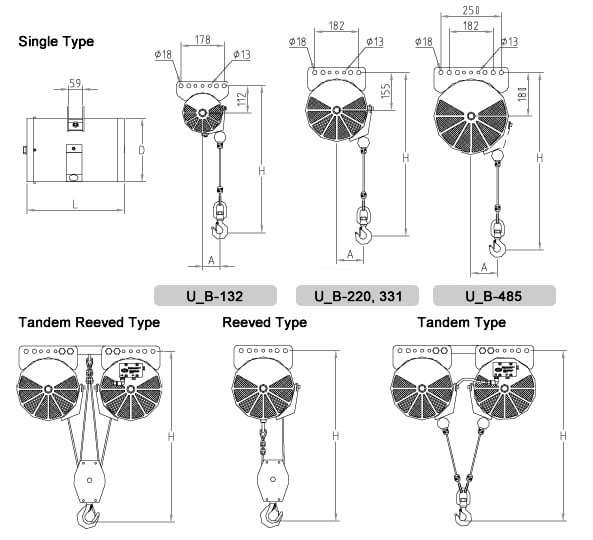

Specifications

• Single Wire Rope Units (Air Pressure 7kgf/cm2) (100 PSI)

Note: Balance and lifting capacity is determined by air pressure

Balance Capacity Example: A 485LB balancer can be used to balance a 485LB load at 100 psi.  The balance capacity is less for air pressures below 100 psi.  For example, the balance capacity of a 485LB balancer at 65 psi 485LB x 0.65 = 315LB

Lifting Capacity Example: The lifting capacity of a balancer is calculated by multiplying the balance capacity by 80%.  For example, the lifting capacity of a 331LB balancer at 100 psi is 331LB x 0.80 = 265LB.  The lifting capacity of a 331LB balancer at 65 psi is 331LB x 0.65 x 0.80 = 172LB.

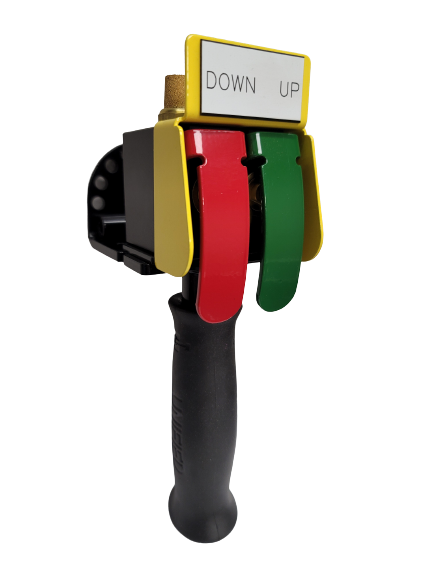

The Unified Up/Down 2-Button handle - an excellent choice for balancer applications

Unified Part # 79628

More precise load positioning control. Optimal thumb position and low lever push force. Standard guards prevent operator from accidentally depressing the lever buttons. Soft grip ergonomic handle. Up to 30% faster than comparable handles.

• Tandem & Reeve Type Wire Rope Units (Air Pressure 7kgf/cm2) (100 PSI)
