Unified Air Festooning Kit

Unified Runway Coiled Hose Festoon Kit

Pre-assembled kit, Supports air hose routing, Includes trolleys, hose and hardware

Need Assistance?

Not sure if this is the right product for your application, or need a custom solution? Contact us today for help from an expert.

Features and Benefits

Complete Kit for Easy Installation
Includes two blue whip hoses, a blue coiled hose, two ETA festoon brackets, and a 1/4" nylon-coated cable assembly. Everything you need in one package simplifies setup and reduces installation time.
Durable, High-Quality Components
Industrial-grade hoses and coated cable designed for long-term use in demanding environments. Minimizes maintenance and downtime, ensuring reliable performance over time.
Flexible Length and Diameter Options
Available in multiple lengths (from 5' to 100') and hose diameters (1/2" and 3/4"). Easily customizable to fit a wide range of crane system configurations and workspace needs.
Organized Air Line Management
Coiled hose and festoon brackets keep air lines neatly routed along the crane track. Reduces wear and tear on hoses, improves safety, and enhances system efficiency.
Compatible with Enclosed Track Systems
Specifically designed for use with Unified enclosed track rail crane systems. Ensures seamless integration and optimal performance within your existing setup.

FR Assembly (Filter-Regulator) Helps maintain clean and regulated air flow to pneumatic tools or equipment. Extends the life of air-powered devices and ensures consistent performance.
FRL Assembly (Filter-Regulator-Lubricator) Adds lubrication to the air stream in addition to filtering and regulating. Ideal for applications requiring lubricated air to reduce wear on moving parts.
Lockout Assembly Provides a safety mechanism to isolate the air supply during maintenance or downtime. Enhances workplace safety and complies with lockout/tagout procedures.
Air Hose Connector Bracket Provides a secure mounting point for connecting air hoses. Simplifies hose management and reduces strain on connections.

Air Festooning Kits

Runway Kits:	Bridge Kits:
Coiled Hose \| Flex Hose \| Tag Line	Coiled Hose \| Flex Hose \| Tag Line

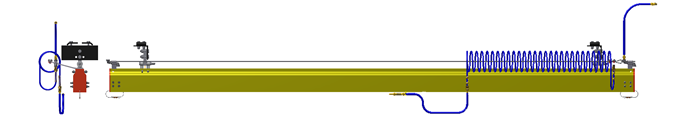

Runway Coiled Hose Festoon Kit

Features
Two Blue Whip Hoses Blue Coiled Hose Two ETA Festoon Brackets 1/4" Nylon Coated Cable Assembly

Part Numbers
29105 - 05 ft. - 1/2 in. Runway Air Festoon Kit	29205 - 05 ft. - 3/4 in. Runway Air Festoon Kit
29110 - 10 ft. - 1/2 in. Runway Air Festoon Kit	29210 - 10 ft. - 3/4 in. Runway Air Festoon Kit
29115 - 15 ft. - 1/2 in. Runway Air Festoon Kit	29215 - 15 ft. - 3/4 in. Runway Air Festoon Kit
29120 - 20 ft. - 1/2 in. Runway Air Festoon Kit	29220 - 20 ft. - 3/4 in. Runway Air Festoon Kit
29125 - 25 ft. - 1/2 in. Runway Air Festoon Kit	29225 - 25 ft. - 3/4 in. Runway Air Festoon Kit
29130 - 30 ft. - 1/2 in. Runway Air Festoon Kit	29230 - 30 ft. - 3/4 in. Runway Air Festoon Kit
29135 - 35 ft. - 1/2 in. Runway Air Festoon Kit	29235 - 35 ft. - 3/4 in. Runway Air Festoon Kit
29140 - 40 ft. - 1/2 in. Runway Air Festoon Kit	29240 - 40 ft. - 3/4 in. Runway Air Festoon Kit
29145 - 45 ft. - 1/2 in. Runway Air Festoon Kit	29245 - 45 ft. - 3/4 in. Runway Air Festoon Kit
29150 - 50 ft. - /2 in. Runway Air Festoon Kit	29250 - 50 ft. - 3/4 in.Runway Air Festoon Kit
29155 - 55 ft. - 1/2 in. Runway Air Festoon Kit	29255 - 55 ft. - 3/4 in. Runway Air Festoon Kit
29160 - 60 ft. - 1/2 in. Runway Air Festoon Kit	29260 - 60 ft. - 3/4 in. Runway Air Festoon Kit
29165 - 65 ft. - 1/2 in. Runway Air Festoon Kit	29265 - 65 ft. - 3/4 in. Runway Air Festoon Kit
29170 - 70 ft. - 1/2 in. Runway Air Festoon Kit	29270 - 70 ft. - 3/4 in. Runway Air Festoon Kit
29175 - 75 ft. - 1/2 in. Runway Air Festoon Kit	29275 - 75 ft. - 3/4 in. Runway Air Festoon Kit
29180 - 80 ft. - 1/2 in. Runway Air Festoon Kit	29280 - 80 ft. - 3/4 in. Runway Air Festoon Kit
29185 - 85 ft. - 1/2 in. Runway Air Festoon Kit	29285 - 85 ft. - 3/4in. Runway Air Festoon Kit
29190 - 90 ft. - 1/2 in. Runway Air Festoon Kit	29290 - 90 ft. - 3/4 in. Runway Air Festoon Kit
29195 - 95 ft. - 1/2 in. Runway Air Festoon Kit	29295 - 95 ft. - 3/4 in. Runway Air Festoon Kit
29200 - 100 ft. - 1/2 in. Runway Air Festoon Kit	29300 - 100 ft. - 3/4 in. Runway Air Festoon Kit

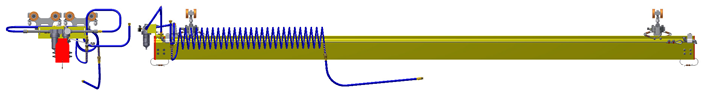

Bridge Coiled Hose Festoon Kit

Features	Options
Two Blue Whipe Hoses Blue Coiled Hose Two ETA Festoon Brackets One Air Hose Connector Bracket 1/4" Nylon Coated Cable with Hardware	FR Assembly FRL Assembly Lockout

Part Numbers
29310 - 10 ft. - 1/2 in. Bridge Air Festoon Kit	29410 - 10 ft. - 3/4 in. Bridge Air Festoon Kit
29315 - 15 ft. - 1/2 in. Bridge Air Festoon Kit	29415 - 15 ft. - 3/4 in. Bridge Air Festoon Kit
29320 - 20 ft. - 1/2 in. Bridge Air Festoon Kit	29420 - 20 ft. - 3/4 in. Bridge Air Festoon Kit
29325 - 25 ft. - 1/2 in. Bridge Air Festoon Kit	29425 - 25 ft. - 3/4 in. Bridge Air Festoon Kit
29330 - 30 ft. - 1/2 in. Bridge Air Festoon Kit	29430 - 30 ft. - 3/4 in. Bridge Air Festoon Kit
29335 - 35 ft. - 1/2 in. Bridge Air Festoon Kit	29435 - 35 ft. - 3/4 in. Bridge Air Festoon Kit
29340 - 40 ft. - 1/2 in. Bridge Air Festoon Kit	29440 - 40 ft. - 3/4 in. Bridge Air Festoon Kit

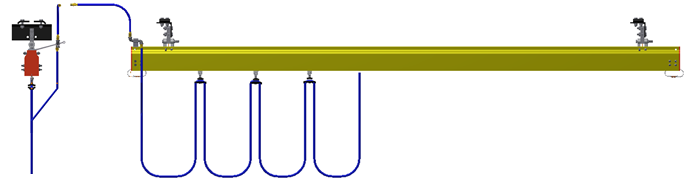

Runway Flex Hose Trolley Kit

Features
(1) 1/2 in. Blue Whip Hose 1/2 in. Blue Flex Hose (1) ETA Festoon Bracket Festoon Trolleys with Small Saddle

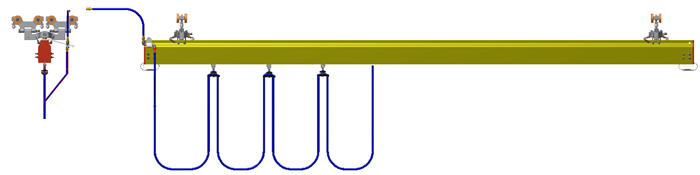

Bridge Flex Hose Trolley Kit
Part Numbers

Features
1/2 in. Blue Flex Hose (1) ETA Festoon Bracket Festoon Trolleys with Small Saddle

Operates in ETA-4/5 Bridge Rail	*Operates in ETA-8 Bridge Rail*
Part Numbers
29805 - 05 ft. - 1/2 in. Br. Air Hose Trolley Kit	26605 - 05 ft. - 1/2 in. Br. Air Hose Trolley Kit
29810 - 10 ft. - 1/2 in. Br. Air Hose Trolley Kit	26610 - 10 ft. - 1/2 in. Br. Air Hose Trolley Kit
29815 - 15 ft. - 1/2 in. Br. Air Hose Trolley Kit	26615 - 15 ft. - 1/2 in. Br. Air Hose Trolley Kit
29820 - 20 ft. - 1/2 in. Br. Air Hose Trolley Kit	26620 - 20 ft. - 1/2 in. Br. Air Hose Trolley Kit
29825 - 25 ft. - 1/2 in. Br. Air Hose Trolley Kit	26625 - 25 ft. - 1/2 in. Br. Air Hose Trolley Kit
29830 - 30 ft. - 1/2 in. Br. Air Hose Trolley Kit	26630 - 30 ft. - 1/2 in. Br. Air Hose Trolley Kit
29835 - 35 ft. - 1/2 in. Br. Air Hose Trolley Kit	29835 - 35 ft. - 1/2 in. Br. Air Hose Trolley Kit
29840 - 40 ft. - 1/2 in. Br. Air Hose Trolley Kit	29840 - 40 ft. - 1/2 in. Br. Air Hose Trolley Kit

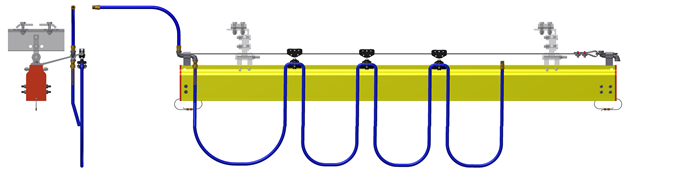

Runway Air Tag Line Kit

Features
(1) 1/2 in. Blue Whip Hose 1/2 in. Blue Flex Hose Coated Cable and Hardware (2) ETA Festoon Brackets Cable Trolleys with Small Saddle

Operates with ETA-4/5/8 Runway Rail

Part Numbers

26705 - 05 ft. - 1/2 in. Runway Air Tag Line Kit

26710 - 10 ft. - 1/2 in. Runway Air Tag Line Kit

26740 - 40 ft. - 1/2 in. Runway Air Tag Line Kit

26745 - 45 ft. - 1/2 in. Runway Air Tag Line Kit

26750 - 50 ft. - 1/2 in. Runway Air Tag Line Kit

26755 - 55 ft. - 1/2 in. Runway Air Tag Line Kit

26760 - 60 ft. - 1/2 in. Runway Air Tag Line Kit

26765 - 65 ft. - 1/2 in. Runway Air Tag Line Kit

26770 - 70 ft. - 1/2 in. Runway Air Tag Line Kit

26775 - 75 ft. - 1/2 in. Runway Air Tag Line Kit

26780 - 80 ft. - 1/2 in. Runway Air Tag Line Kit

26785 - 85 ft. - 1/2 in. Runway Air Tag Line Kit

26790 - 90 ft. - 1/2 in. Runway Air Tag Line Kit

26795 - 95 ft. - 1/2 in. Runway Air Tag Line Kit

26800 - 100 ft. - 1/2 in. Runway Air Tag Line Kit

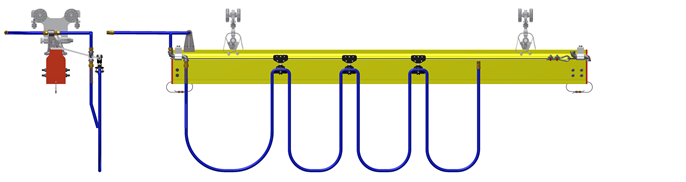

Bridge Air Tag Line Kit

Features
(1) 1/2 in. Blue Whip Hose 1/2 in. Blue Flex Hose Coated Cable and Hardware (2) ETA Festoon Brackets (1) Air Connector Bracket Cable Trolleys with Small Saddle

*Operates with ETA-4 Bridge Rail*	*Operates with ETA-5/8 Bridge Rail*
Part Numbers
26805 - 05 ft. - 1/2 in. Bridge Tag Line Kit	26905 - 05 ft. - 1/2 in. Bridge Tag Line Kit
26810 - 10 ft. - 1/2 in. Bridge Tag Line Kit	26910 - 10 ft. - 1/2 in. Bridge Tag Line Kit
26815 - 15 ft. - 1/2 in. Bridge Tag Line Kit	26915 - 15 ft. - 1/2 in. Bridge Tag Line Kit
26820 - 20 ft. - 1/2 in. Bridge Tag Line Kit	26920 - 20 ft. - 1/2 in. Bridge Tag Line Kit
26825 - 25 ft. - 1/2 in. Bridge Tag Line Kit	26925 - 25 ft. - 1/2 in. Bridge Tag Line Kit
26830 - 30 ft. - 1/2 in. Bridge Tag Line Kit	26930 - 30 ft. - 1/2 in. Bridge Tag Line Kit
26835 - 35 ft. - 1/2 in. Bridge Tag Line Kit	26935 - 35 ft. - 1/2 in. Bridge Tag Line Kit
26840 - 40 ft. - 1/2 in. Bridge Tag Line Kit	26940 - 40 ft. - 1/2 in. Bridge Tag Line Kit

Air Festooning FAQ

What are the pressure and temperature ratings for the air hoses?

The coiled and whip hoses are rated for standard industrial pneumatic applications, typically supporting pressures up to 150 PSI and operating temperatures between -40°F and 150°F. Always verify compatibility with your system’s air supply specifications.

How does the festooning system accommodate dynamic movement along the crane track?

The kit uses a nylon-coated cable and festoon trolleys that allow the coiled hose to travel smoothly with the bridge or trolley motion. This design minimizes hose stress and ensures consistent air delivery during crane operation.

Can the system be integrated with existing FR or FRL units?

Yes. The kit can be paired with optional FR or FRL assemblies for air quality control. These units can be mounted inline or at the air source, depending on your system layout and maintenance preferences.

What are the mounting requirements for the festoon brackets?

The included ETA festoon brackets are designed for quick attachment to Unified enclosed track systems. They require minimal clearance and can be spaced according to hose sag and travel distance requirements, typically every 5 to 10 feet.
