ETA-8 End Trucks

Browse Unified ETA-8 compatible End Trucks

Unified Factory Hero

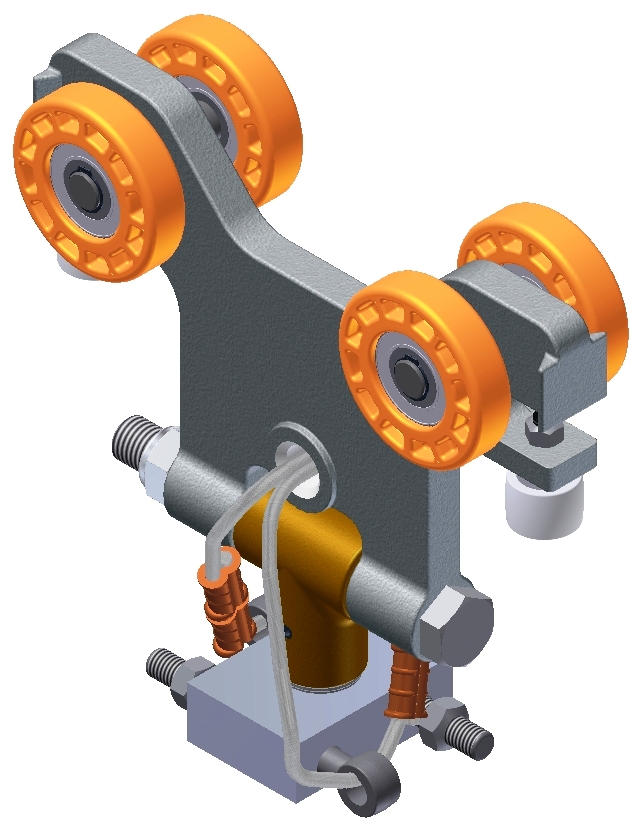

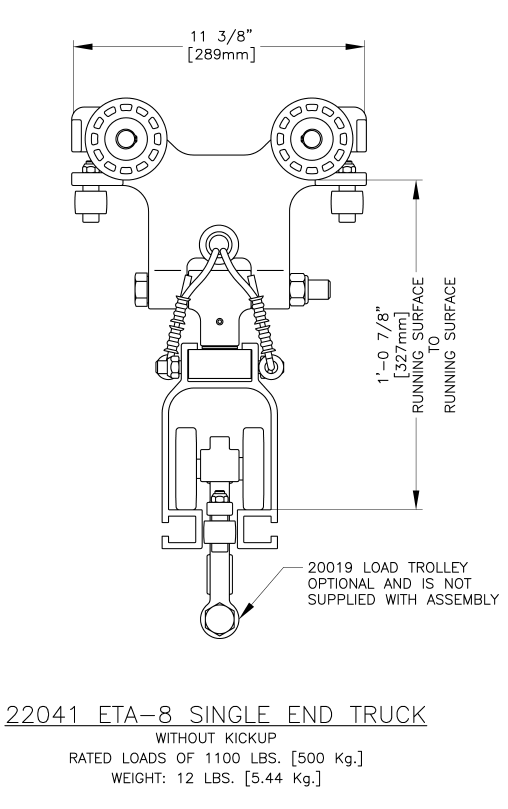

Part # 22041
Single End Truck
1,100lb/550kg
Dimensions
Exploded View

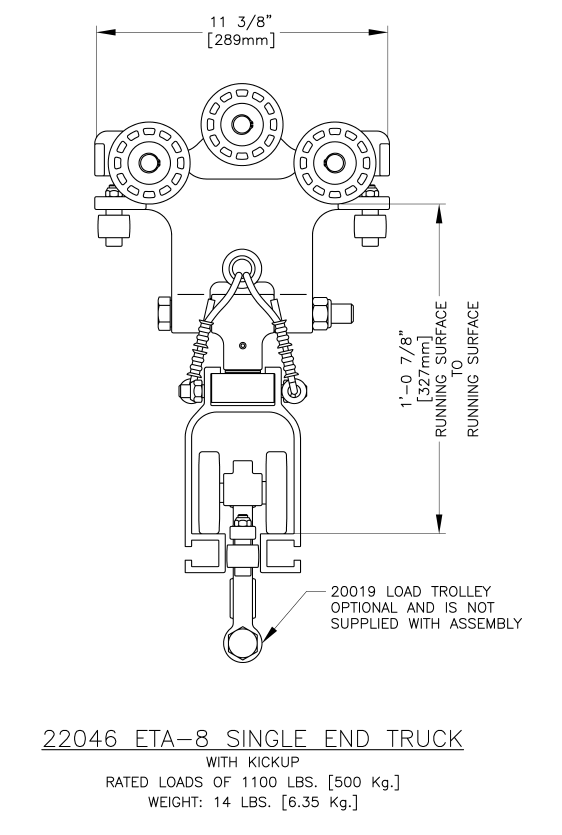

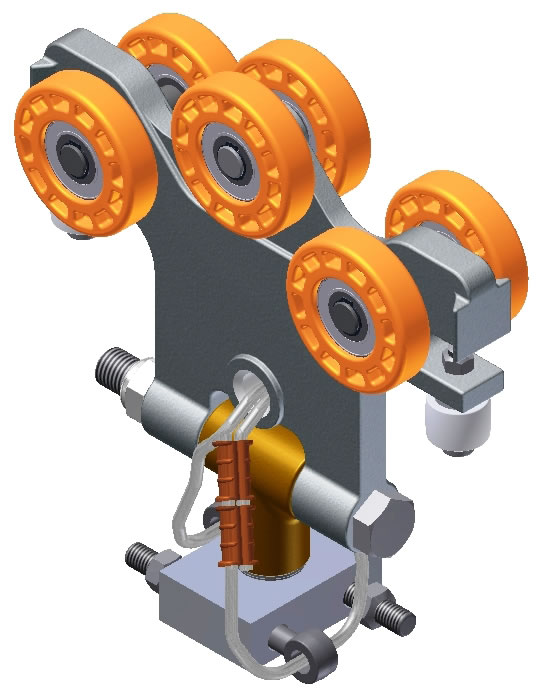

Part # 22046
Single End Truck with Kickup
1,100lb/550kg
Dimensions
Exploded View

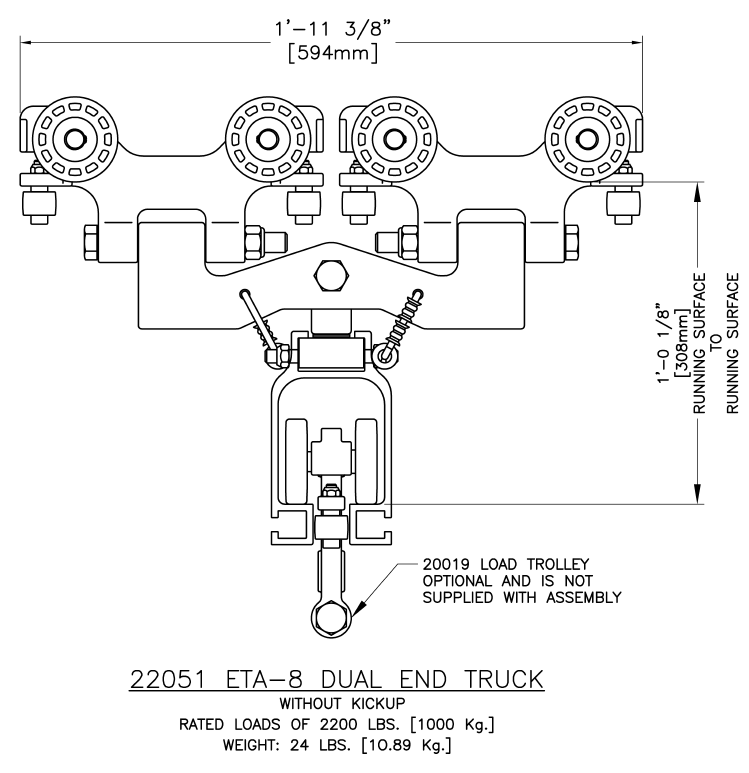

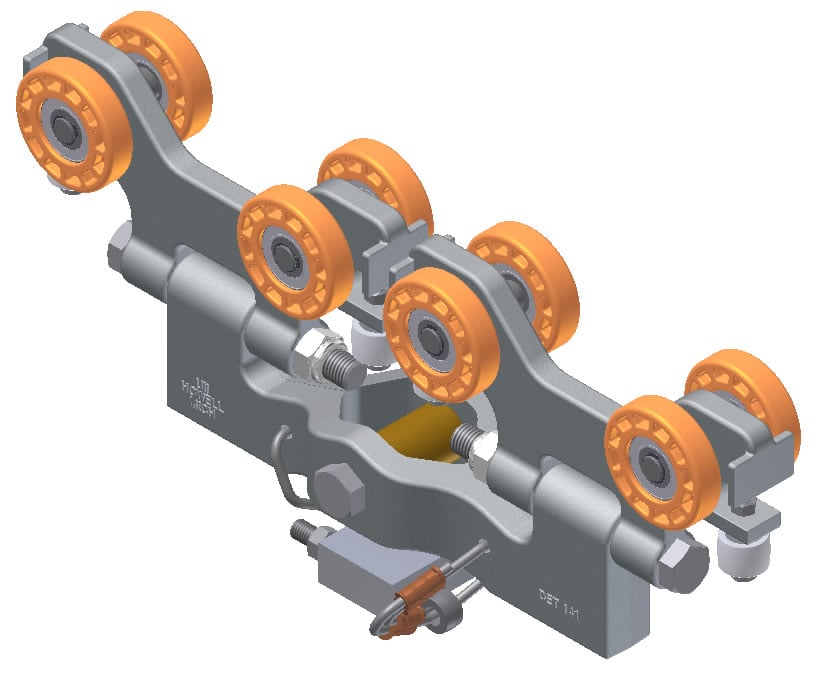

Part # 22051
Dual End Truck
2,200lb/1000kg
Dimensions
Exploded View

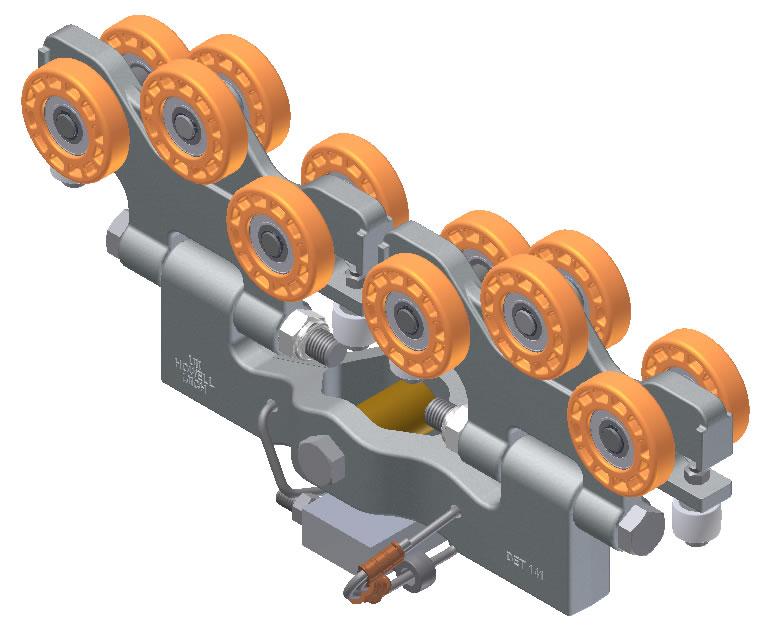

Part # 22131
Dual End Truck with Kickup
2,200lb/1000kg
Dimensions
Exploded View

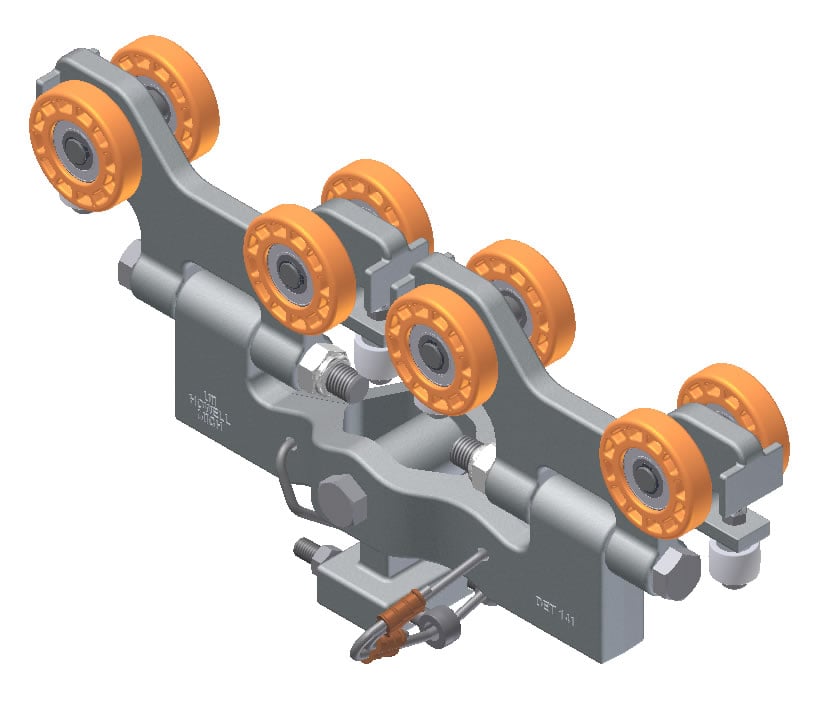

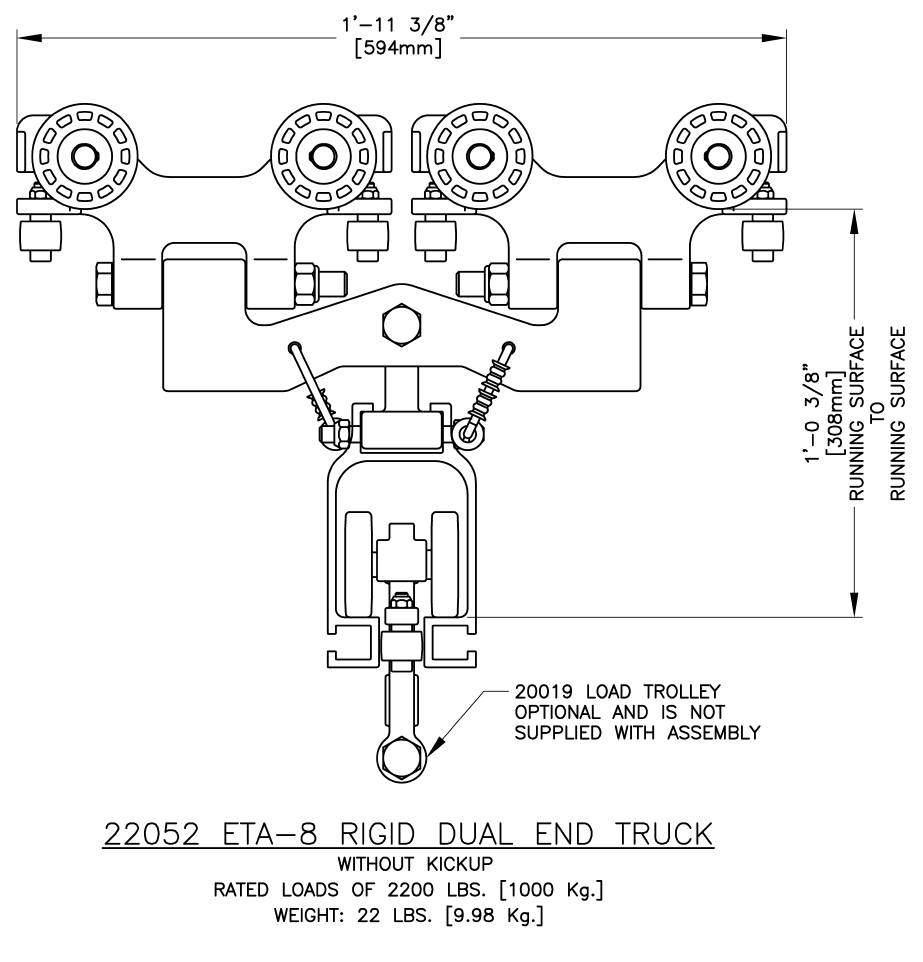

Part # 22052

Rigid Dual End Truck for Dual Girder Cranes
2,200lb/1000kg
Dimensions
Exploded View

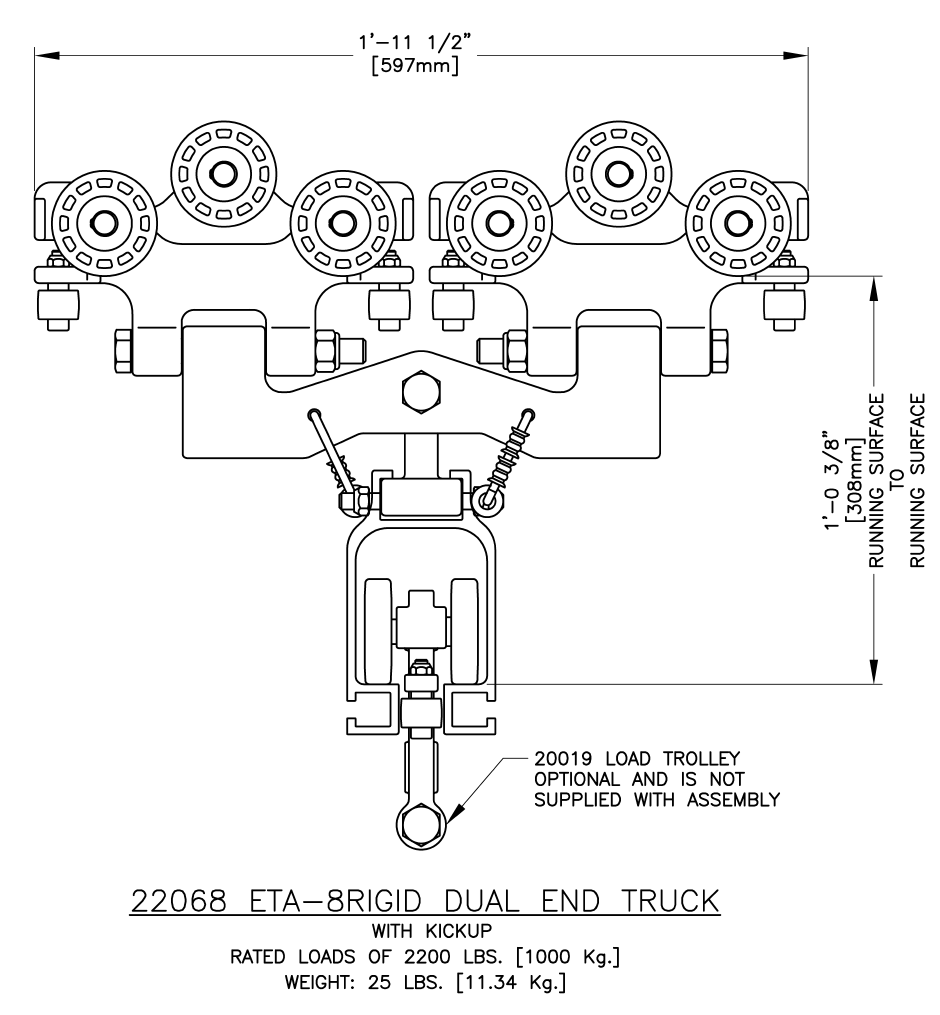

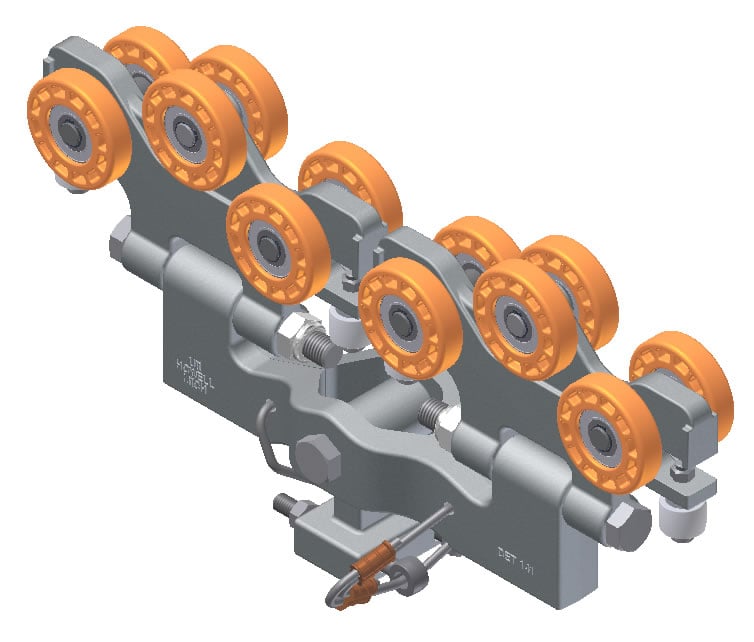

Part # 22068
Rigid Dual End Truck with Kickup for Dual Girder Cranes
2,200lb/1000kg
Dimensions
Exploded View

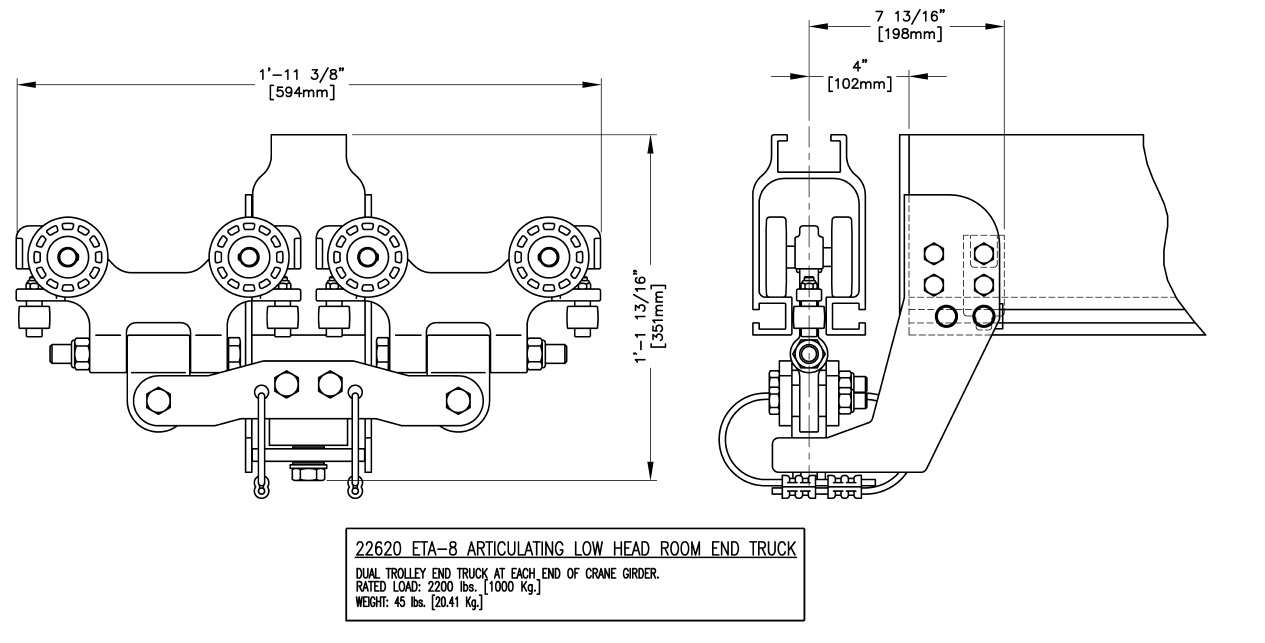

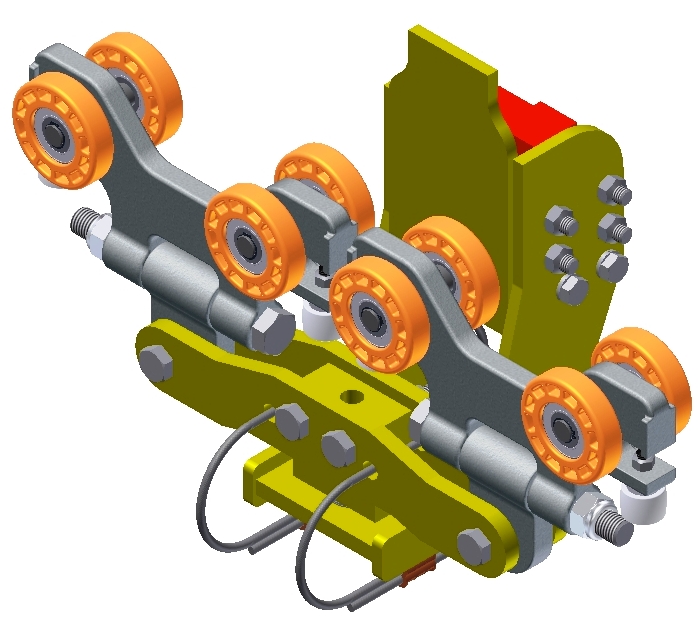

Part # 22620
Articulating Low Headroom End Truck
2,200lb/1000kg
Dimensions
Exploded View

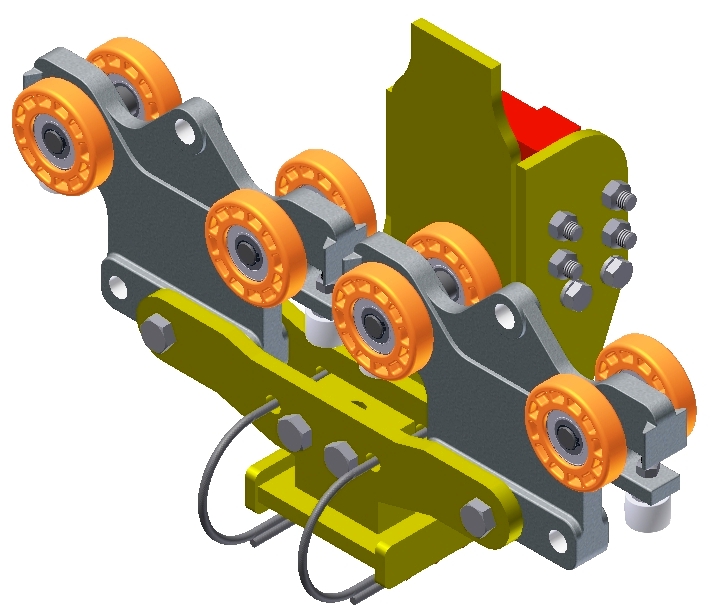

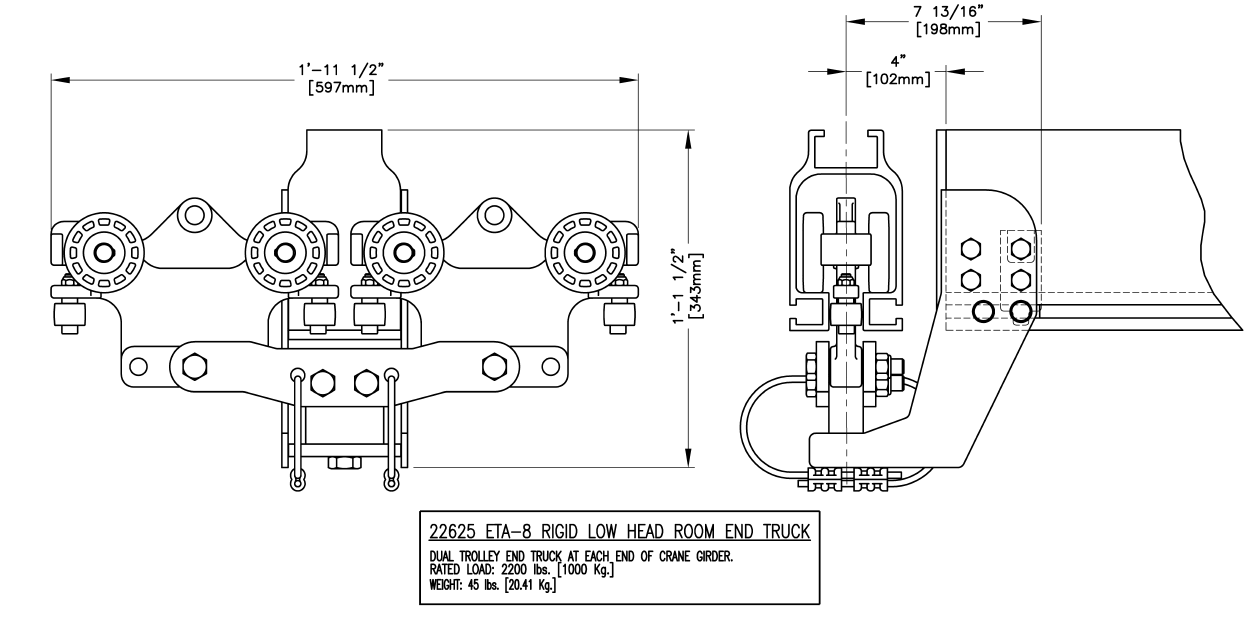

Part # 22625

Rigid Low Headroom End Truck
2,200lb/1000kg
Dimensions
Exploded View

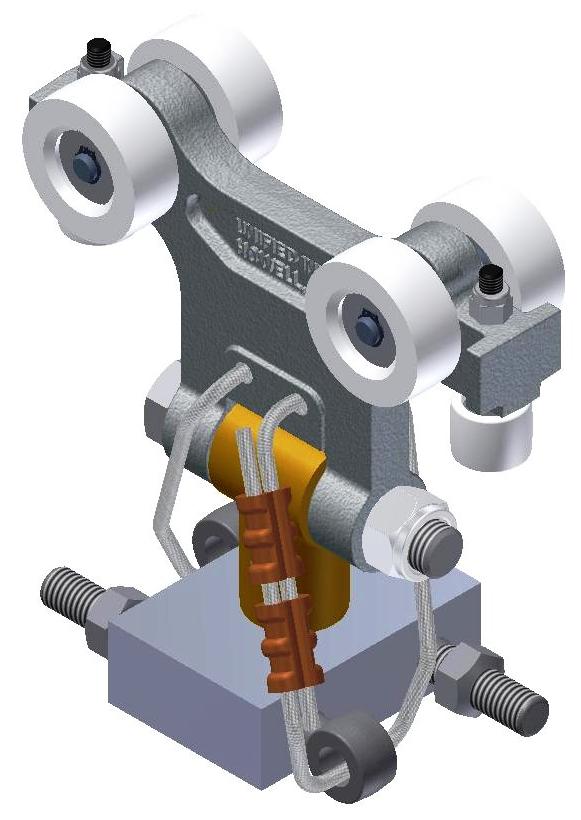

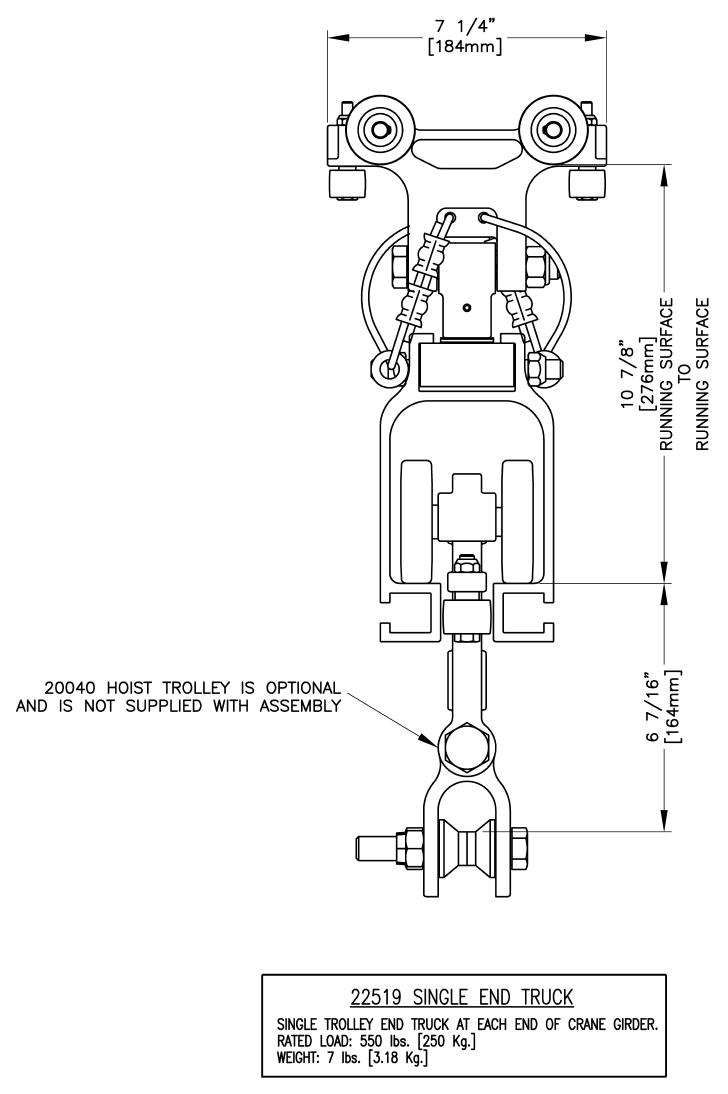

Part # 22519
Single End Truck ETA-8 to ETA-4/5 Runway
550lb/250kg
Dimensions
Exploded View

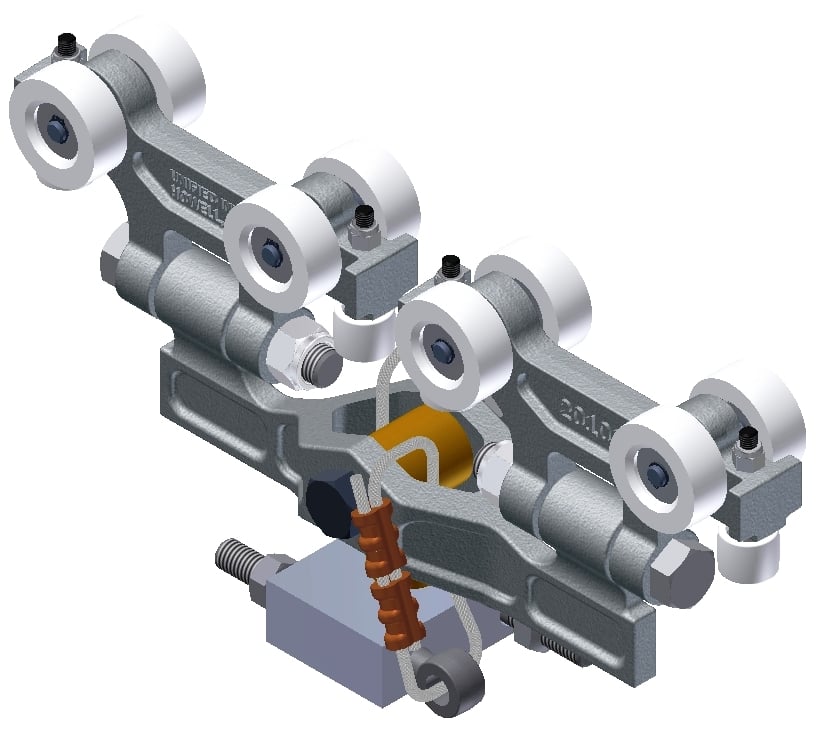

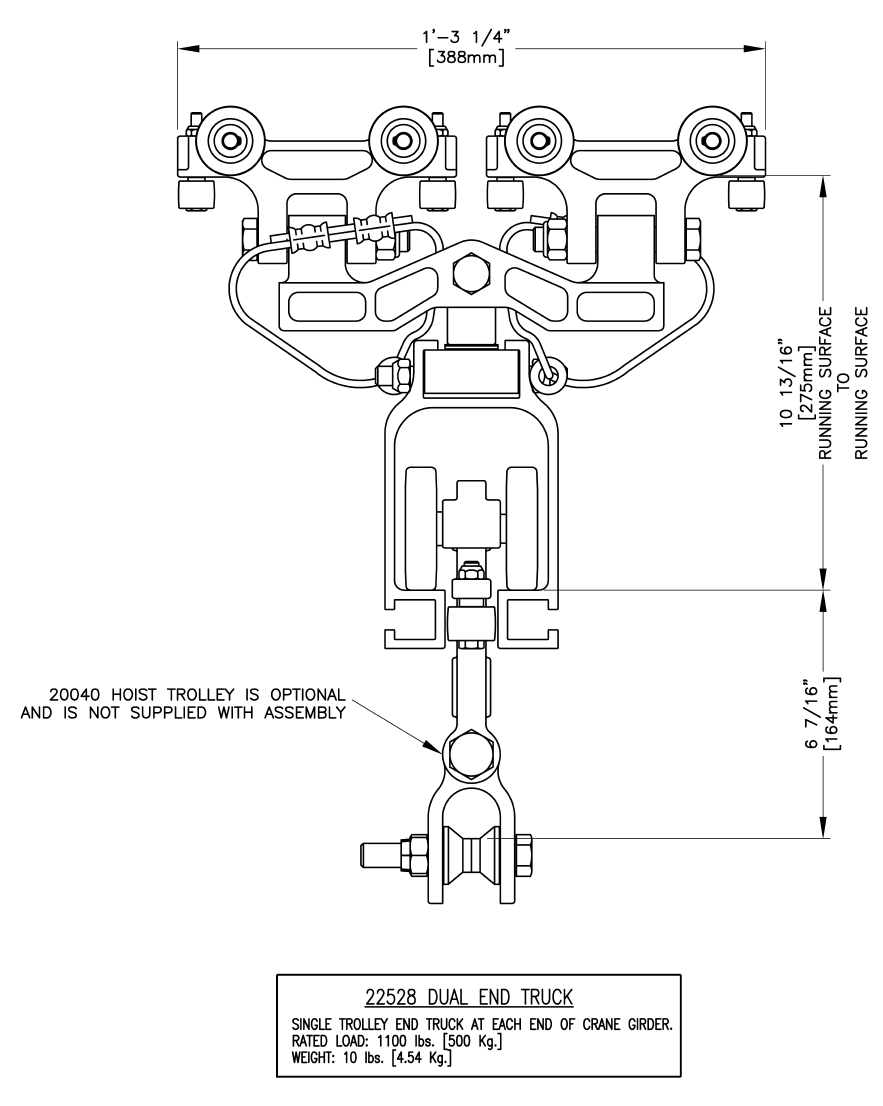

Part # 22528

Dual End Truck ETA-8 to ETA-4/5 Runway
1,100lb/550kg
Dimensions
Exploded View

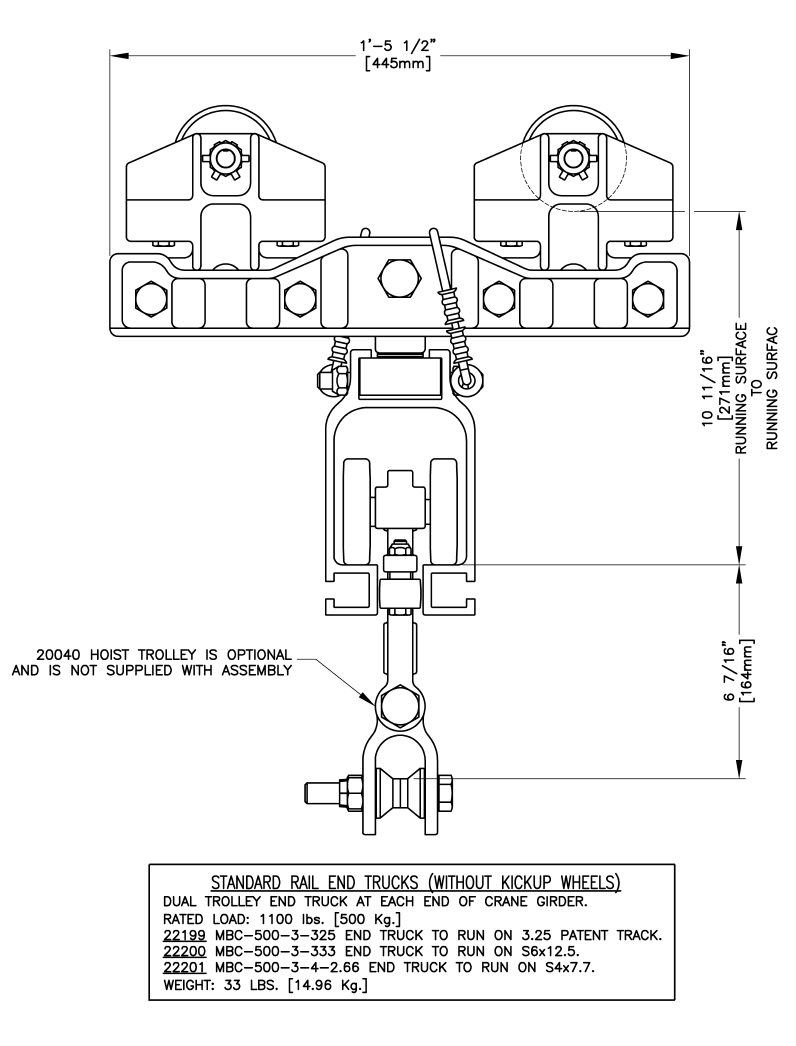

Part # MBC-500
Standard Rail End Truck
1,100lb/500kg
Dimensions
Exploded View

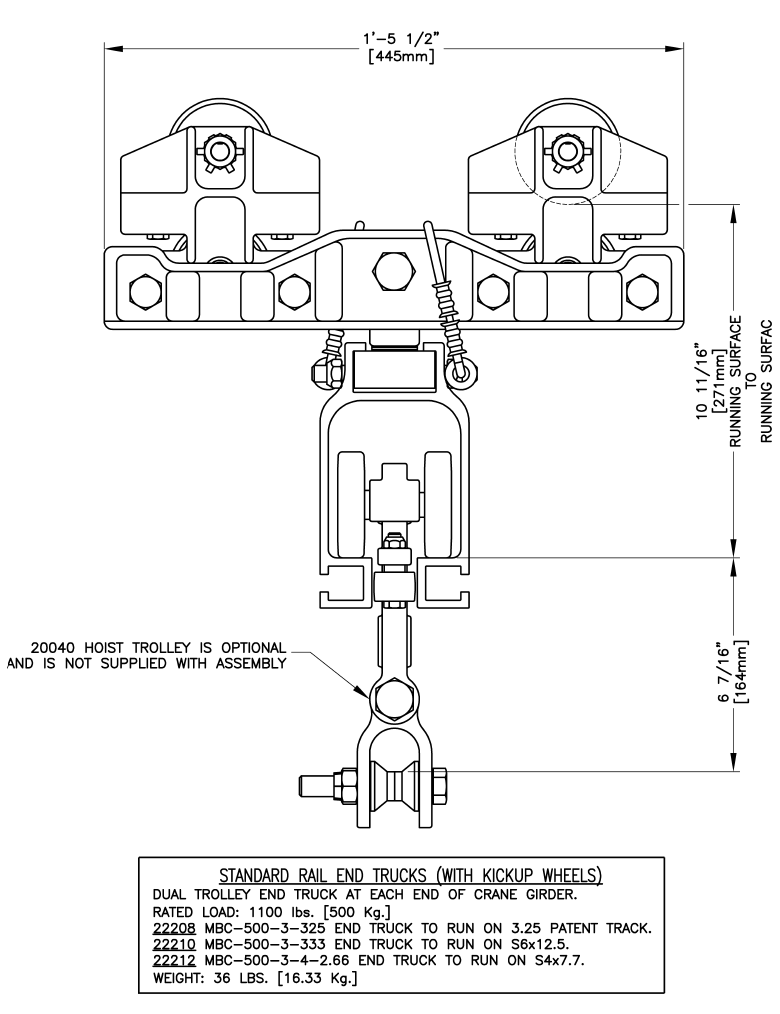

Part # MBC-500 (KU)
Standard Rail End Truck w/Kickup
1,100lb/500kg
Dimensions
Exploded View

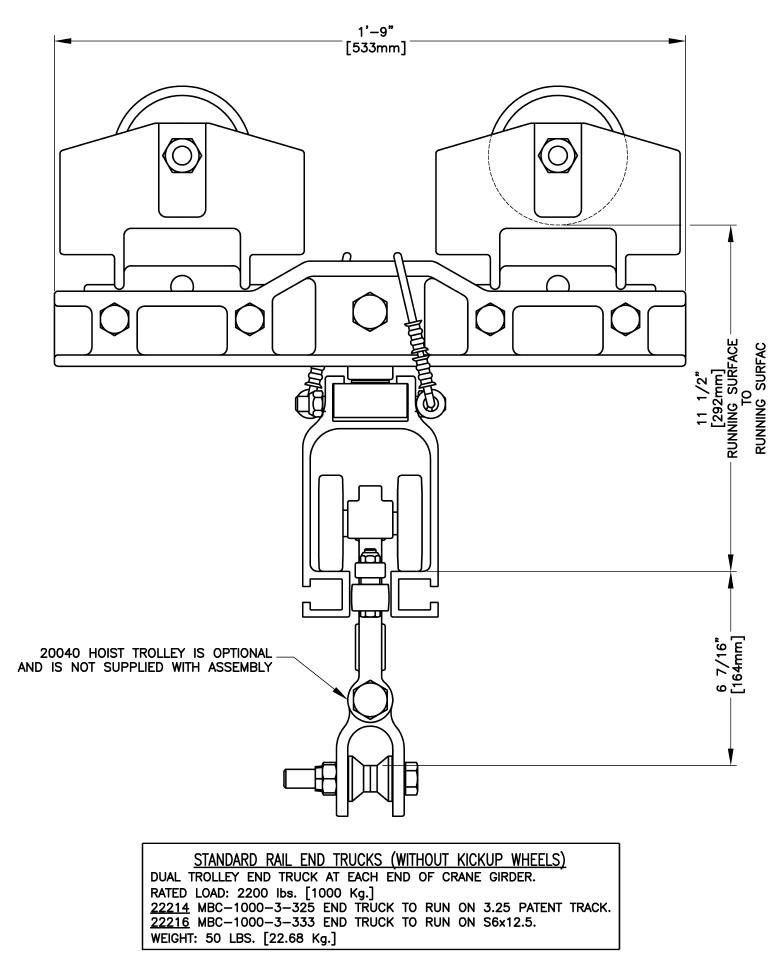

Part # MBC-1000
Standard Rail End Truck
2,200lb/1000kg
Dimensions
Exploded View

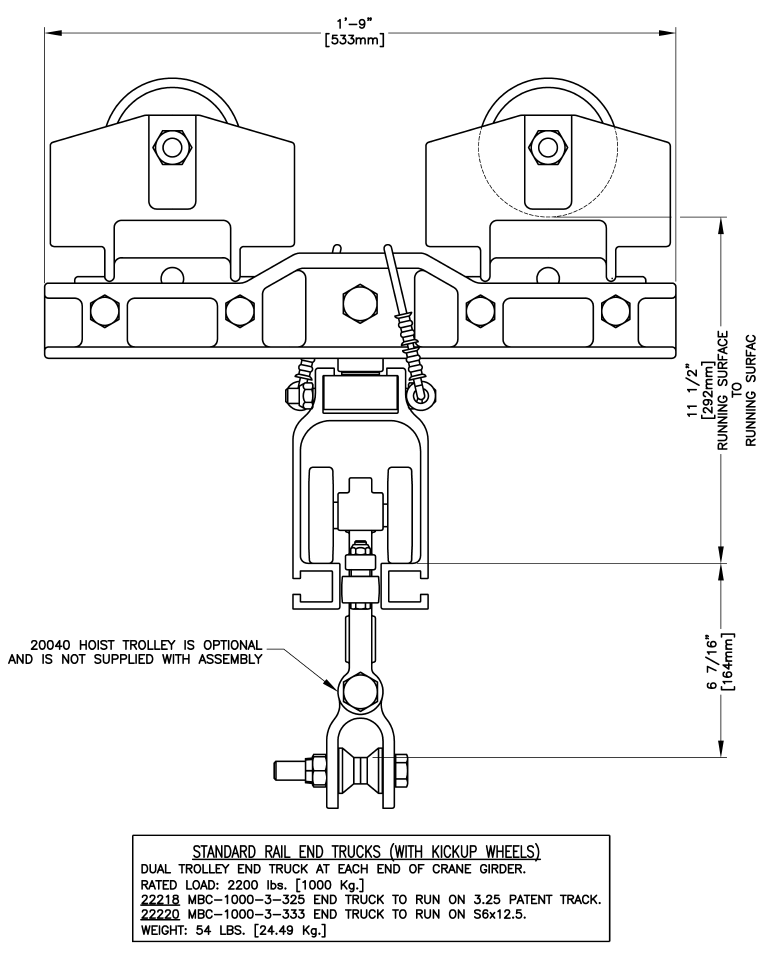

Part # MBC-1000(KU)
Standard Rail End Truck w/Kickup
2,200lb/1000kg
Dimensions
Exploded View

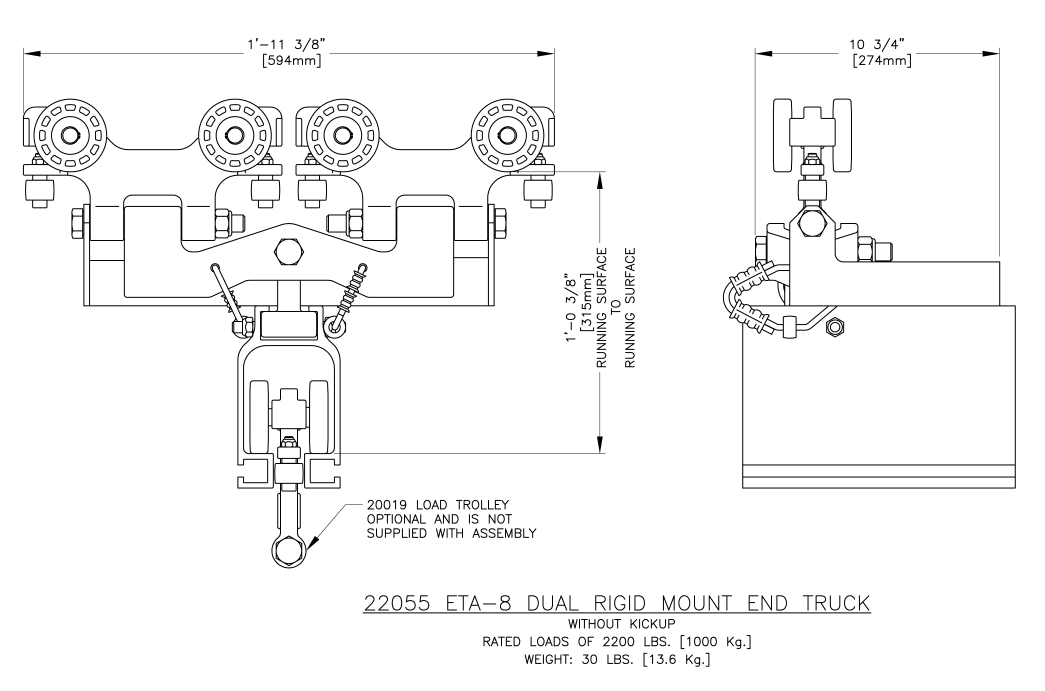

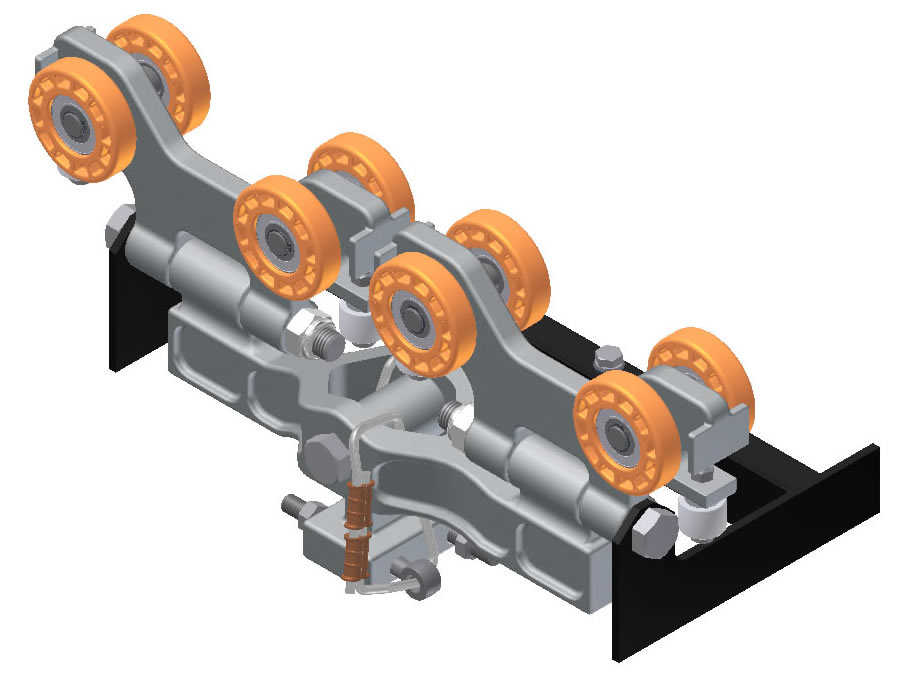

Part # 22055
Rigid Mount End Truck * Kickup version available
For spans up to 18'/20'OAL
2,200lb/1000kg
Dimensions

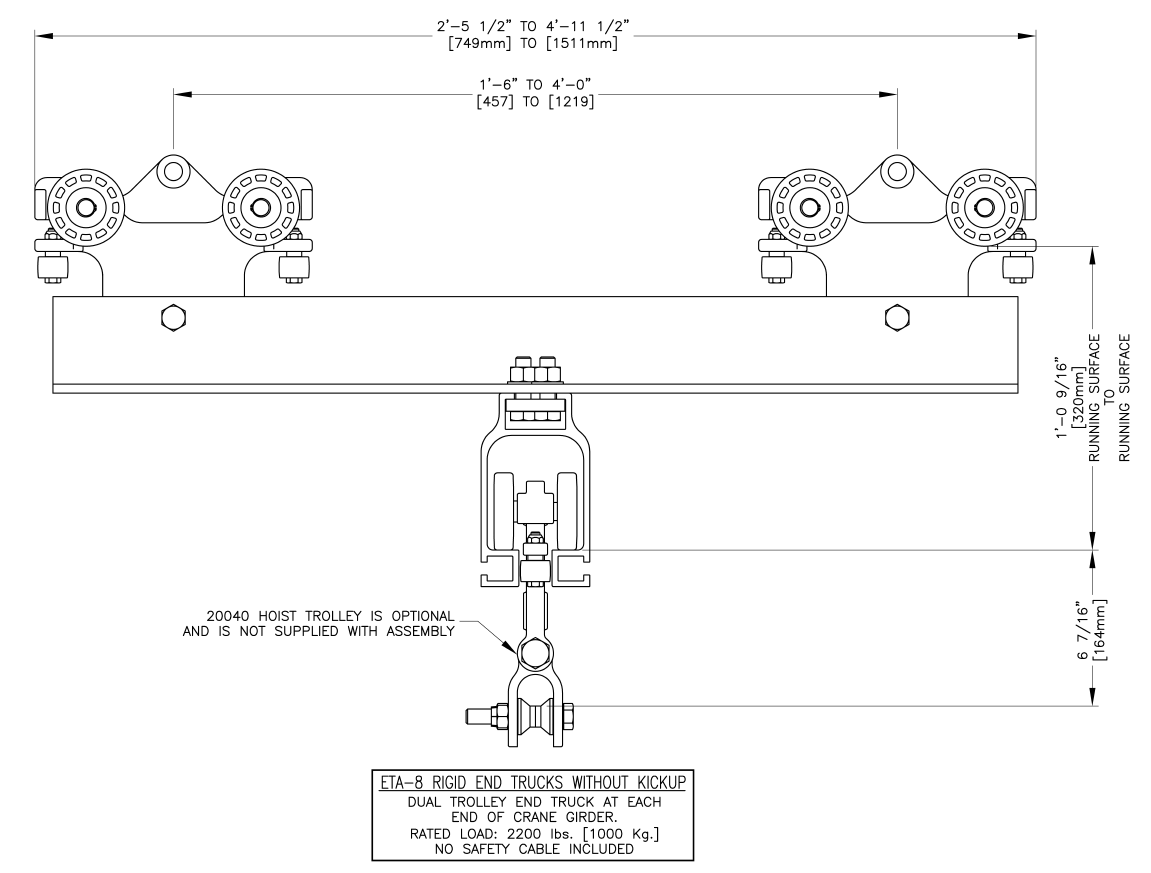

ETA-8 Rigid End Trucks


ETA-8 Rigid End Truck
Exploded View

Part # | Description | Load Weight | Part Weight

  • 22221 1'-6" wheelbase for spans 3'-0" to 6'-0" - 2,000lbs/61lbs
  • 22222 2'-0" wheelbase for spans 7'-0" to 10'-0" - 2,000lbs/70lbs
  • 22223 2'-6" wheelbase for spans 11'-0" to 14'-0" - 2,000lbs/79lbs
  • 22224 3'-0" wheelbase for spans 15'-0" to 18'-0" - 2,000lbs/88lbs
  • 22225 3'-6" wheelbase for spans 19'-0" to 21'-0" - 2,000lbs/98lbs
  • 22226 4'-0" wheelbase for spans 22'-0" to 25'-0" - 2,000lbs/107lbs

No safety cable included

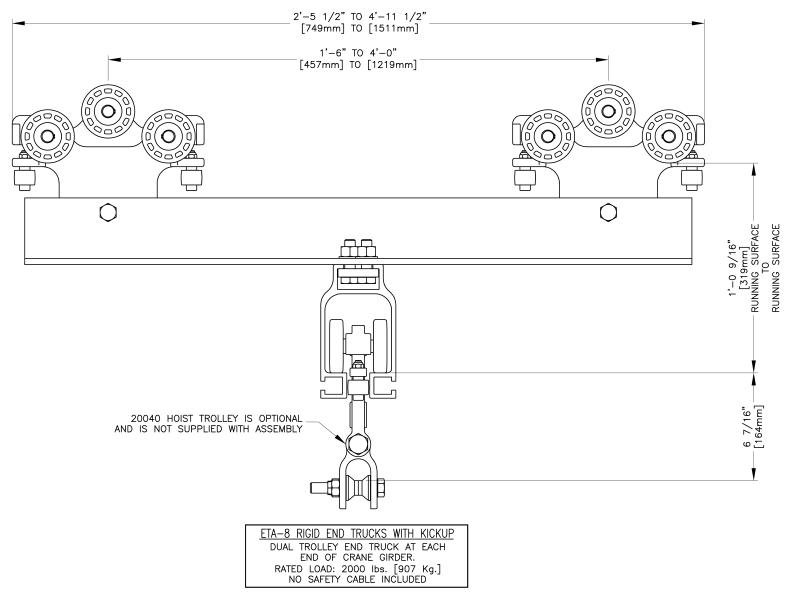

ETA-8 Rigid End Truck with Kickup
Exploded View

Part # | Description | Load Weight | Part Weight

  • 22227 1'-6" wheelbase for spans 3'-0" to 6'-0" - 2,000lbs/63lbs
  • 22228 2'-0" wheelbase for spans 7'-0" to 10'-0" - 2,000lbs/72lbs
  • 22229 2'-6" wheelbase for spans 11'-0" to 14'-0" - 2,000lbs/81lbs
  • 22230 3'-0" wheelbase for spans 15'-0" to 18'-0" - 2,000lbs/90lbs
  • 22231 3'-6" wheelbase for spans 19'-0" to 21'-0" - 2,000lbs/99lbs
  • 22232 4'-0" wheelbase for spans 22'-0" to 25'-0" - 2,000lbs/108lbs

No safety cable included

ETA-4 Rigid End Truck
Exploded View

Part # | Description | Load Weight | Part Weight

  • 22546 1'-6" wheelbase for spans 2'-0" to 5'-0" - 1,000lbs/24lbs
  • 22547 2'-0" wheelbase for spans 6'-0" to 9'-0" - 1,000lbs/28lbs
  • 22548 2'-6" wheelbase for spans 10'-0" to 13'-0" - 1,000lbs/32lbs
  • 22549 3'-0" wheelbase for spans 14'-0" to 17'-0" - 1,000lbs/36lbs
  • 22550 3'-6" wheelbase for spans 18'-0" to 20'-0" - 1,000lbs/40lbs
  • 22232 4'-0" wheelbase for spans 22'-0" to 25'-0" - 2,000lbs/108lbs

No safety cable included
