Upgrade to

Flex Pro™2

A Configurable Control Platform Built for Mobile Hydraulic OEMs

FlexPro 2 for OEMs

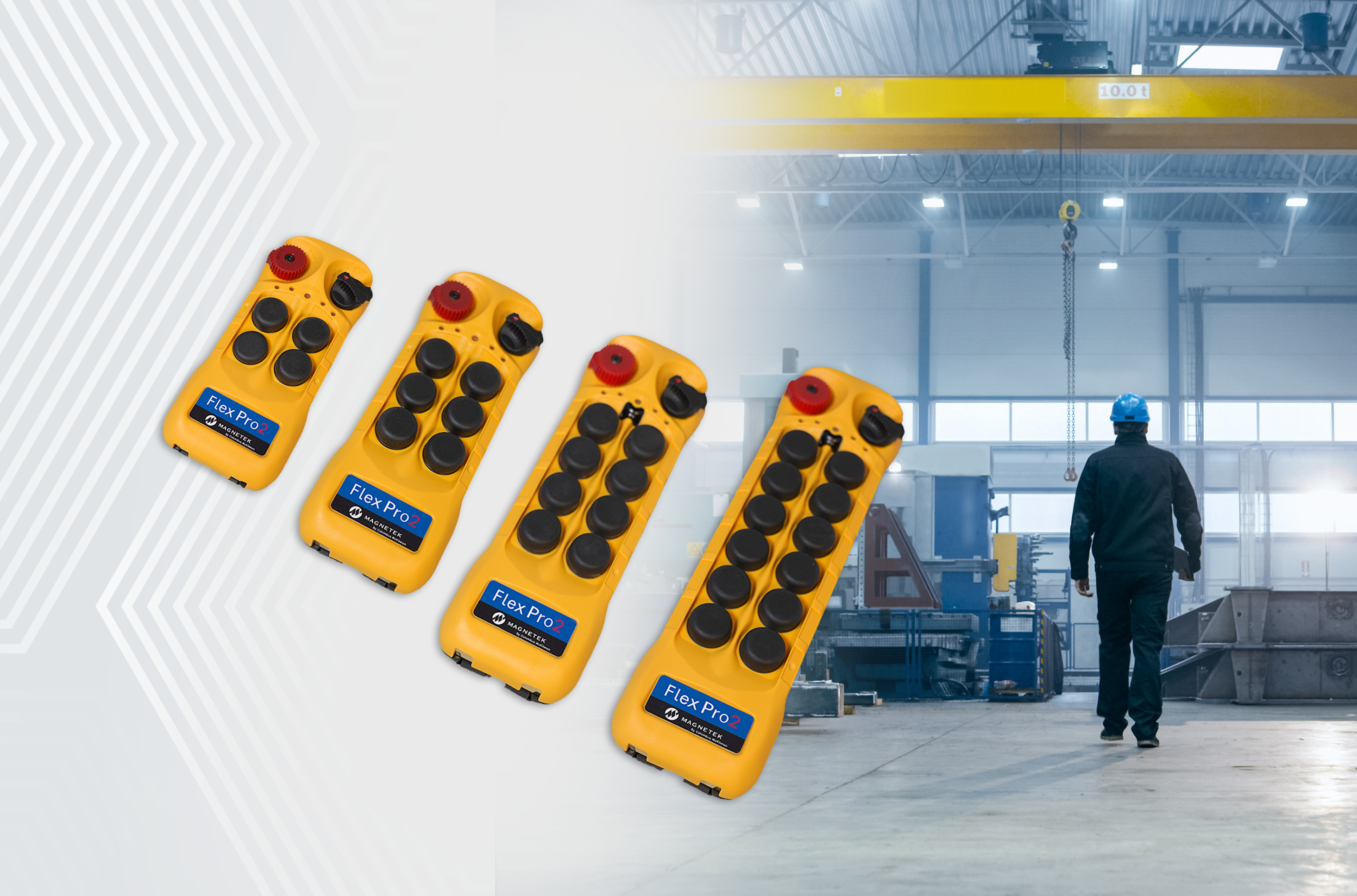

Flex Pro2 product Image

Designed for Today’s Mobile Hydraulic Equipment

Magnetek Flex Pro™2 wireless controls were developed with mobile hydraulic OEMs in mind. Built on the trusted legacy of the first-generation Flex Pro, the Flex Pro2 delivers even more features and greater performance specific to the needs of today’s mobile hydraulic applications. For over 30 years, customers have relied on the Magnetek brand best-in-class products for their quality, reliability, and innovation in motion control technology.

From concrete pumpers to boom trucks and sewer equipment, Flex Pro2 is a modern, streamlined radio platform that empowers operators with intuitive controls to work smarter, faster, and with greater precision.

Where to Start:

Interested in documents, specs, or technical information for the
Flex Pro2?

We recommend these resources:

            VISIT FLEX PRO2 PRODUCT PAGE

           DOWNLOAD FLEX PRO2 BROCHURE

Curious about upgrading to the Flex Pro2? Have a mobile hydraulic application that needs a solution?

Connect with an expert:

                                Upgrade to the Flex Pro2

Complete MOBILE HYDRAULIC APPLICATION QUESTIONNARE

Not ready to upgrade just yet? That's okay! Try these options:

Mobile Hydraulic Case StudieS  Explore CMCO Automation Solutions



Why Mobile Hydraulic OEMs Are Upgrading to Flex Pro2

In the fast-moving mobile hydraulic market that rewards innovation, OEMs gain a competitive edge by upgrading to solutions that offer greater flexibility, fresh features, and the adaptability needed to maximize equipment performance.

Where Flex Pro2 makes a difference:

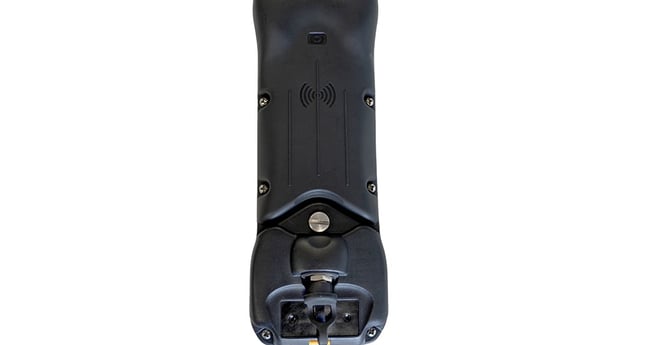

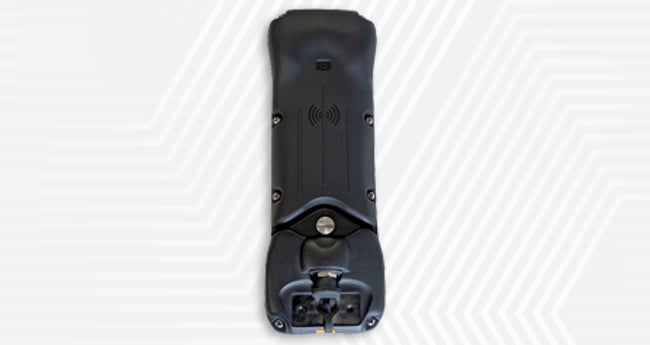

Tethered Flex Pro 2 LP

Engineered for Flexibility

Flex Pro2 communicates with Radio Controlled Programming (RCP), giving mobile integrators easy access to the device and allowing for quick updates. It also adds tethered CAN and RF capabilities for reliable control when wireless signals are challenged. Plus, an optional magnet mount lets operators easily secure the transmitter to a truck or machine for convenient, hands free access.

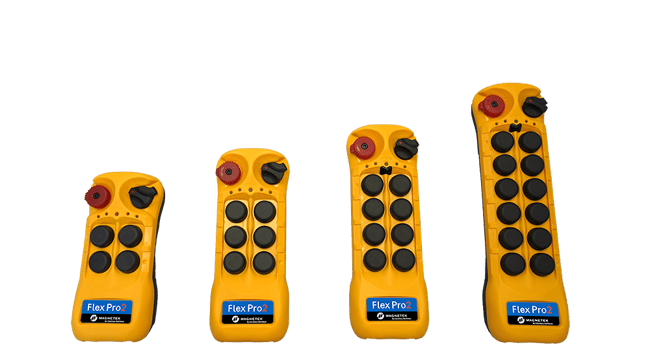

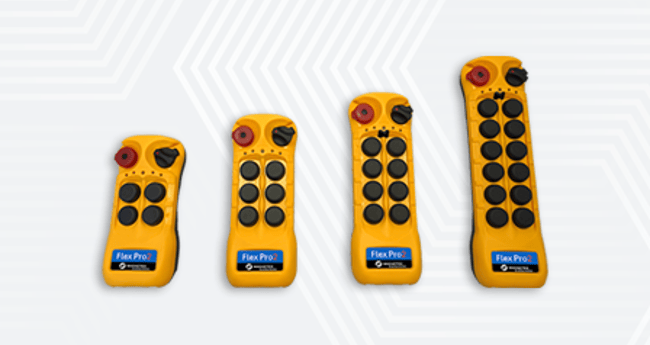

FP 2 Family

Updated Ergonomics

Flex Pro2 boosts operator convenience with tactile 3‑step push buttons for precise control and redesigned side‑mounted labels that last longer in tough environments. New 4‑ and 6‑button layouts let OEMs choose the right transmitter to fit their application’s motion requirements.

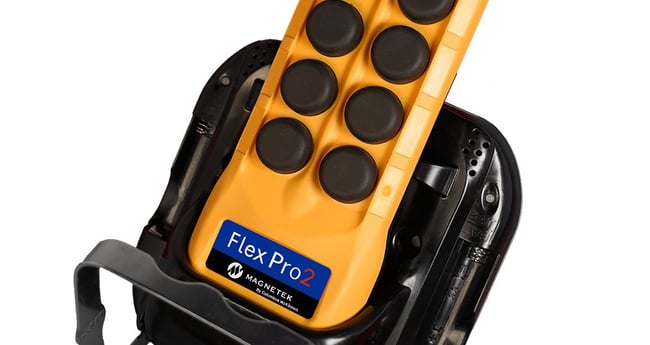

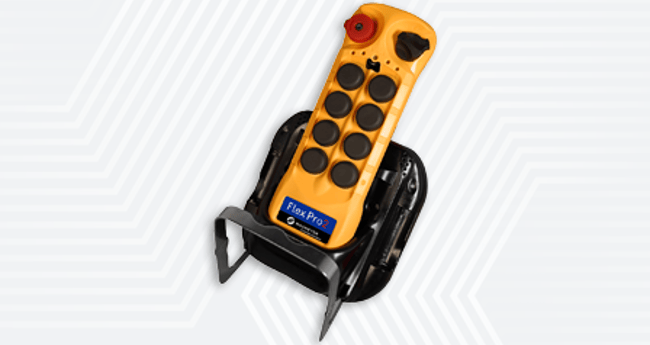

Charger Flex Pro 2

Smarter Power

A replaceable battery cover enables quick conversion to a tethered connection for reliable operation in harsh or interference‑heavy environments. The Flex Pro2 charging cradle can be mounted and hard‑wired directly into a vehicle, keeping transmitters powered, while AA and rechargeable batteries ensure operators can stay running throughout high‑usage shifts.



Flex Pro2 vs. Flex Pro: What's Changed and Why It Matters

Flex Pro2 builds on the proven foundation of Flex Pro while addressing the needs of next‑generation mobile hydraulic equipment.
Wider Operating Temperature Range

Flex Pro2 expands environmental capability to –40°F to 185°F (–40°C to 85°C), compared to –13°F to 167°F (–25°C to 75°C) for Flex Pro.

OEM benefit: Supports broader deployment regions and more demanding duty cycles with a single platform.


Off‑the‑Shelf Rechargeable Power

Flex Pro2 uses standard AA NiMH rechargeable batteries with double the per‑cell capacity of prior proprietary packs.

OEM benefit: Reduced sourcing risk, improved serviceability, and simplified lifecycle management.

Built‑In USB Configuration

Flex Pro2 adds USB configuration via the Receiver Configuration Program (RCP).

OEM benefit: Faster setup, easier parameter changes, and reduced commissioning time during production and field support.

Configurable Button Types

Flex Pro2 supports proportional, 1‑step, 2‑step, or 3‑step buttons.

OEM benefit: One transmitter platform can support different machine behaviors and operator preferences across product lines.





Extended Wireless Operating Range

Flex Pro2 increases operating distance to 328 ft (100 m).

OEM benefit: Enables greater flexibility for larger machines, extended work envelopes, and varied operator positions.

Download the full Flex Pro vs. Flex Pro2 Comparison Chart

Frequently Asked Questions

  • What is the difference between Flex Pro2 and the legacy Flex Pro?

    The Flex Pro2 is a modern, feature-rich radio platform, built on the trusted legacy of the Flex Pro. It provides OEMs with expanded features, greater performance, and enhanced system integration that is more intuitive for operators and tailored to needs of mobile hydraulic applications.

  • What are the key benefits for mobile hydraulic applications?

    With intuitive control that operators can feel, flexible power options, and wireless and tethered control capabilities, operators can be precise, productive, and connected even in areas with radio frequency interference or harsh conditions. And the upgrade from Flex Pro to Flex Pro2 is seamless, making the shift to the more advanced platform smooth for users.

  • Why partner with Columbus McKinnon for mobile hydraulic applications?

    Backed by over 150 years of expertise and hundreds of thousands of wireless controls in the field, Columbus McKinnon and Magnetek deliver proven, turnkey solutions supported by advanced engineering and exceptional application support. We support OEMs at every stage with performance‑driven products, expert assistance, training, and fast, value‑focused repairs. And with products designed to integrate seamlessly, OEMs gain a unified system that boosts performance and simplifies design.





Commonly Specified Products with Flex Pro2

Upgrading to Flex Pro2 is rarely an isolated decision. Mobile hydraulic OEMs frequently pair the transmitter with additional system components to create a fully integrated, application‑ready control solution.


These featured products reflect the components most often selected alongside Flex Pro2 to support seamless communication, CAN‑based integration, and scalable control across mobile equipment platforms.
