Unified Articulating Arms

Unified Articulating Arm Photo
Unified Articulating Arm Photo
The Unified UA1 Series Parallel Link Arm is a perfect solution for high torque offset loads and heavy lifting. When paired with a standard mounting carriage or mounted on a column; these arms allow the operator to precisely and effortlessly position your material handling or torquing application.

Features and Benefits



SPECIFICATIONS/OPTIONS

  • Durable Powder-coat Finish
  • Welded steel construction
  • Upgradeable Configurations for Future Changes
  • Main & Secondary Brake Options
  • Arm Extension
  • Up/down or Zero-G
  • Adjustable Rotation Stops
  • Position Tracking

Options

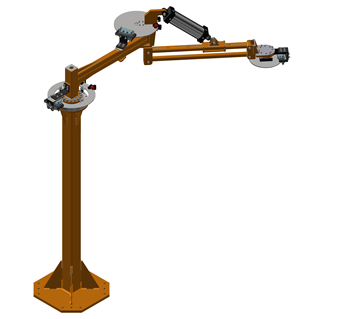

Column Mount

Lifting capacity up to 500 lbs (@100 PSI)
Reach up to 10'-0"

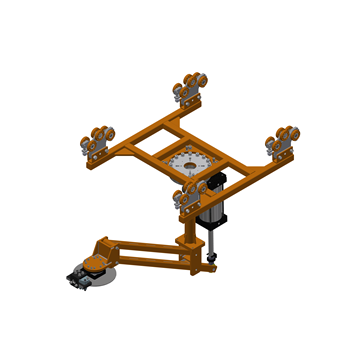

Carriage Mount - Top Cylinder

Lifting capacity up to 500 lbs (@100 PSI)
Reach up to 10'-0"

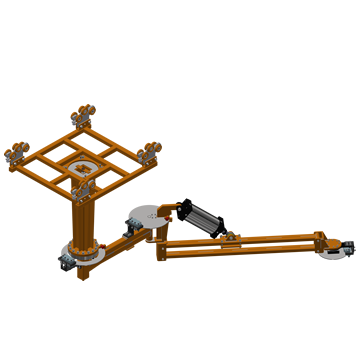

Carriage Mount - Side Cylinder

Lifting capacity up to 500 lbs (@100 PSI)
Reach up to 10'-0"

Extension/Banjo Arm

Lifting capacity up to 390 lbs (@100 PSI)
Reach up to 4'-0" (Up/Down 10 degrees)
Carriage option for 360 degree rotation
