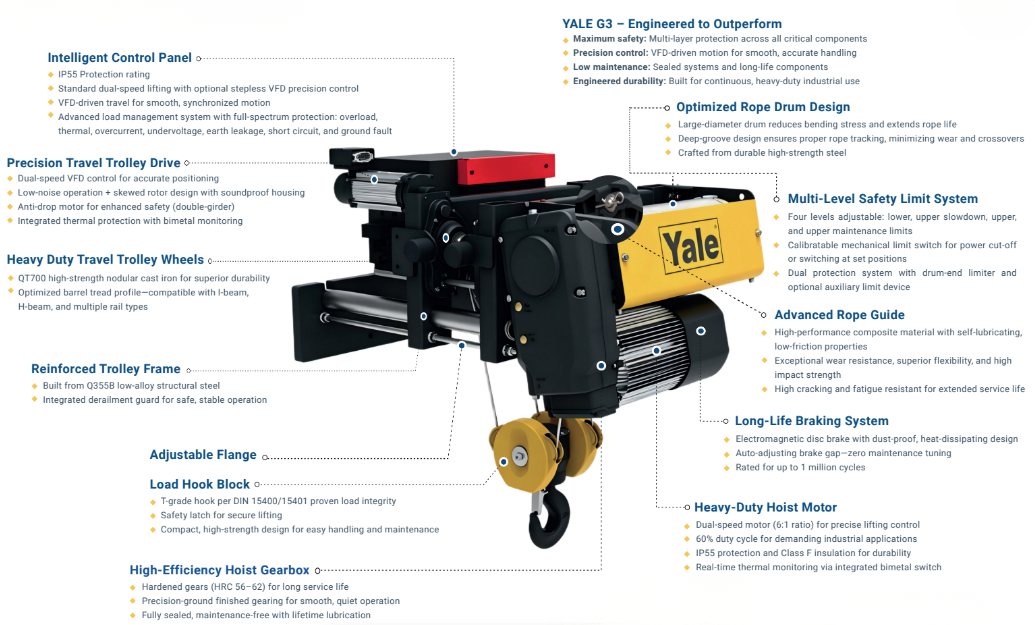

Yale G3 - Wire Rope Hoist

Engineered to Outperform

Maximum safety: Multi-layer protection across all critical components.
Precision control: VFD-driven motion for smooth, accurate handling.
Low maintenance: Sealed systems and long-life components.
Engineered durability: Built for continuous, heavy-duty industrial use.

Brochure

Browse All Documents

Need Assistance?

Not sure if this is the right product for your application, or need a custom solution? Contact us today for help from an expert.

Features and Benefits

Standard Single-Girder

Load Capacity
Supports lifting capacities from 1.25t to 30t, making it suitable for a wide range of light- to medium-duty material handling applications.
Lifting Height
Available with lifting heights from 6 to 98 m, providing flexibility for facilities with varying vertical lifting requirements.
Duty Class M4 – M6
Designed for moderate to heavy-duty operational cycles, ensuring reliable performance in demanding industrial environments.
Short Lateral Approach Dimension
Maximizes usable workspace by allowing the hoist to operate closer to the building structure and runway ends.
Equipped with Rubber Buffers
Rubber buffers help absorb impact forces, reducing wear on crane components and providing smoother operation.
Adjustable Bottom Flange Width
Adjustable flange width from 80–710 mm enables compatibility with a wide range of beam sizes and crane configurations.
C-Shaped Low Headroom Design
The compact C-shaped construction minimizes headroom requirements and is ideal for cranes, curved tracks, and monorail applications where space is limited.

Standard Double-Girder

Load Capacity
Handles loads from 2 to 80 t, making it suitable for heavy-duty lifting applications across industrial sectors.
Lifting Height
Offers lifting heights ranging from 4.3 to 98 m, allowing efficient material handling in both low- and high-bay facilities.
Duty Class M4 – M6
Built for continuous and demanding operations, delivering dependable performance and long service life.
Compact Design with Small Gauge and Wheelbase
The space-saving design improves maneuverability while optimizing installation space within the crane structure.
4-Wheel Uniform Load Distribution
Evenly distributes load across all wheels, ensuring smooth travel, reduced wheel wear, and extended component lifespan.
Wide Span Compatibility
Suitable for spans ranging from 1700 to 4800 mm, providing flexibility for various double-girder crane applications.

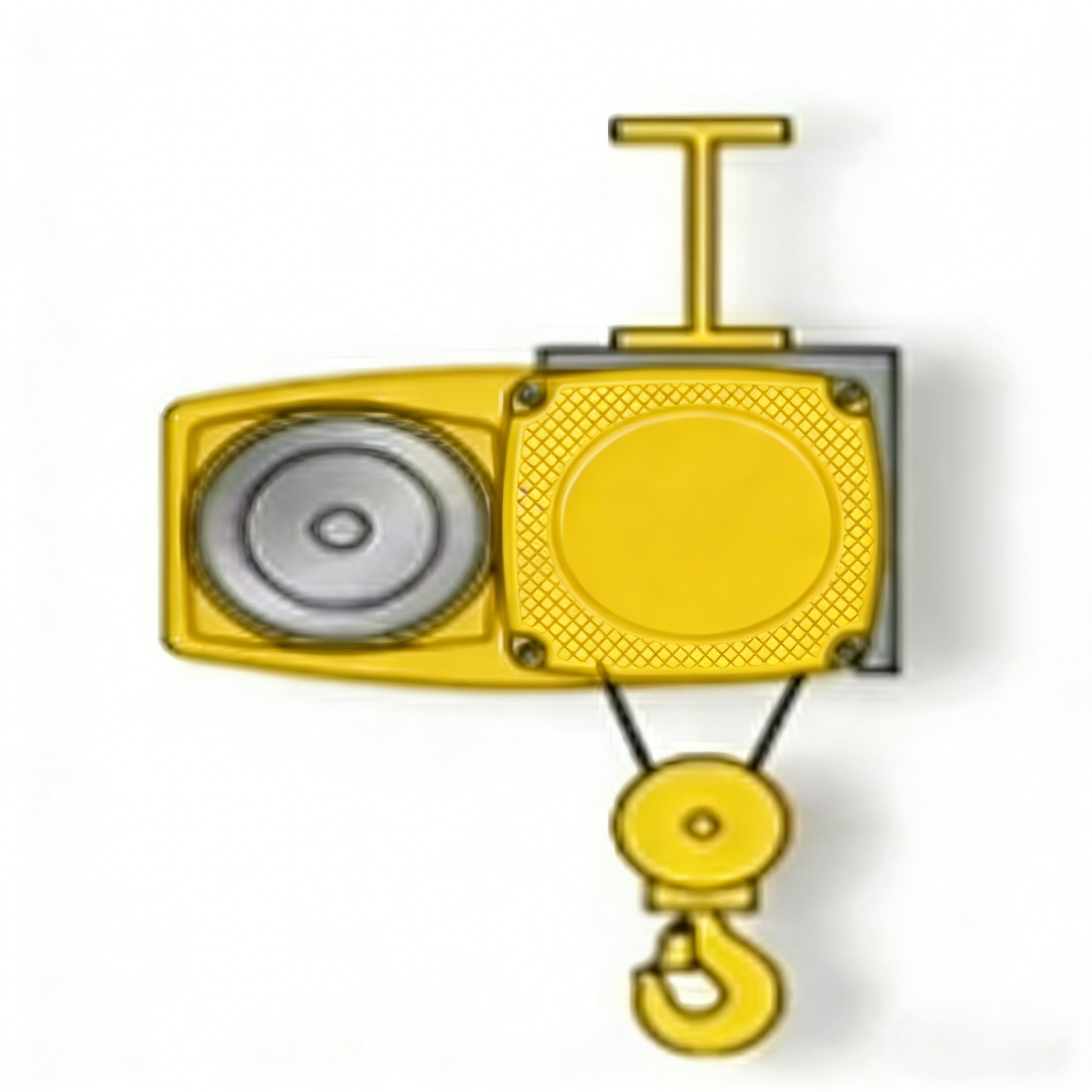

Fixed Mounting

The wire rope hoist can be used for fixed lifting operations or as a traction unit,
such as in system integration applications. Depending on requirements, the rope
exit angle, mounting orientation, and motor position can be adjusted accordingly.

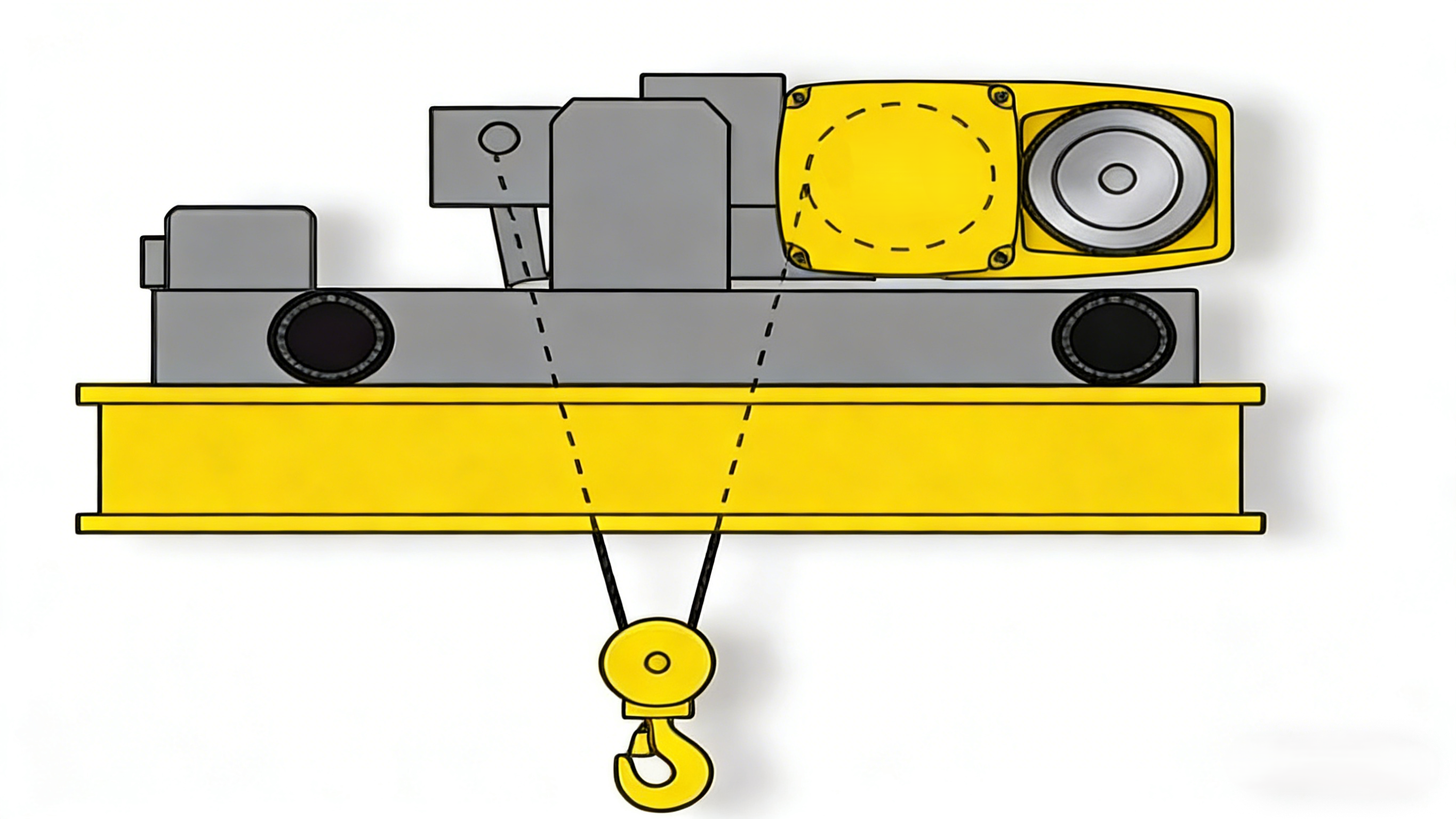

Double Girder Trolley

Designed for double-girder overhead cranes, the compact construction achieves
minimal approach and headroom dimensions for maximum space utilization.
Multiple gauge options cover all load capacities, with self-adapting capability to
rail irregularities

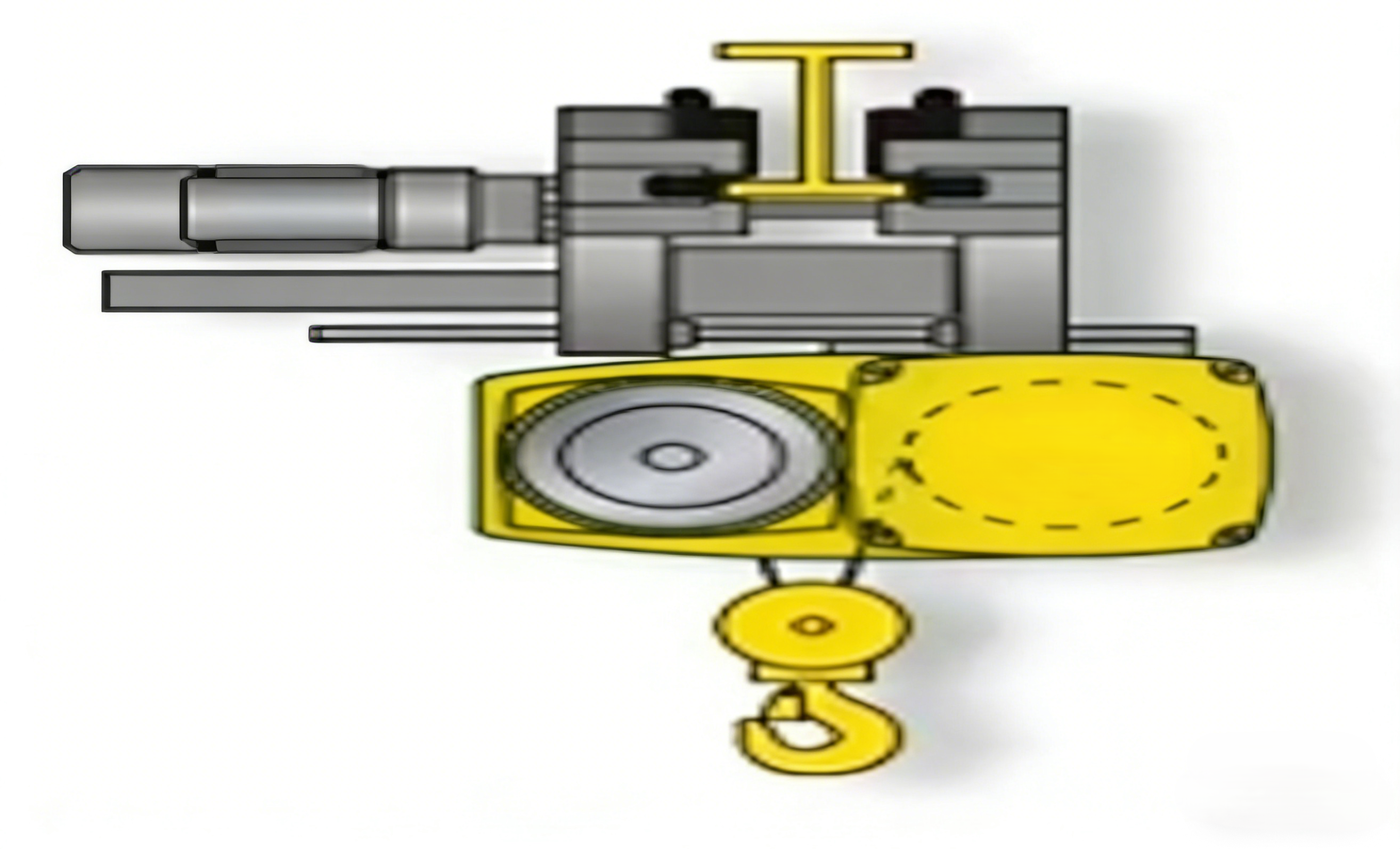

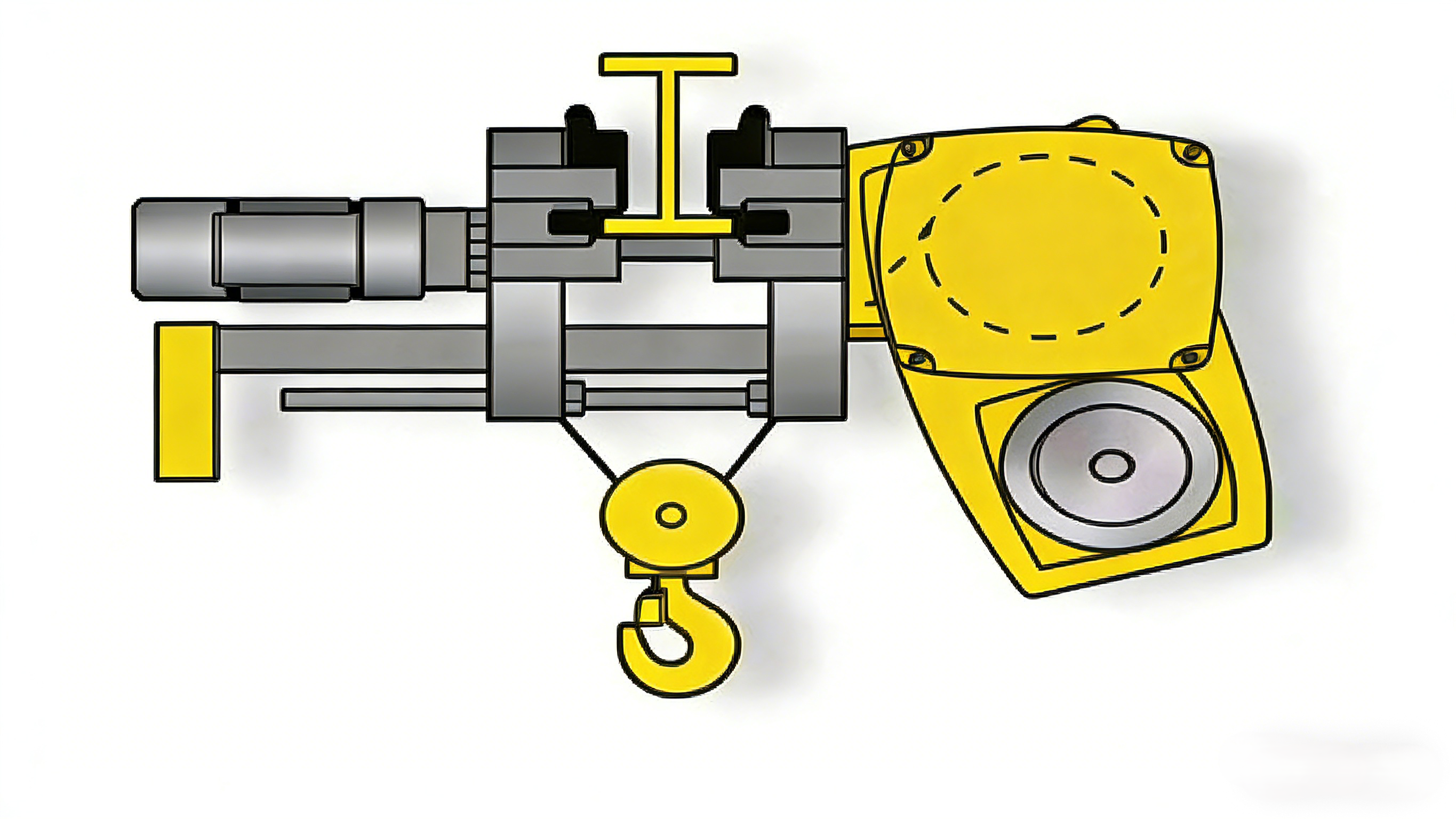

Low-Headroom Single-Girder Trolley

For monorail and single-girder overhead crane applications, the trolley's ultra-low
headroom enables maximum lifting height even in facilities with restricted ceiling height
