SB Electric Wire Rope Hoist

The SB electric wire rope hoist offers high performance in a compact design. It features a robust gearbox, a powerful motor and a durable wire rope, as well as inverter-controlled motions. Designed for reliability, safety and a long service life, it is ideal for demanding industrial applications and limited spaces.

Brochure

Browse All Documents

Need Assistance?

You can contact us by mail at  india@stahlcranes.com, by phone +91 44 6912 3955, or via our contact form.

Features & Benefits

High performance & reliability: Robust gearbox with precision‑ground gears and IEC motor with IP55 protection for smooth, long‑lasting operation, both hoisting and cross travel with inverter control for smooth operation.
Safe operation: Fail‑safe DC brake, mechanical overload protection, and precise geared limit switch for secure lifting.
Low maintenance: Durable components, CNC‑machined drum and wheels, and easy‑service control cabinet reduce downtime.
Optimized rope handling: Fine‑machined rope drum, enclosed rope guide, and long‑life wire rope ensure reduced wear.
Versatile installation: Adjustable trolley, compact low‑headroom design, and wheels suitable for tapered or flat beams.
Built for tough environments: Rigid frame, high‑quality coating, and rugged components for demanding industrial use.
Flexible configurations: Available as monorail or crab hoist with capacities of 3.2 t, 5 t, and 10 t and lifting height of 7 and 12 meters.

Adjustable equalizing sheave and Wedge assemble based on actual requirement to increase rope and rope guide life and 2 wheel drive to ensure smooth CT movement.

RELIABLE & DURABLE CONSTRUCTION

With a heavy-duty frame, high-quality paint, and precision machined wheels, this hoist is durable and reliable, even for heavy-duty applications and harsh environments.

Designed for efficiency, safety, and reliability, the SB electric wire rope hoist is a heavy-duty yet compact hoist suited for light, medium, and heavy-duty lifting applications.

Made in India, this hoist features a state-of-the-art gearbox and motor with low maintenance brake assembly. This hoist provides high- performance, smooth and efficient operation, durability, and safety features to protect your operators.

Gearbox

Engineered and built exclusively for hoisting application with high center distance and higher clearance between motor and rope that boost the hoists performance. Enclosed gearbox with hardened and precision ground gears permanently immersed in synthetic oil for smooth and longer life. Cast iron housing permits higher service factor.

Motor and Inverter

The IEC frame motors offer easy installation, maintenance, and replacement. These heavy-duty, fan-cooled squirrel-cage motors feature PTC thermistor overheating protection with Class F insulation and an IP55 enclosure, ensuring reliable performance in demanding industrial environments. Both Hoisting and Cross travel with inverter control for smooth operation.

Break

The low-maintenance, fail-safe DC disc brake ensures reliable and secure operation. A standard hand-release lever allows safe load lowering in the event of a power failure, while the IP55 enclosure provides dependable protection.

Low Maintenance

High-quality components designed for minimal maintenance and repairs, including brakes, wire rope, and drive units. Control cabinet layout is optimized for easy serviceability and clearly labeled for ease of maintenance. Featured name-brand components for easy recognition. Commonly found wire rope construction is easy and economical to replace and does not require any special swaged fittings. Both Hoisting and Cross travel with inverter control for smooth operation.

Long Hoist Life

Constructed of durable components such as the hoist frame, wheels, rope drum, wire rope, gearbox and more, the SB hoist is designed for a long service life. The single‑grooved drum has a groove depth of 35% and a four falls single reeving configuration. This reduces the likelihood of rope overwrapping and helps reduce rope wear. CNC/VMC machined components such as the rope drum, wheels, pinions, pulleys and others ensure high quality and a smooth finish.

Safe Operation

Mechanical overload device prevents the hoist from lifting over the rated capacity. Enclosed rope guide ring ensures the rope remains fully seated in the drum groove, preventing rope overlap. Geared limit switch limits top and bottom hook position to prevent the load from hitting the hoist and ensures the minimum number of wire rope safety wraps remain on the drum. Limit switch is directly coupled to the drum for accurate positioning. And designed to meet BIS safety standards

Technology & Options

You can work with confidence knowing that the SB electric wire rope hoist is engineered with advanced features and technology to deliver high performance, reliability, and durability. Designed for long service life and ease of maintenance, it ensures reliable operation even in demanding applications.

Discover more

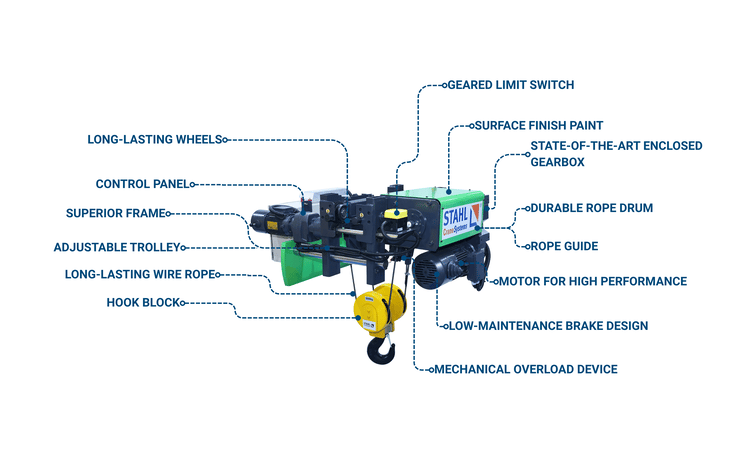

LONG-LASTING WHEELS

The wheels feature high indentation hardness and self-lubricating bearings, ensuring smooth and reliable operation. They are specially designed to run on both tapered and flat beams, providing versatility and long-lasting performance.

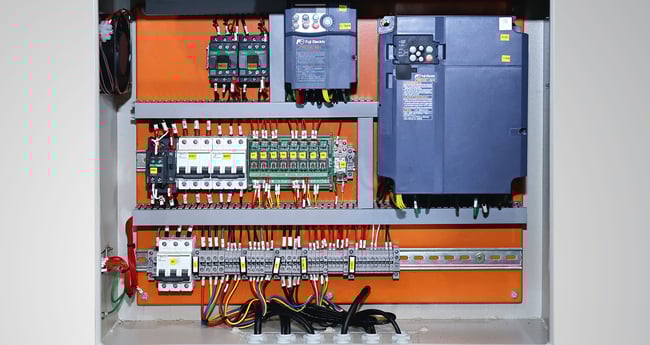

CONTROL PANEL

Larger sized panels enable easier accessibility, IP54 protection.

SUPERIOR FRAME

Rigid tube constructed frame provides excellent performance
on hoist beam.

ADJUSTABLE TROLLEY

The design allows for quick and easy beam assembly.

LONG-LASTING WIRE ROPE

The wire rope is highly flexible and features a long service life.

HOOK BLOCK

Robust bottom hook block with low-headroom design for use in tight spaces.

GEARED LIMIT SWITCH

Ensures safe operation within maximum limits of the hoist with 4 maintained positions. Available as an option: Travel limit switch and hook-operated limit switch.

SURFACE FINISH PAINT

High-quality primer and top coats available standard.

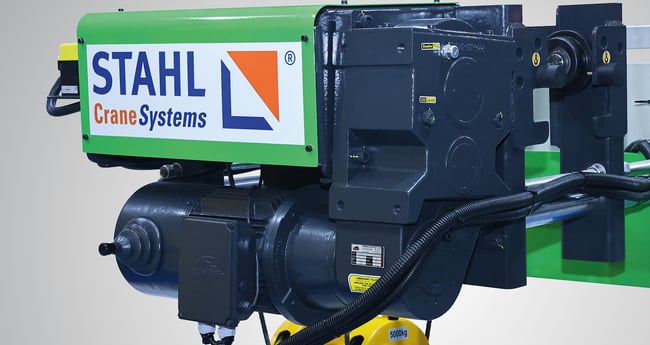

STATE-OF-THE-ART ENCLOSED GEARBOX

The hardened and precision-ground helical gears are permanently immersed in synthetic oil, ensuring smooth, quiet operation and long service life. An oil level indicator comes as standard, while the enclosed housing provides maximum accuracy and stability. Gearbox breathers prevent overpressure and oil leakage, ensuring reliable performance.

DURABLE ROPE DRUM

Fine-machined rope drum to reduce rope wear. The groove is machined in CNC with high accuracy and depth as per IS standards to ensure correct rope positioning.

ROPE GUIDE

High-resistance, Rugged Cast Iron rope guide encircles entire drum and is suitable for high-temperature environments.

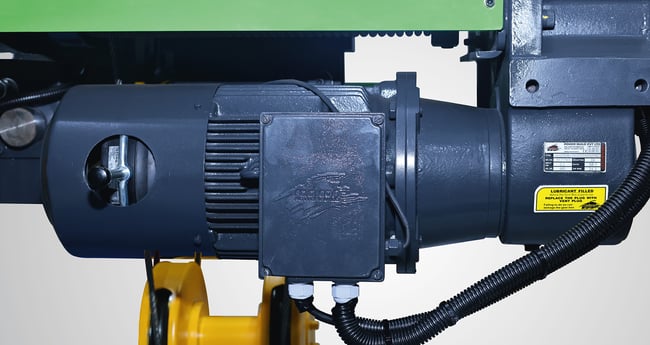

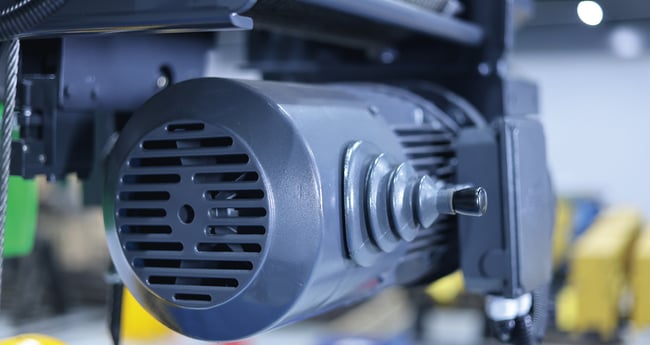

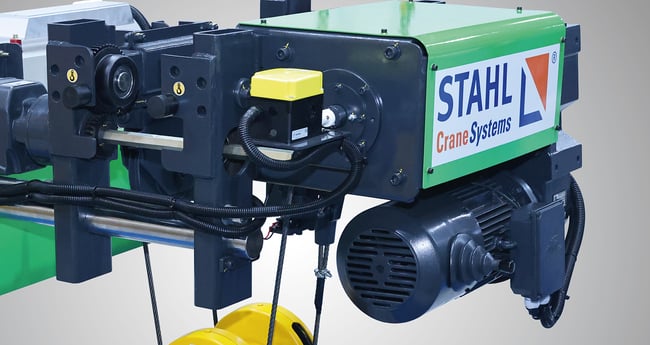

MOTOR FOR HIGH PERFORMANCE

The hoist ensures safe and reliable lifting with high enclosure protection for harsh environments. Its IEC-framed motor, positioned outside the rope drum, allows efficient cooling, easy maintenance, and simple replacement, all within an IP55-rated design.

LOW-MAINTENANCE BRAKE DESIGN

The oversized, heavy-duty brake requires no adjustment and is easily accessible for maintenance and inspection. Housed in a TEFC fan-cooled enclosure with an IP55 rating, it delivers reliable performance.

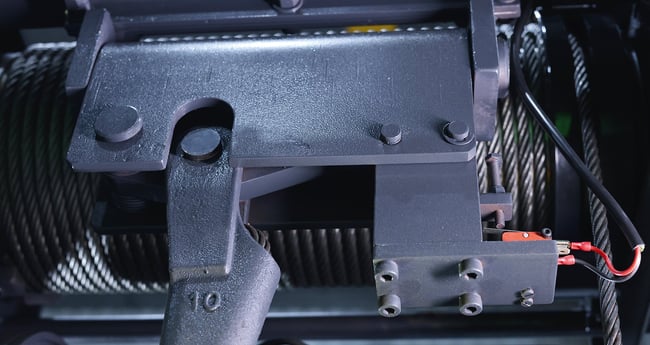

MECHANICAL OVERLOAD DEVICE

Prevents the hoist from lifting over the rated capacity.

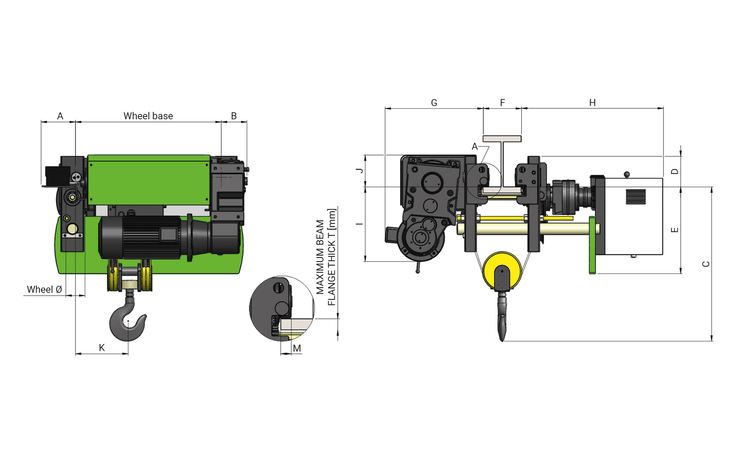

Design & Dimensions

This hoist is available in both monorail and crab configurations, with capacities
of 3.2, 5 and 10 tons and a lifting height of 7 and 12 meters. Ideal for use in any
application, this hoist is also suitable for areas with space constraints. Featuring
a compact, low-headroom design, this hoist has a low-headroom monorail trolley
that can be easily adjusted for different beam sizes. The very compact crab trolley
design is suitable for achieving maximum lifting height in limited space.

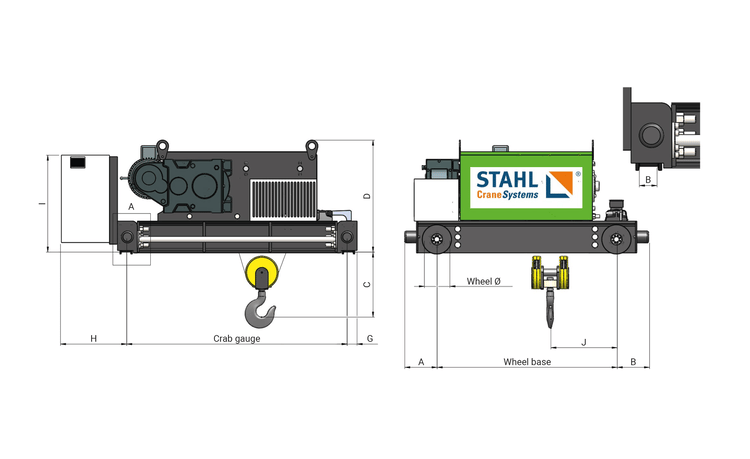

CRAB TROLLEY	HDL	Crab Gauge	Wheel base	Wheel Ø	A	B	D	E	G	H	I	J	C
SB-HD05	7 m	1,000	940	125	175	175	580	55	53	350	610	360	470
SB-HD05	12 m	1,000	1,280	125	175	175	580	55	53	350	610	360	470
SB-HD10	7 m	1,400	1,130	150	203	203	705	55	63	416	610	415	690
SB-HD10	12 m	1,400	1,280	125	203	203	705	55	63	416	610	415	690

Load capacity [kg]	HDL	Model Number	Hoist Speed [m/min]	Hoist Motor [kw]	Trolley Speed [m/min]	CT Motor [kw]	FEM	ISO
5,000	7 m	SB-HD05L1M5F4R1S4T20	4/1	5.2	20/5	0.37	2m	M5
5,000	12 m	SB-HD05L2M5F4R1S4T20	4/1	5.2	20/5	0.37	2m	M5
10,000	7 m	SB-HD10L1M5F4R1S4T20	4/1	9.2	20/5	0.55	2m	M5
10,000	12 m	SB-HD10L2M5F4R1S4T20	4/1	9.2	20/5	0.55	2m	M5

MONORAIL HOIST	HDL	Wheel base	Wheel Ø	A	B	D	E	G	H	I	J	K	M
SB-HS03	7 m	786	100	185	145	160	465	490	750	340	167	200	31
SB-HS03	12 m	1,156	100	185	145	160	465	490	750	340	167	200	31
SB-HS05	7 m	786	100	185	145	160	465	520	750	390	167	220	31
SB-HS05	12 m	1,156	100	185	145	160	465	520	750	390	167	220	31
SB-HS10	7 m	786	160	180	180	270	515	630	800	325	345	240	31
SB-HS10	12 m	1,156	160	180	180	270	515	630	800	325	345	240	31

HOIST Model	C Dimensions [mm]
SB-HS03	750	785	820	855	890	925	960
SB-HS05	820	850	880	910	940	970	1,000
SB-HS10	950	980	1,010	1,040	1,070	1,100	1,130
Flange width [F]	200	250	300	350	400	450	500

Load capacity [kg]	HDL	Model Number	Hoist Speed [m/min]	Hoist Motor [kw]	Trolley Speed [m/min]	CT Motor [kw]	FEM	ISO
3,200	7 m	SB-HS03L1M5F4R1S4T20	4/1	2.8	20/5	0.37	2m	M5
3,200	12 m	SB-HS03L2M5F4R1S4T20	4/1	2.8	20/5	0.37	2m	M5
5,000	7 m	SB-HS05L1M5F4R1S4T20	4/1	5.2	20/5	0.55	2m	M5
5,000	12 m	SB-HS05L2M5F4R1S4T20	4/1	5.2	20/5	0.55	2m	M5
10,000	7 m	SB-HS10L1M5F4R1S4T20	4/1	9.2	20/5	0.75	2m	M5
10,000	12 m	SB-HS10L2M5F4R1S4T20	4/1	9.2	20/5	0.75	2m	M5

Documents

Brochures & Catalogs

[Brochure] Brochure - SB-Electric wire hoist (English)

SB Electric Wire Rope Hoist
