Mondel 200S range of industrial shoe brakes are suitable for a variety of industrial and mining applications and environments including cranes, conveyors, moving bridges, fans, winches, turn-tables, overhead doors, lock gates, strip processing equipment, shiploaders, ore bridges, deck machinery, machine tools and many other types of machinery which require reliable stopping and holding.

Features and Benefits

Magnetek® 200S Industrial Brakes

The 200S Range brake has a compact size with low shaft height, making it easy to retrofit into existing installations. Designed with a minimum number of moving parts, these brakes provide long service life with reduced maintenance and downtime. Learn more about this versatile brake.

Whether you are installing new equipment or updating existing systems, Magnetek has a heavy-duty, cost-effective brake for your application. Our brakes are designed with high-performance, reliability and safety in mind.

Designed with a minimum number of moving parts, these brakes provide long service life with reduced maintenance and downtime. 200S General Purpose Industrial Brakes are ideal for high-duty cycle industrial applications such as overhead cranes, conveyors, hoists, bridges, turntables, lock gates, and more.

Features

  • Spring-applied and electrically released – AC thruster or DC coil
  • Easy retrofitting
  • Compact design, low shaft height ideal for cranes with low headroom
  • Easy to install, adjust, and maintain
  • Fast response times: standard units 2,000 cycles per hour
  • Standard stainless steel pivot pins for longer service
  • Highly reliable, continuous duty EMG ELDRO thruster used to release brake
  • Floor and wall mounting
  • Fabricated steel plate and cast steel construction
  • Auto Equalization: automatically equalizes and maintains running shoe clearance and maintains proper running, which provides balanced braking and equal brake pad wear
  • Environmentally safe, non-asbestos REACH-compliant brake linings offer a constant coefficient of friction over the normal operation temperature range

Options

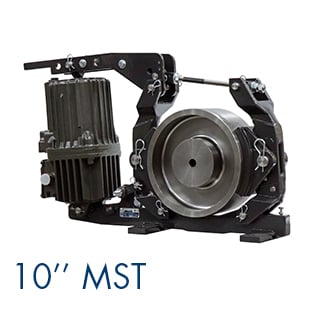

Type MST – 3 PH. AC THRUSTER

  • Mondel standard footprint to provide lowest shaft height and headroom possible
  • Continuously rated service < 70°C
  • Standard supplies: 230/460, 208/575 VAC, 3 phase, 60 Hz
  • Four adjustable configurations when built-in spring is used (ST internal spring brake type)

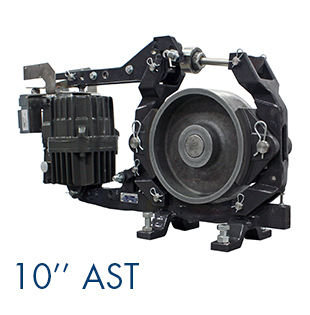

Type AST – 3 PH. AC THRUSTER

  • AIST/AISE-NEMA: footprint, drum diameter, and torque requirements
  • Continuously rated service < 70°C
  • Standard supplies: 230/460, 208/575 VAC, 3 phase, 60 Hz
  • Four adjustable configurations when built-in spring is used (ST internal spring brake type)

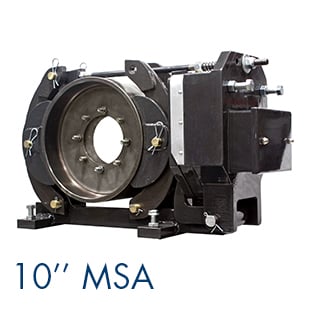

Type MSA – DC Magnet

  • Mondel standard footprint to provide lowest shaft height and headroom possible
  • Magnet coils encapsulated in epoxy resin class F insulation
  • Shunt: 12V through 550 VDC
  • Series: 4A through 300A

Options:

  • Class H Insulation
  • Forcing rectifiers: fast response for AC crane hoists
  • Constant potential rectifiers: for AC crane bridges, trolleys, etc.
  • Terminal box rectifiers: special applications – consult factory

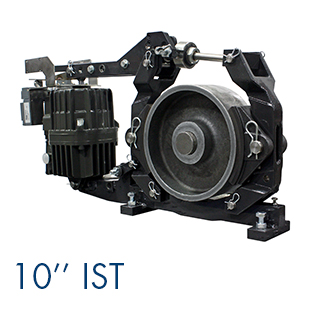

Type IST – 3 PH. AC THRUSTER

  • DIN 15435 Part 1: footprint, drum diameter, and torque requirements
  • DIN 15435 Part 2: brake shoe to fit DIN 15431 brake drums
  • Continuously rated service < 70°C
  • Standard supplies: 230/460, 208/575 VAC, and 400/690 VAC, 3 phase, 50 Hz
  • Four adjustable configurations when built-in spring is used (ST internal spring brake type)
