Unified ETA-3 Enclosed Track
Unified ETA-3 Enclosed Track

Features and Benefits

Ideal for light-duty use, the Unified ETA-3 Series Rail can be used on its own or together with existing large cranes in a variety of automotive, aerospace, and heavy-manufacturing applications.

With capacities up to 442 lbs., ETA-3 can be used as a tool rail for weld guns, light fixtures, weld curtains, spring balancers, and work benches. The new profile can also be attached to the mainline rail system as a festoon rail. This allows festooning trolleys and filter/regulator/lubrication (FRL) equipment to move on a separate rail and helps extend bridge and runway distances.

Improved Ergonomics
Designed to reduce strain and fatigue, ETA-3 ensures ease of movement with a lightweight aluminum trolley body, precision bearing load wheels, self-lubricating bronze bushings, dual bearing guide rollers, and integrated rubber bumpers.

Complete Solutions
Use ETA-3 rails alongisde our full suite of ETA rail profiles on bridges and runways to create the ideal system for picking and transporting material.

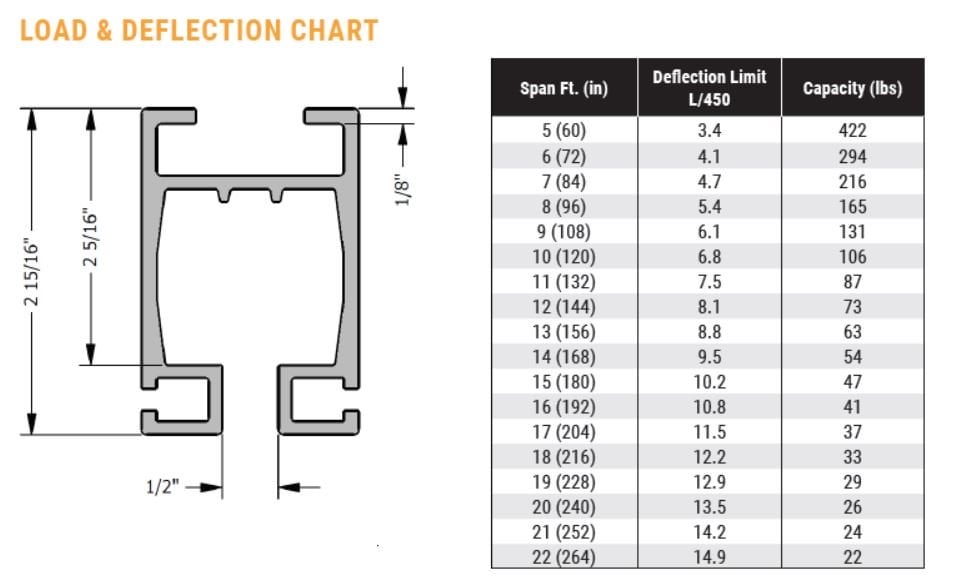

Specifications
Capacities up to 442 lbs.
Length up to 25'-0"
Extruded from high-grade 6005 -T5 aluminum

Unified ETA-3 Enclosed Track

Part # 20131

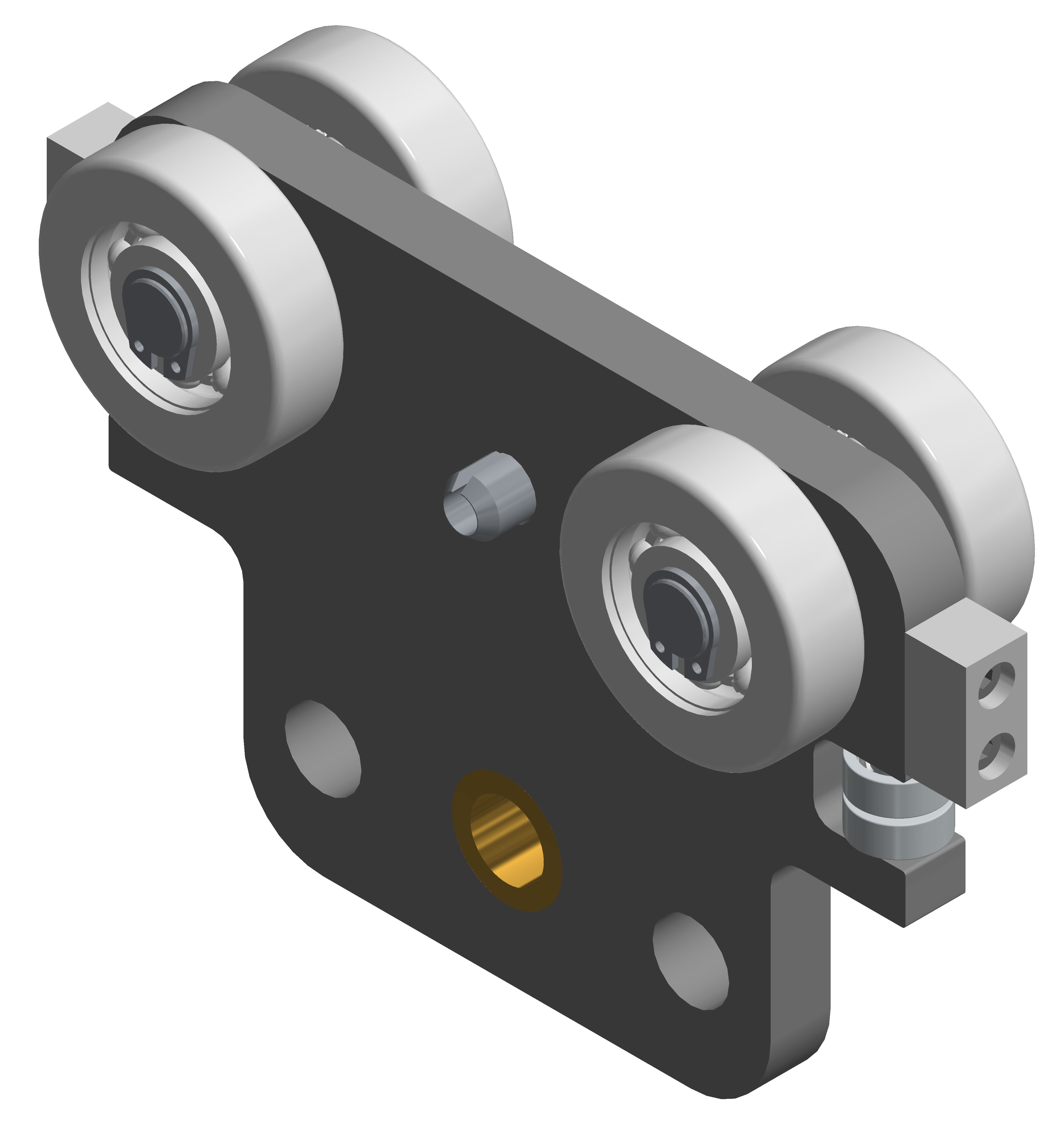

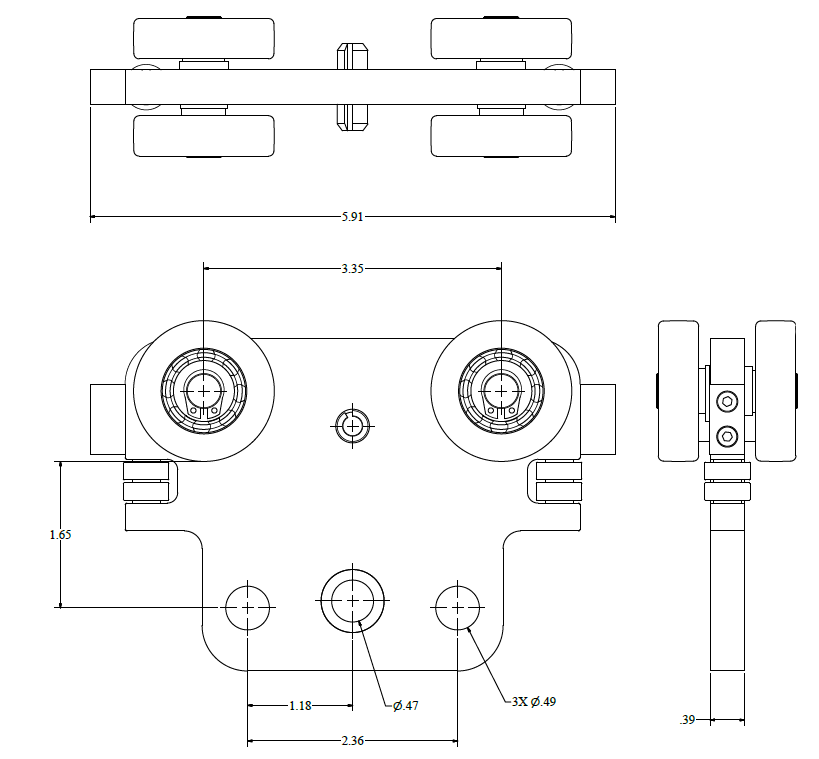

4 Wheel Trolley
Dimensions

Part # 20132

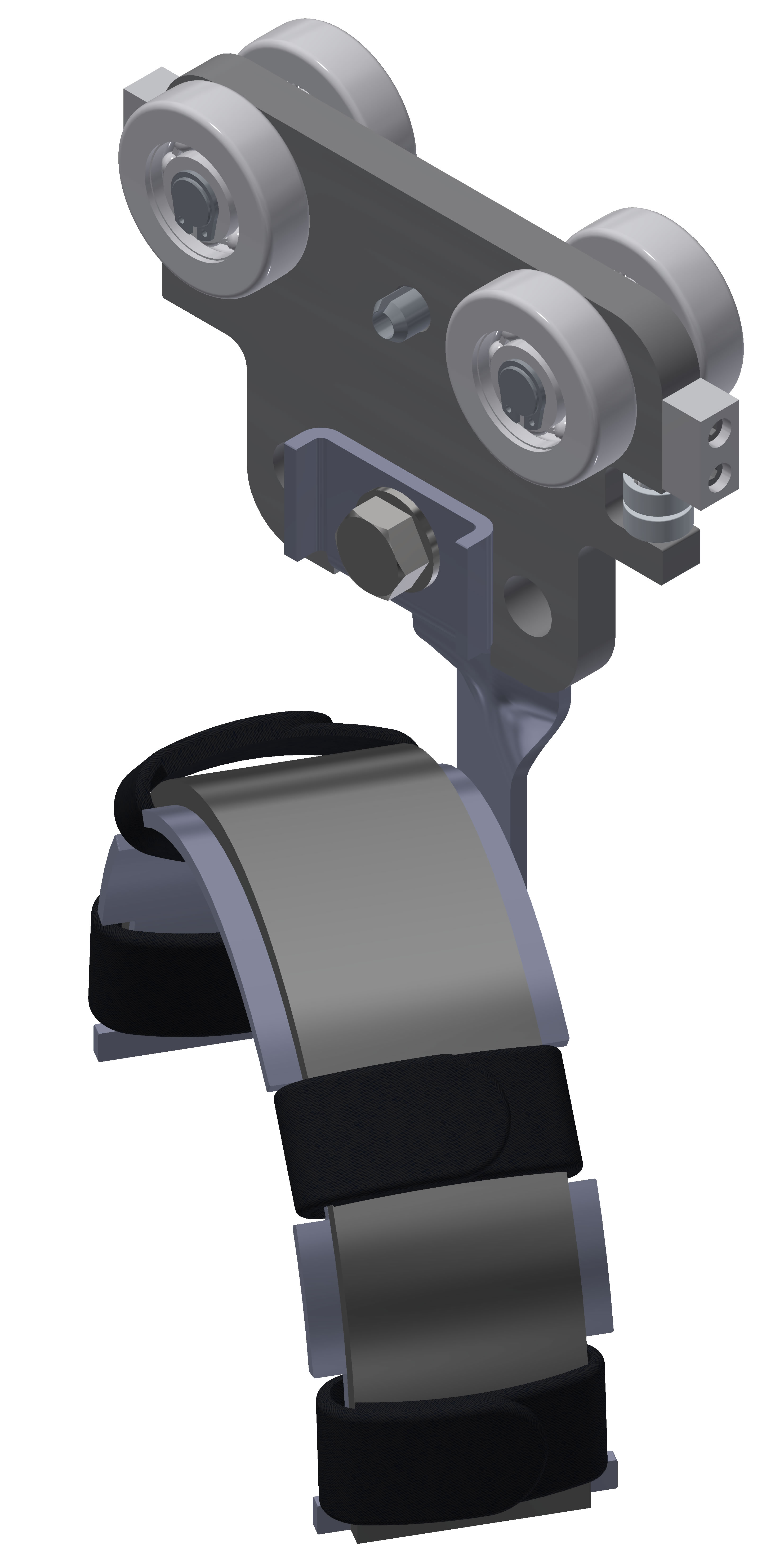

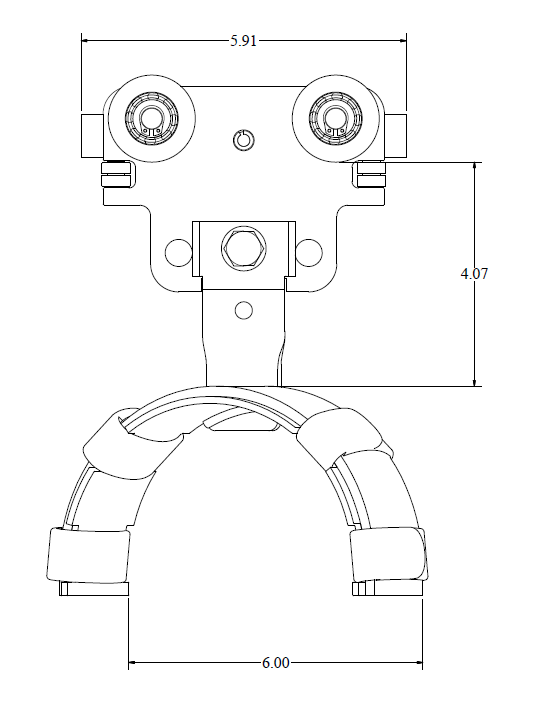

Cable Saddle Trolley
Dimensions

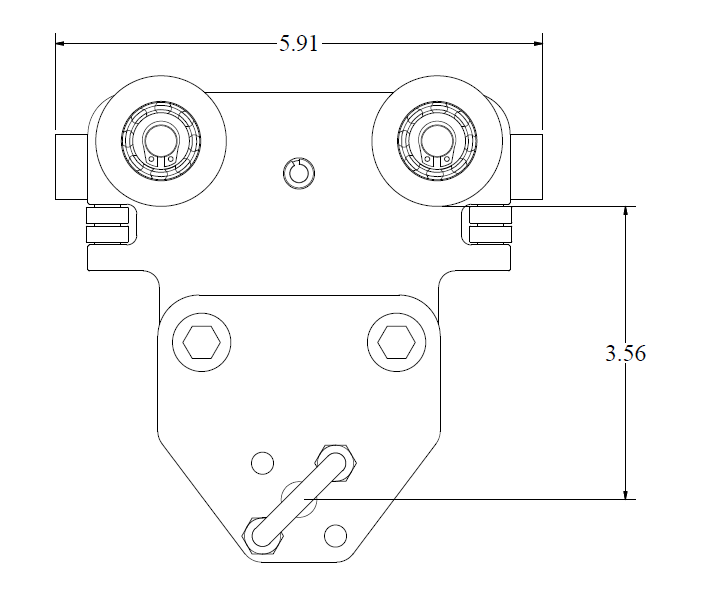

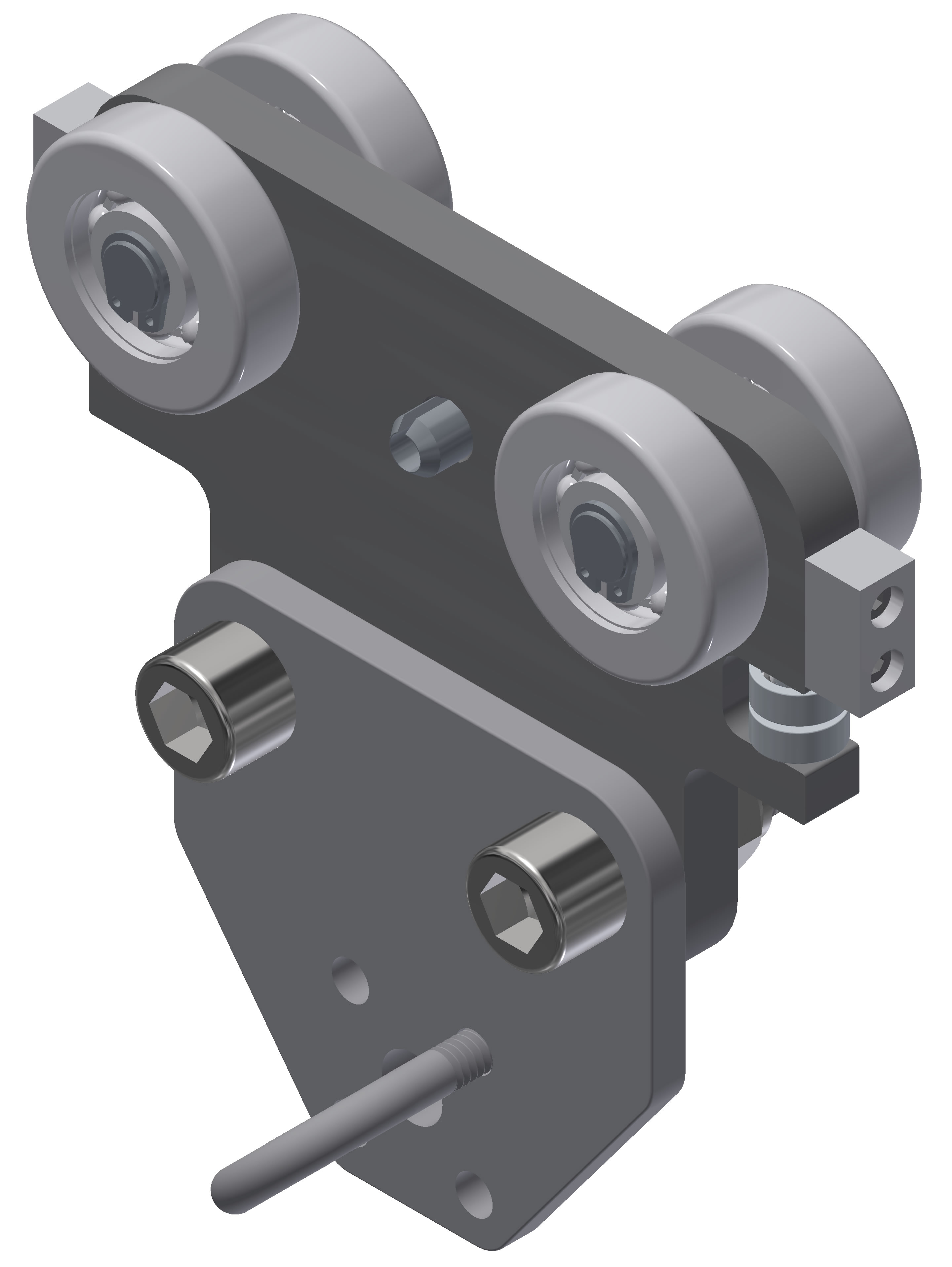

Part # 20134

Air Hose Trolley
Dimensions

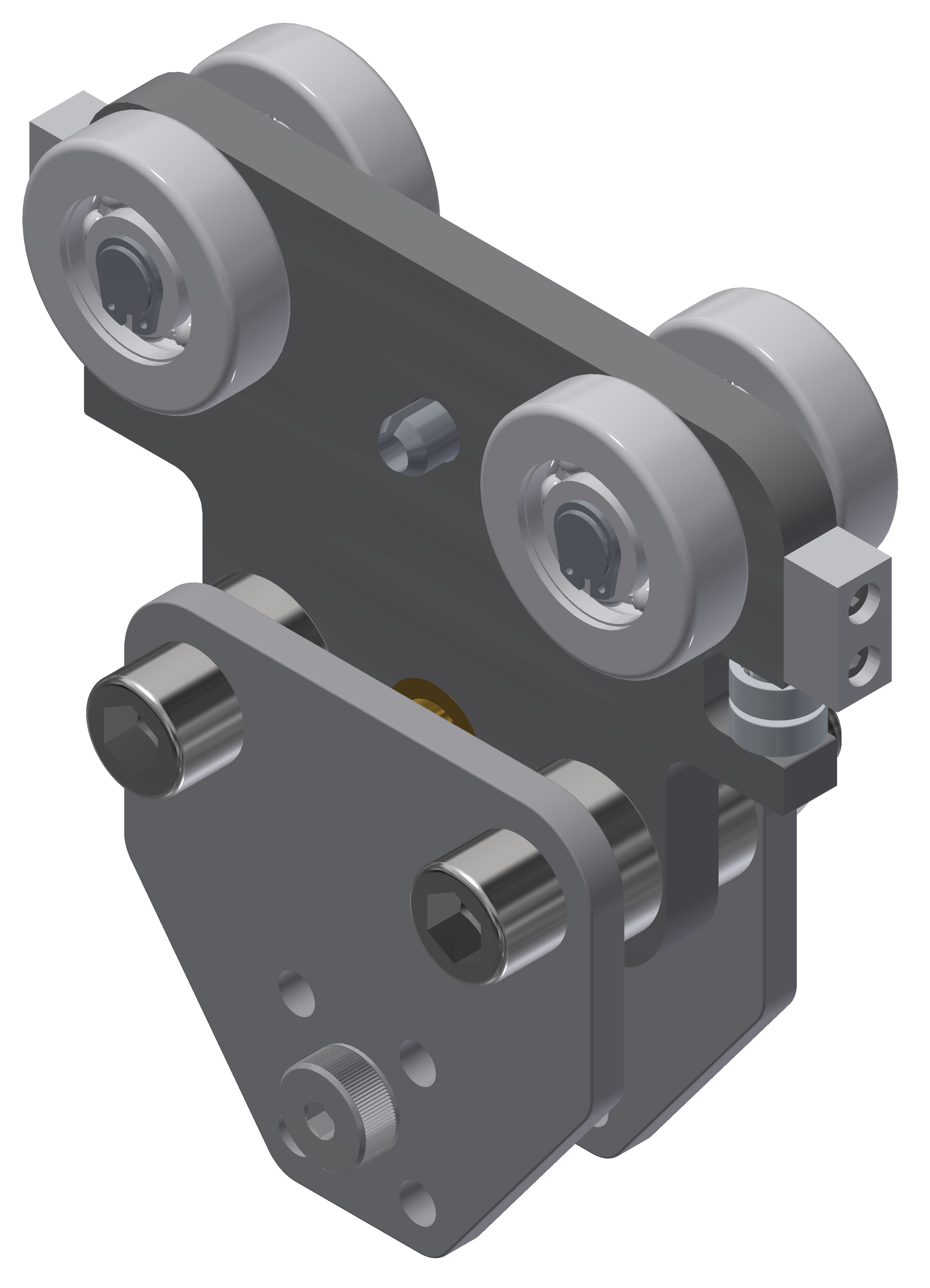

Part # 20141

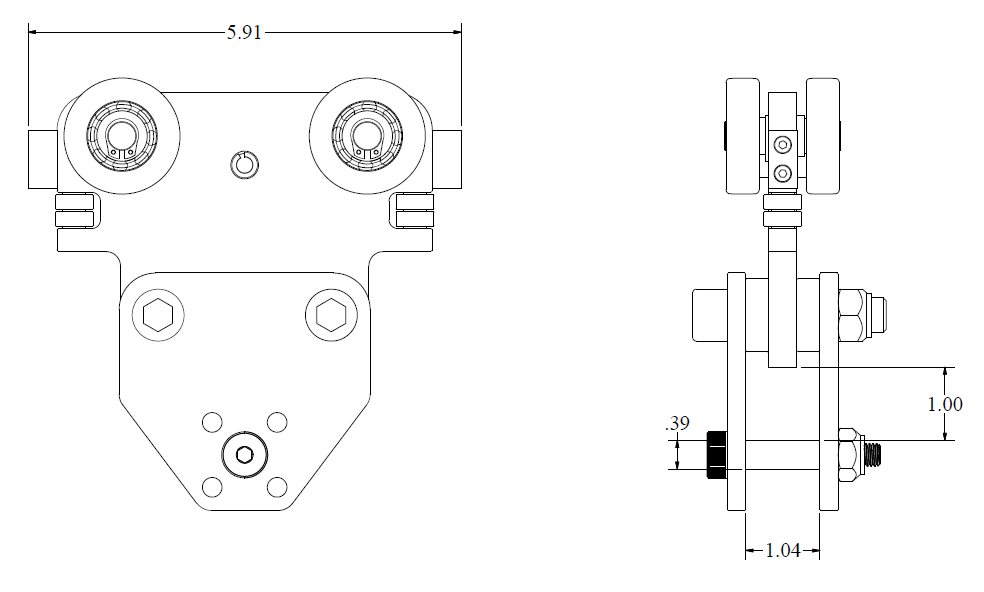

Load Trolley
Dimensions

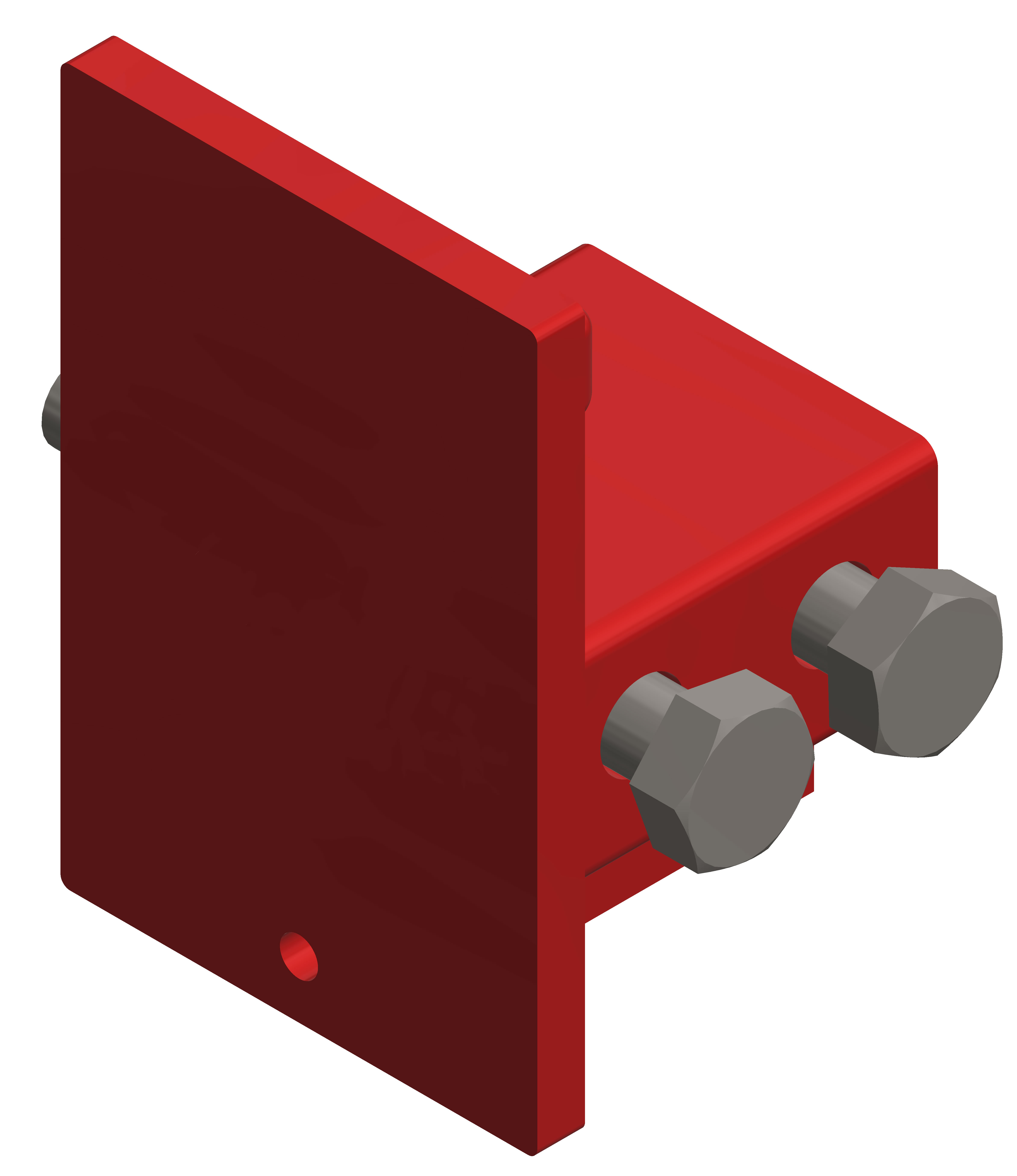

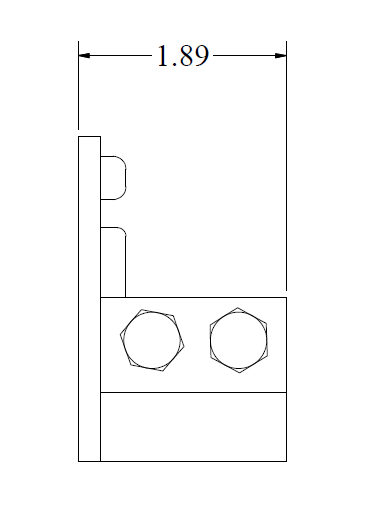

Part # 20133

Single End Stop
Dimensions

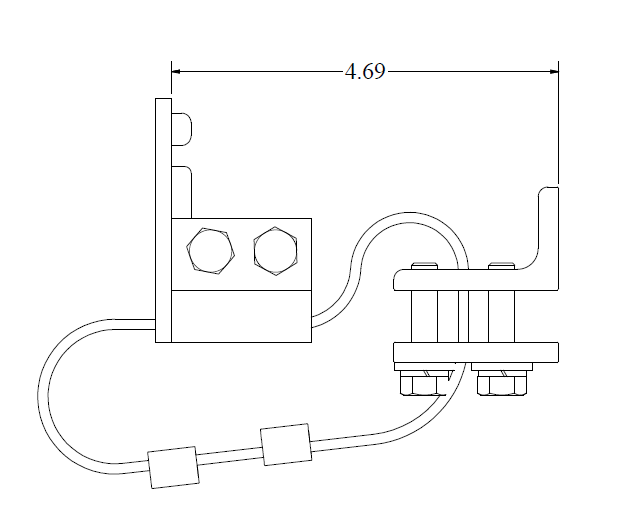

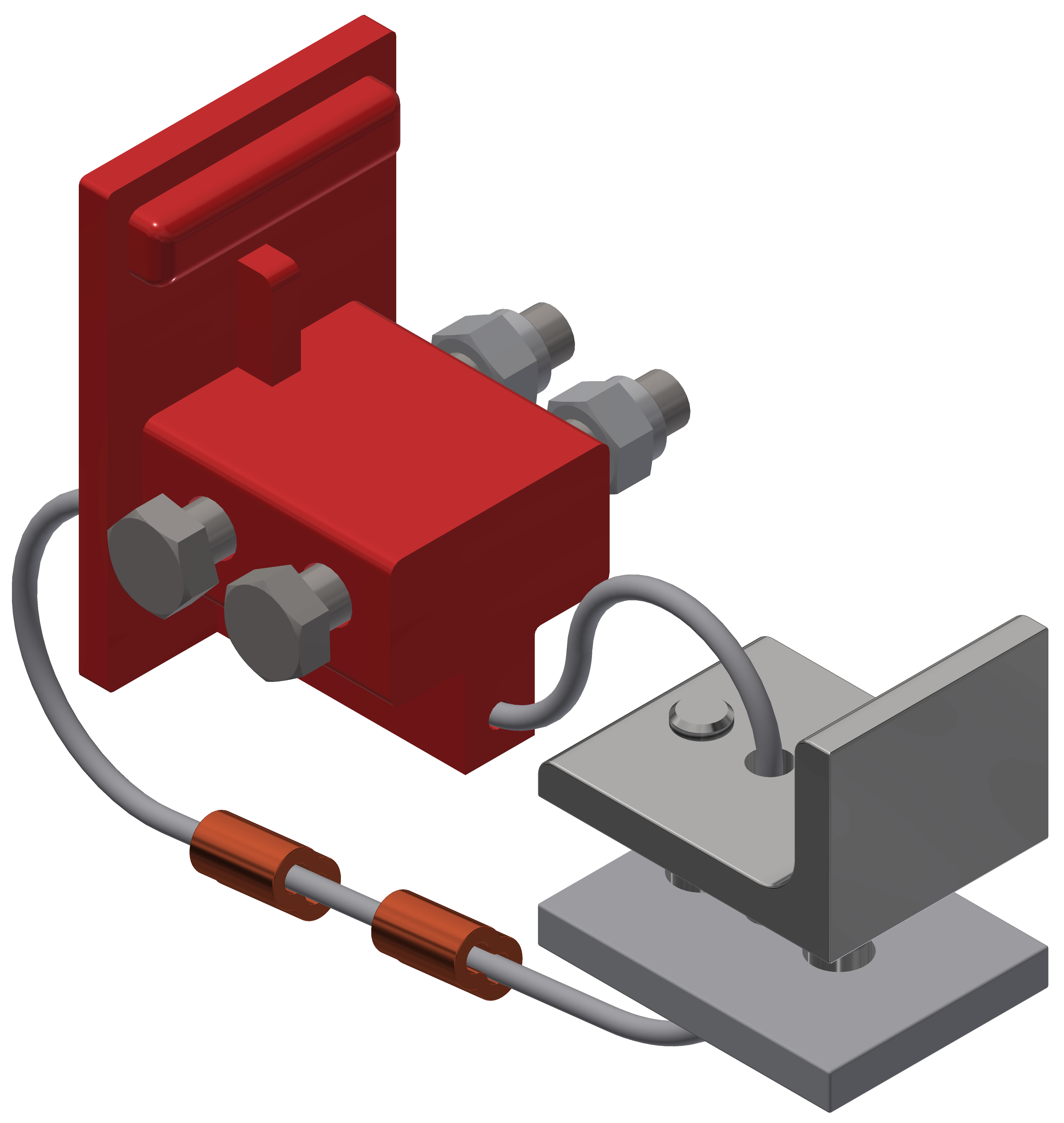

Part # 79585

Dual End Stop
Dimensions

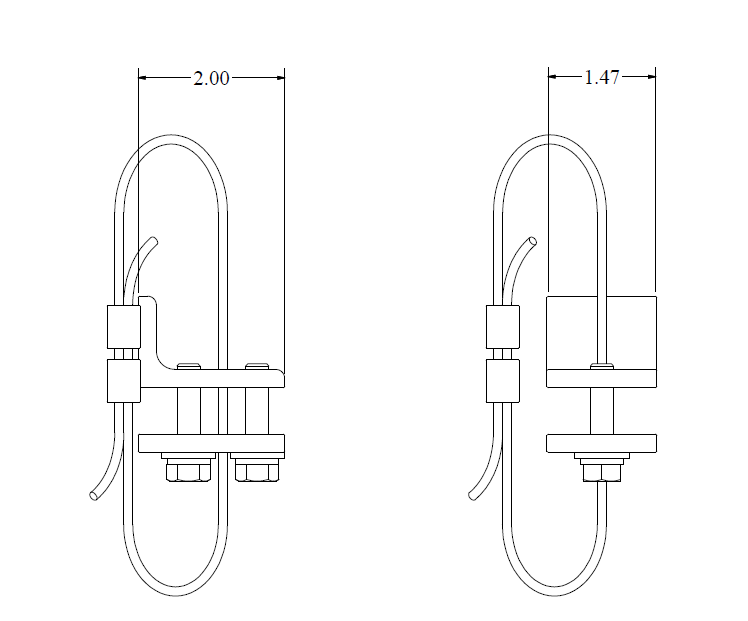

Part # 20135

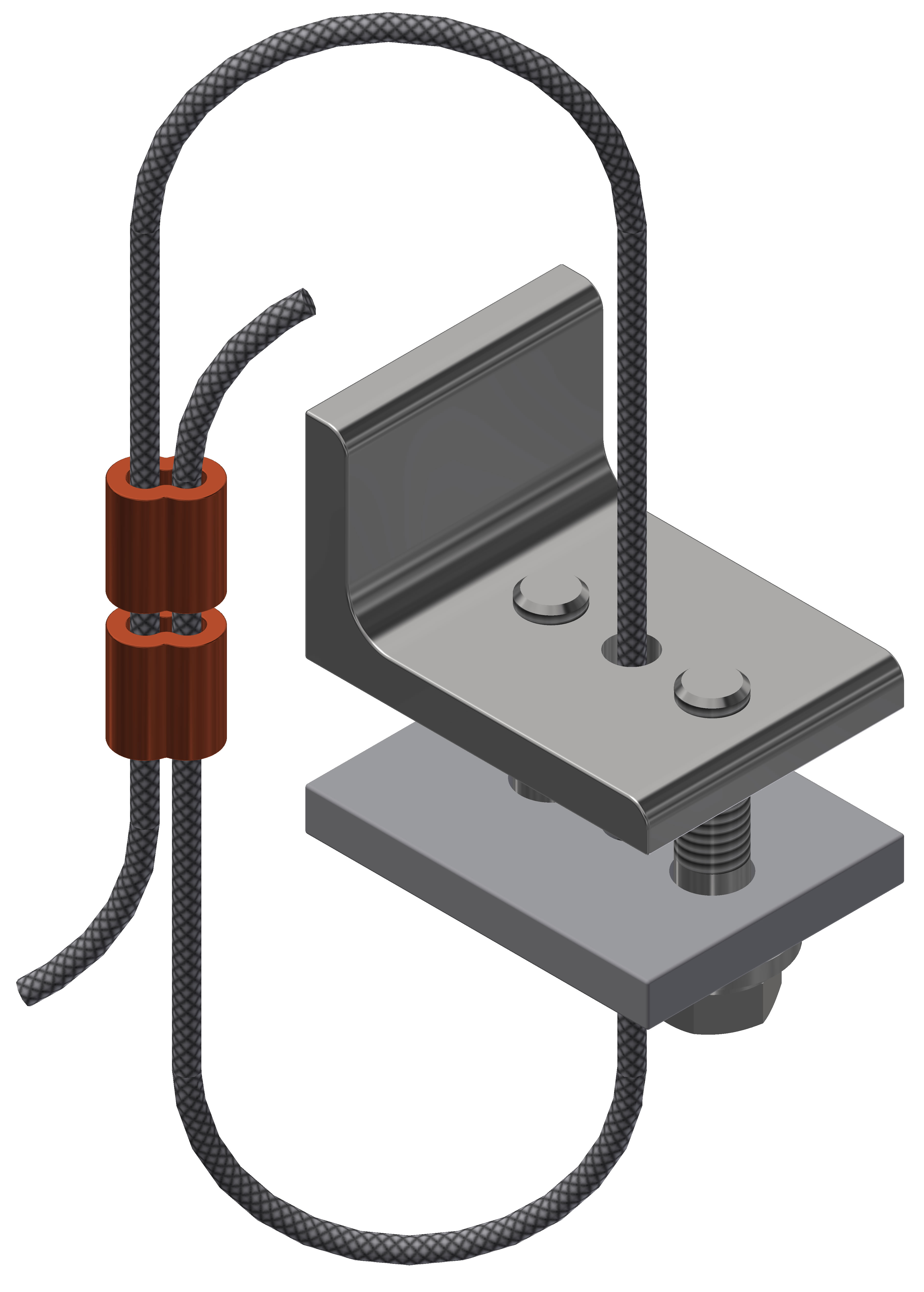

Mid Stop
Dimensions

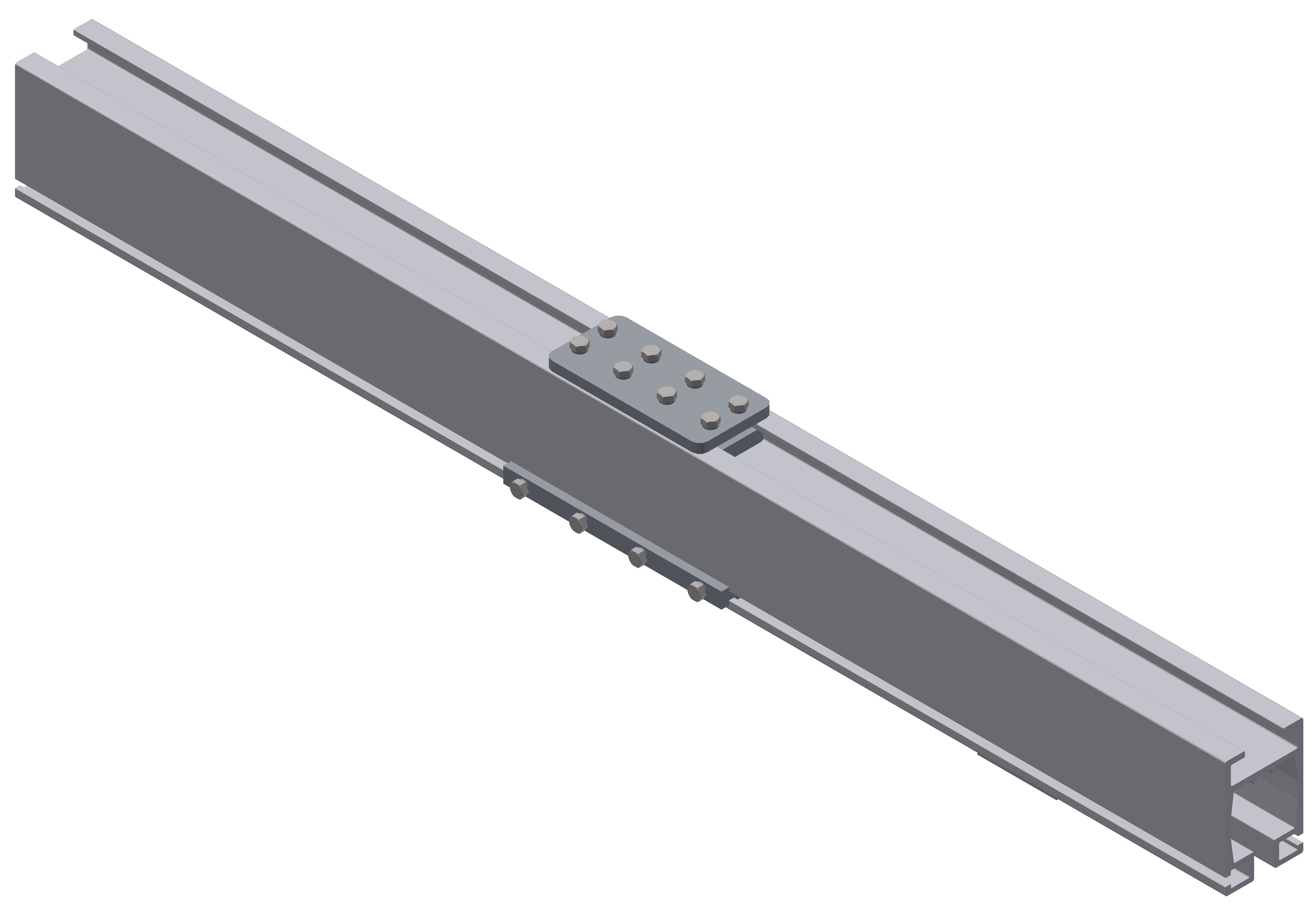

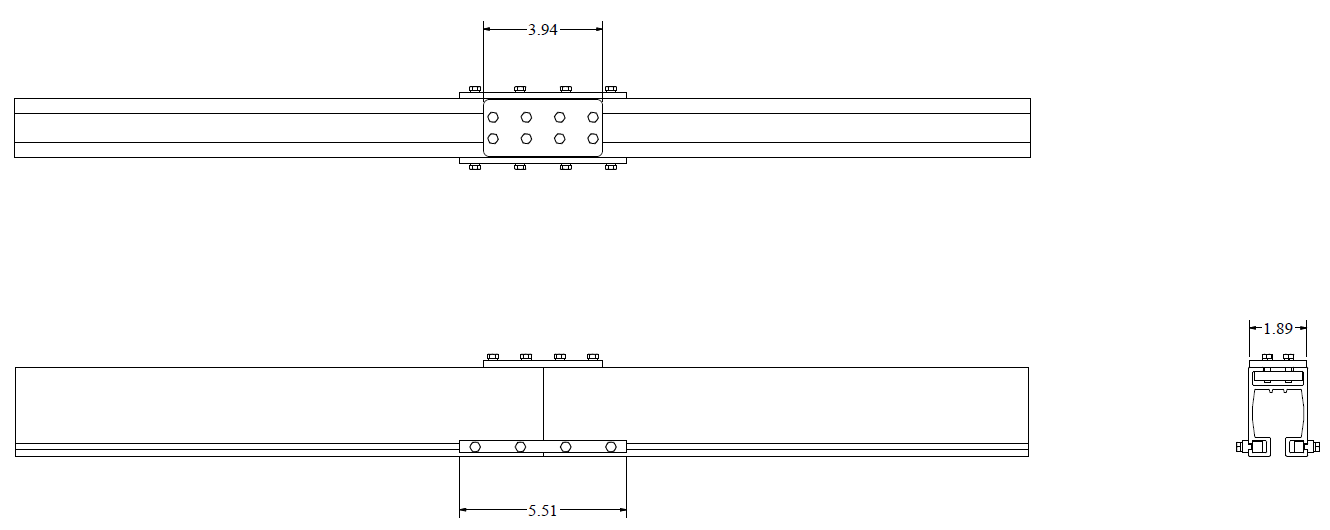

Part # 20142

Splice Kit
Dimensions

Part # 20139

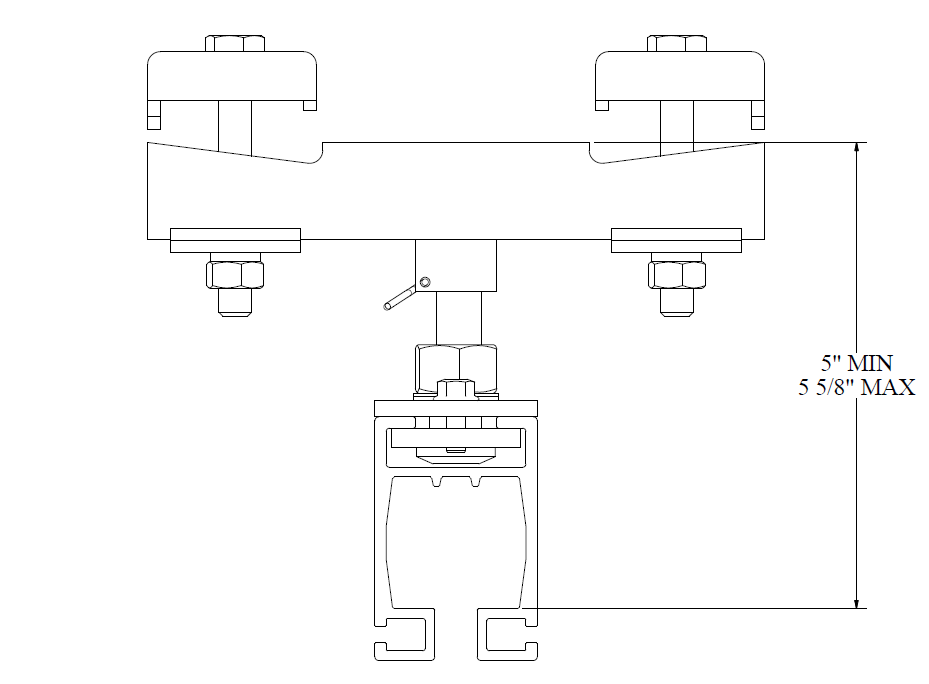

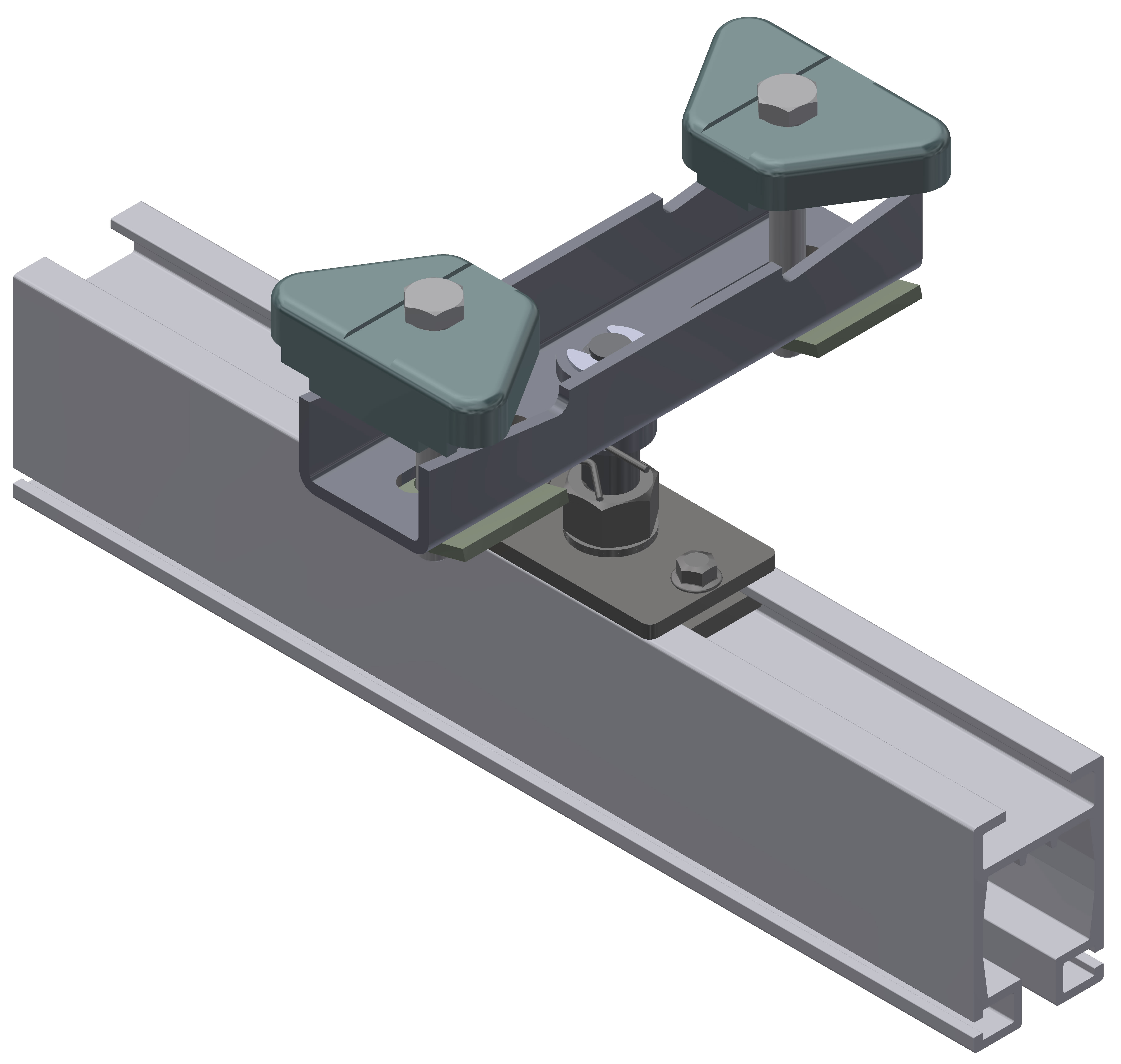

Adjustable Hanger
Dimensions

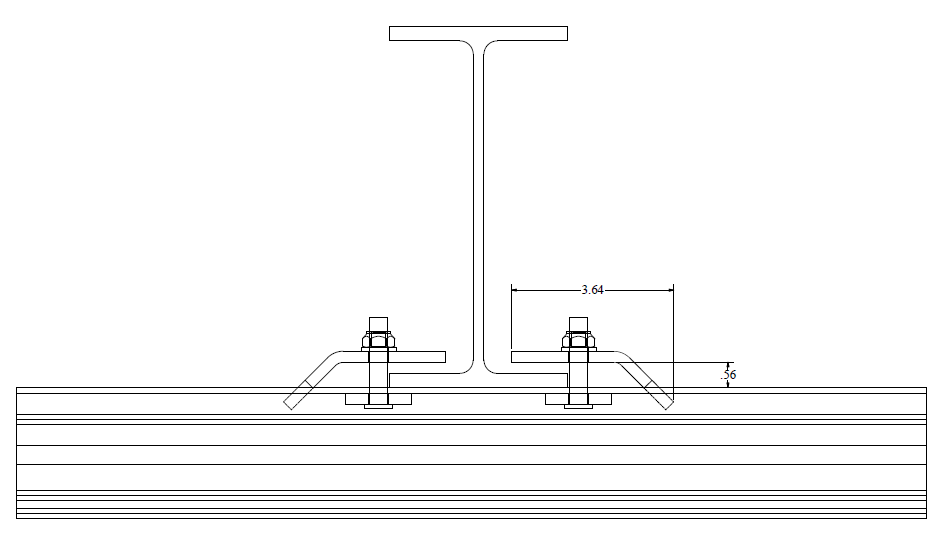

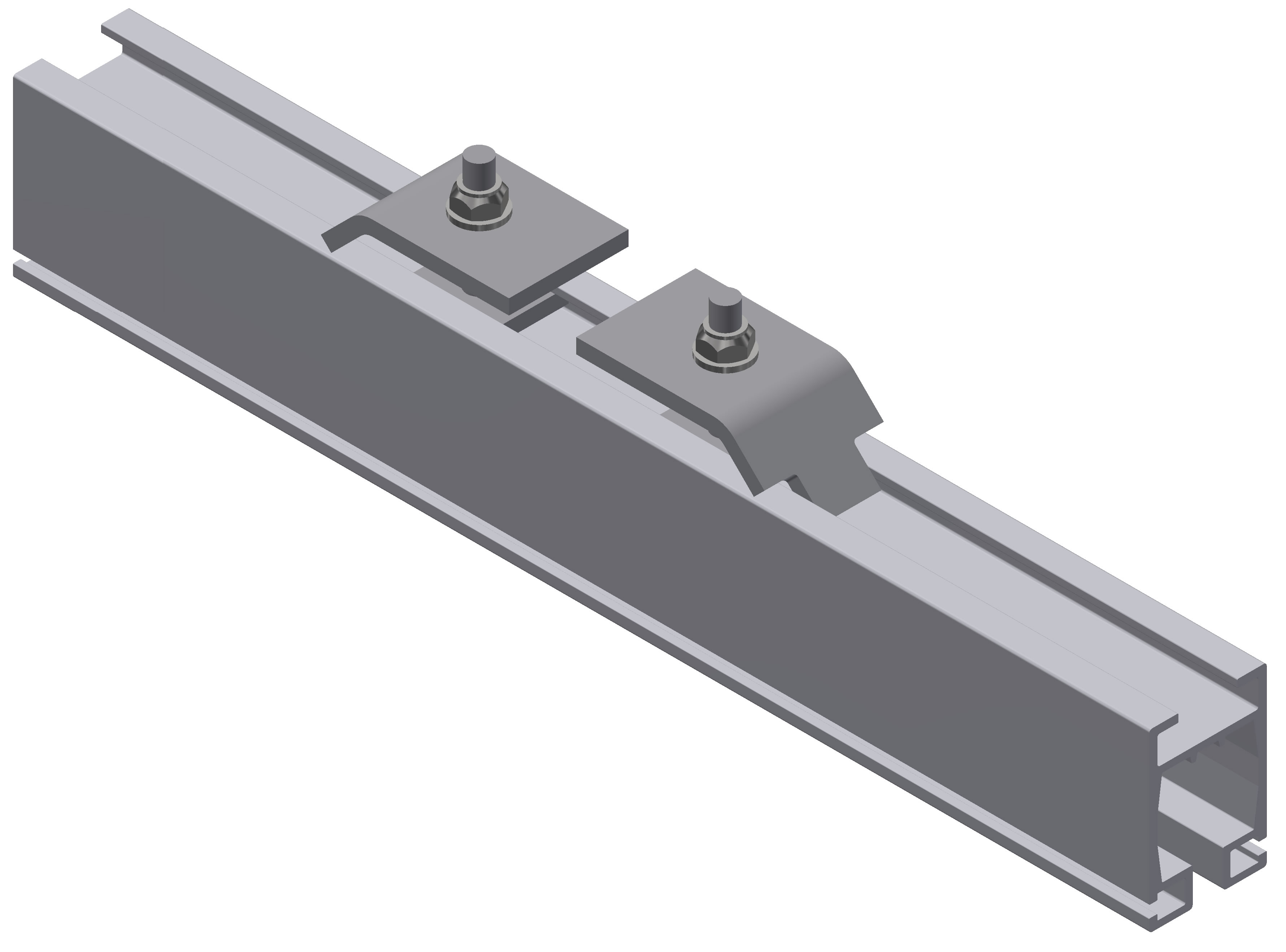

Part # 27075

Rigid Mount Hanger
HANGERS TO BE USED ON W-BEAMS ONLY
Dimensions

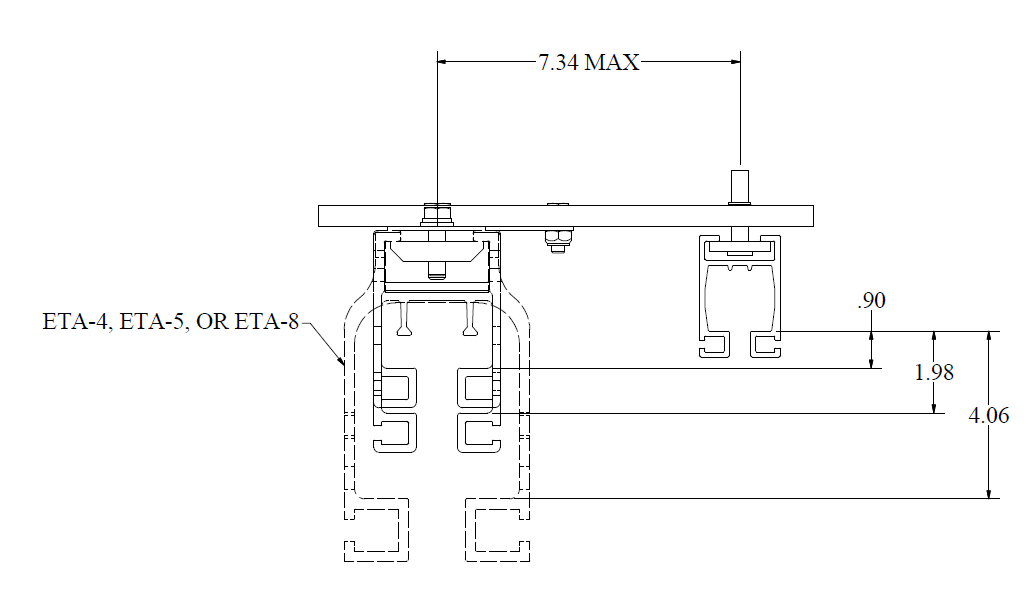

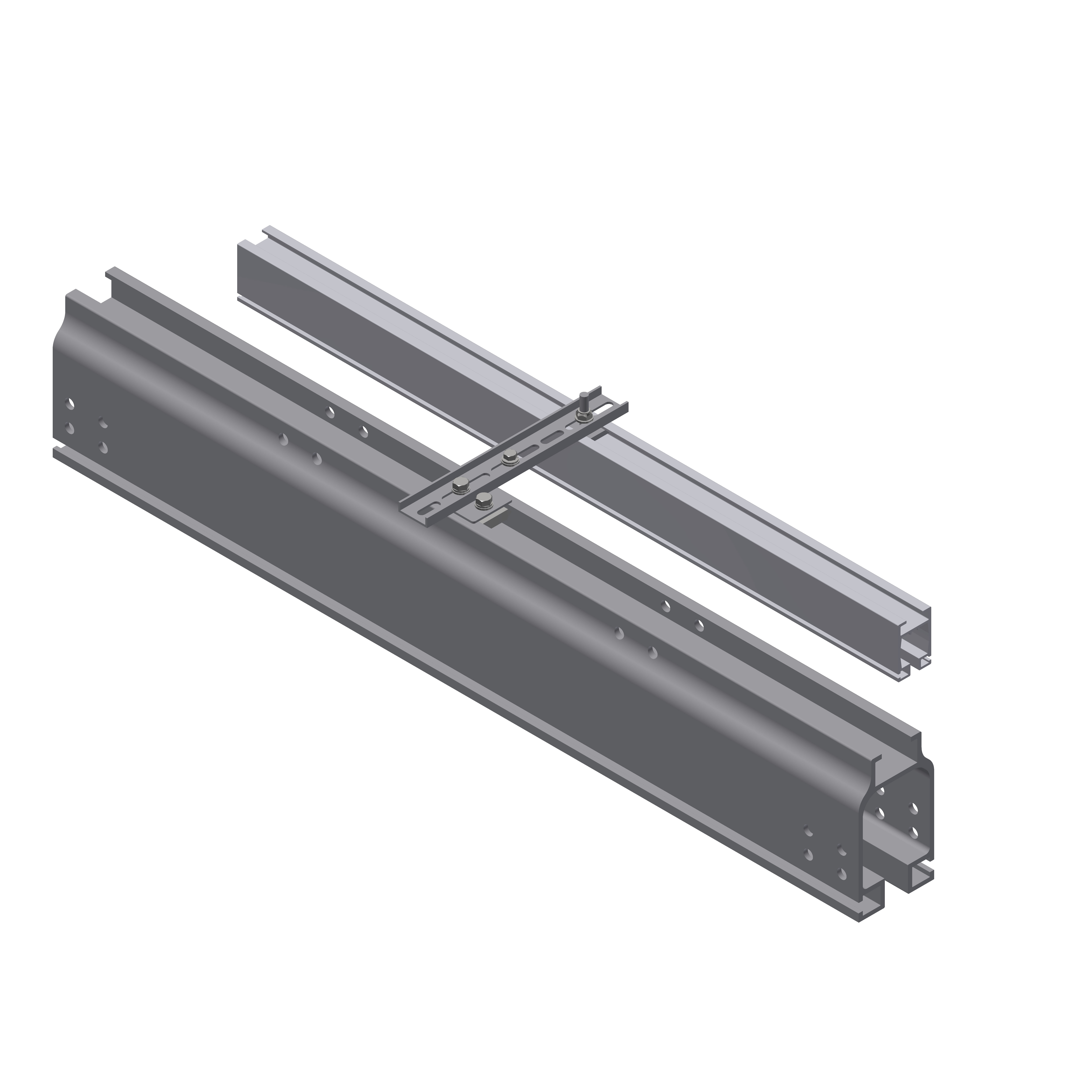

Part # 79603

ETA Mounting Hanger for ETA-4/5/8
Dimensions
